PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System
PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System
PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System
PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System
PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System
PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System
Specifications
Brand Name :
LB
Model Number :
LB-63W
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
Negotiable（USD EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Screw Design :
conical twin screw
Plastic Processed :
PE, PP, HDPE, HDPE/PP, PE/PP, LDPE
Packages :
Film and boxes
Cutting Method :
Planetary Cutter
Cutter :
Saw cutter
Loader :
screw loader
Application :
WATER SUPPLY PIPE
Pipe Diameter Range :
32-1600mm
Description
PVC Pipe Extrusion Line | Automated Control Vacuum Cooling System

PRODUCTION PROCESS FLOW

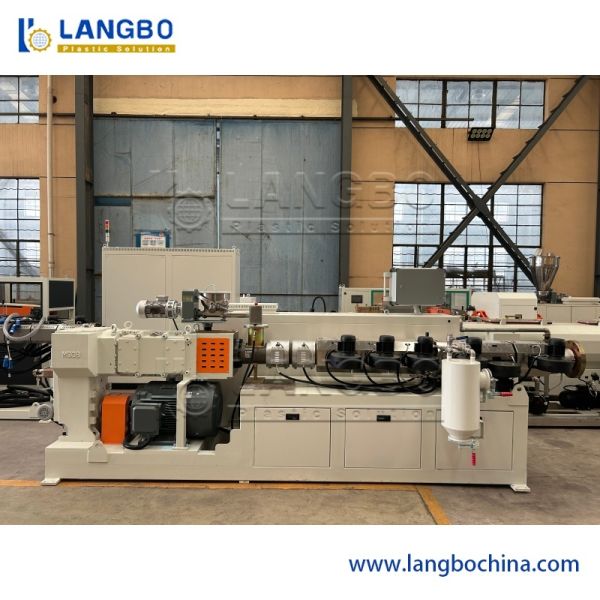

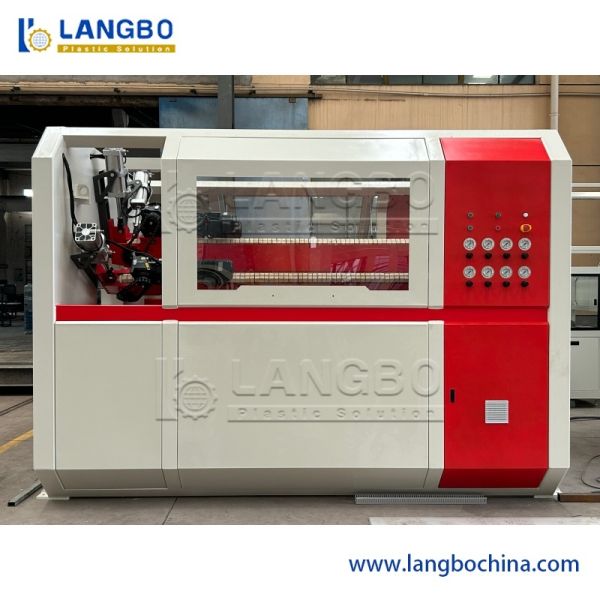

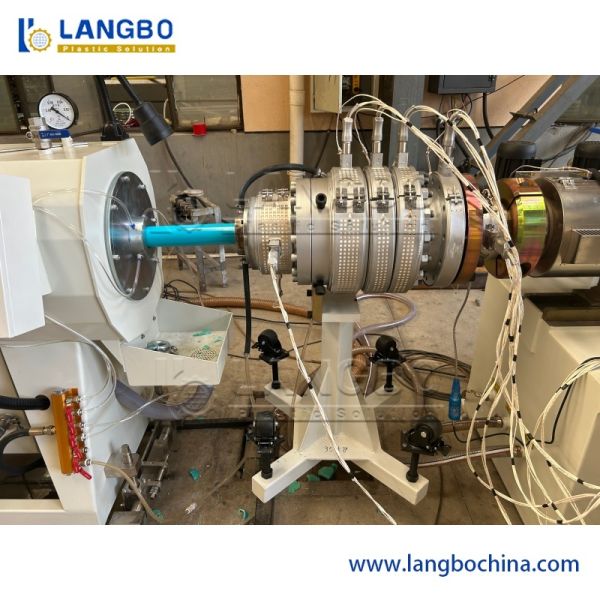

The first step of pipe production is the preparation of raw material. Customers can mix the PVC powder with other additives by themself. The mixture will be feeded into extruder. The material will be plasticized in the extruder and then be extruded into the mould. The material is shaped by mould and goes out with the pipe looking. The pipe extruded from the mould is hot and soft. The pipe with unstable shape will be calibrated and cooled by vacuum sleeve in the vacuum calibration tank. And then the pipe goes into the cooling tank for a further cooling. Haul off unit stands next to the cooling tank and take the pipe away from the extruder. According to the defined length, the pipe will be cut and then packed for transport.


Following ADVANTAGES are the reasons, why PVC pipe so widely applied.

Corrosion Resistant

With self-extinguishing and flame retardant;

Excellent in anti-aging character

The PVC pipe is light, easy to flaring, bonding, bending, welding.

Installation workload and Processing cost are lower than metal pipe

Good electrical properties of resistance

Recycled and Environment-friendly.

SPECIFICATIONS:
Model Pipe diameter(mm) Extruder Extruder power (kw) Capacity (kg/hr)
LB-32A 16-32(four) SJZ65/132 37AC 250
LB-32B 16-32(four) SJZ80/156 55AC 350
LB-50A 16-50 SJZ45/90 15AC 100
LB-50B 16-50(double) SJZ51/105 18.5AC 150
LB-50C 16-50(double) SJZ65/132 37AC 250
LB-63A 16-63 SJZ51/105 18.5AC 150
LB-63B 16-63(double) SJZ65/132 37AC 250
