Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Hot Cold High Speed Turbo Mixer
Specifications
CONTROL :
AUTOMATIC
FEEDING :
AUTO-PNEUMATIC
Model Number :
LB-800/2000
Shipping :
By sea
MIXER :
VERTICAL/HORIZONTAL COMBINATION
NOTOR POWER :
83/110/22KW
Power(W) :
18.5-75kw
Warranty :
2 YEARS
Brand Name :
LB
Certification :
CE, ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD, EUR
Payment Terms :
L/C,T/T
Supply Ability :
10 SET PER MONTH
Delivery Time :
60 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Description
Hot Cold High Speed Turbo Mixer
Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine for PVC pipe, window door profiles, ceiling panel, cable trunking, marble sheet. Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying.
Applications
Production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites.
Key Features
  • All important parts manufactured in-house ensuring quality control
  • Product contact surfaces made of SUS304 or aluminum alloy to prevent contamination
  • High cooling efficiency with short mixing times
  • Easy to clean design with high output capacity
  • Customizable mixing tools for different applications
  • Wear-resistant coating on mixing tools extends service life
  • Comprehensive after-sales service support
Technical Specifications
  • Stainless steel blades with dynamic and static balance refining
  • Double sealing cap with pneumatic start for easy operation
  • Stainless steel cylinder with 8mm wall thickness
  • Temperature or time controlled discharge system
  • ABB inverter for motor start and speed regulation
  • Direct & stable control type with analog display screen
  • Automated manufacturing procedure reduces labor intensity
Model Specifications
Model Total Capacity (L) Mixing Capacity (kg/h) Motor Power (kw) Paddle Speed (r/min)
SRL-Z100/200 100/200 165 14/22/7.5 650/130/180
SRL-Z200/500 200/500 325 30/42/11 475/950/130
SRL-Z300/600 300/600 500 40/50/15 475/950/130
SRL-Z500/1000 500/1000 750 47/67/15 430/860/60
SRL-Z800/1600 800/1600 1400 60/90/18.5 370/740/50
SRL-Z800/2500 800/2500 1400 80/110/30 370/740/50
SRL-Z1000/3000 1000/3000 1900 110/160/37 325/650/50
SRL-Z1300/4500 1300/4500 2500 132/200/45 250/500/50
Delivery & Service Information
Delivery: 30 days after order
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service Includes:
• One year guarantee for whole machine
• 24 hours technical support
• Overseas installation & commissioning by our engineers
• Maintenance guidance and spare parts provision
• Comprehensive operator training services

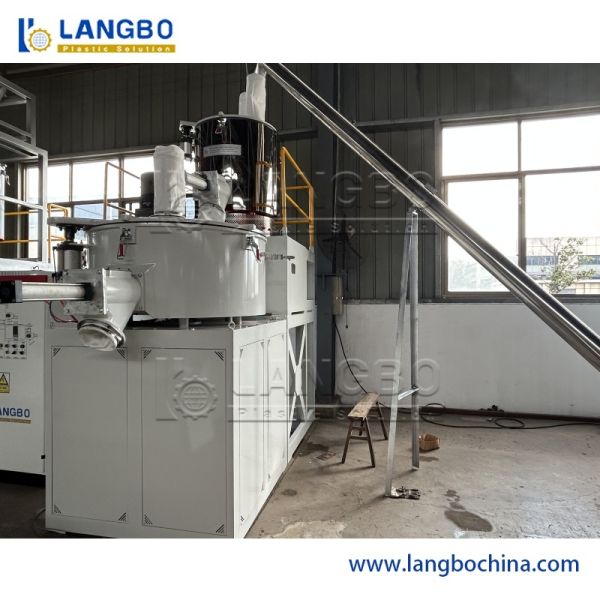

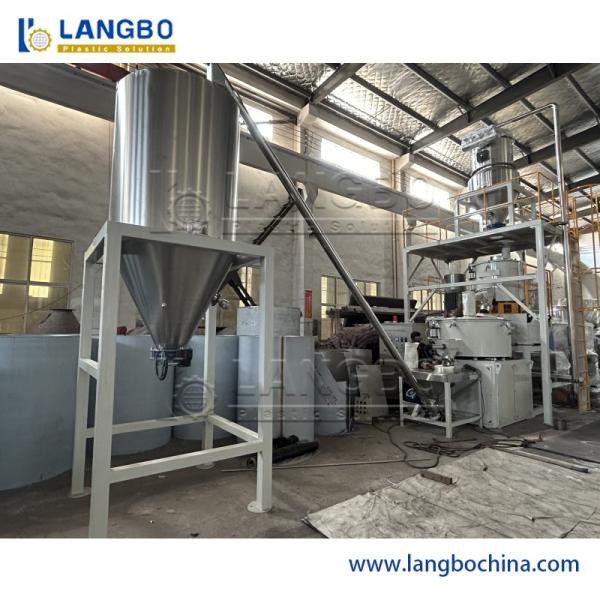

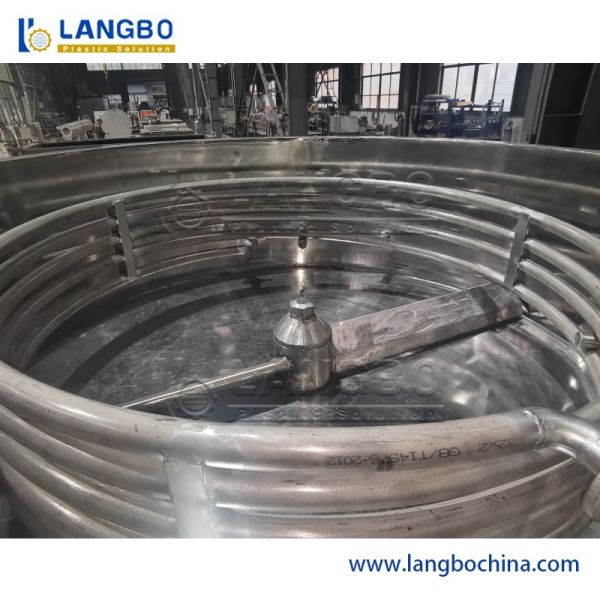

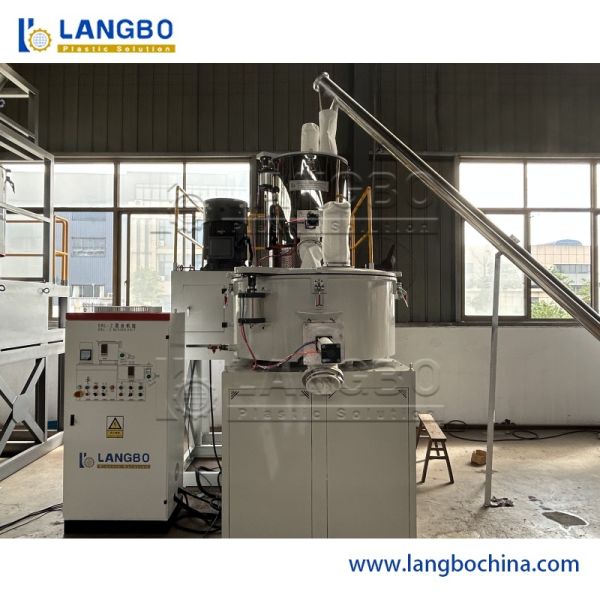

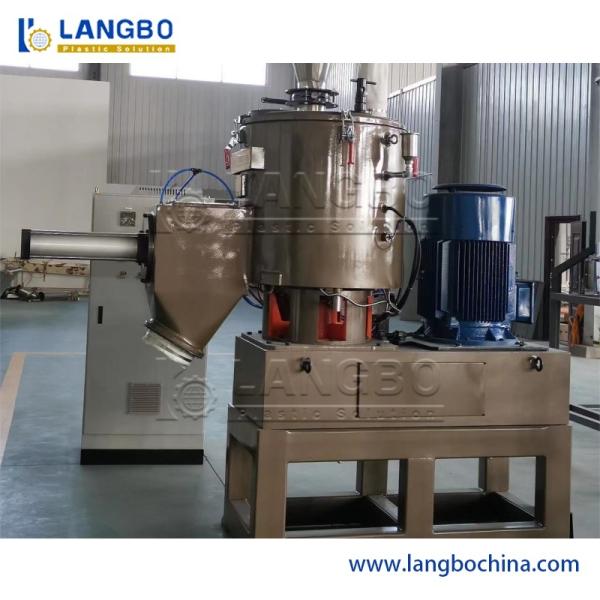

Product Images
Hot Cold High Speed Turbo Mixer Hot Cold High Speed Turbo Mixer Hot Cold High Speed Turbo Mixer Hot Cold High Speed Turbo Mixer Hot Cold High Speed Turbo Mixer Hot Cold High Speed Turbo Mixer
Our Manufacturing Facility
Hot Cold High Speed Turbo Mixer
Industry Exhibition Participation
Hot Cold High Speed Turbo Mixer
Global Shipping & Distribution
Hot Cold High Speed Turbo Mixer
