Specifications
CONTROL :
AUTOMATIC
FEEDING :
AUTO-PNEUMATIC
Model Number :
LB-800/2000
Shipping :
By sea
Brand Name :
LB
Certification :
CE, ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD, EUR
Payment Terms :
L/C,T/T
Supply Ability :
10 SET PER MONTH
Delivery Time :
60 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
MIXER :
VERTICAL/HORIZONTAL COMBINATION
NOTOR POWER :
83/110/22KW
Power(W) :
18.5-75kw
Warranty :
2 YEARS
Description
PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System
Product Overview
Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine for PVC pipe, window door profiles, ceiling panel, cable trunking, marble sheet. Suitable for plastics, rubber, chemical and food industry, for powder or granulate material blending, coloring and drying.
Key Applications
  • Production of PVC dry blend
  • Filling and modification of plastics
  • Pre-mixing of compounding process
  • Premix of wood-plastic composites
Product Features
  • All important parts manufactured in-house ensuring quality control
  • Product contact surfaces made of SUS304 or aluminum alloy to prevent contamination
  • High cooling efficiency with short mixing times
  • Easy cleaning and high output capacity
  • Customizable mixing tools for different applications
  • Wear-resistant coated mixing tools with dynamic balance testing
  • Comprehensive after-sales service support
Technical Specifications
  • Blade made of stainless steel with dynamic and static balance refining
  • Pneumatic double sealing cap for easy operation
  • Stainless steel cylinder with 8mm wall thickness
  • Temperature auto control or time control discharge
  • ABB inverter for motor start and speed regulation
  • Direct & stable control type with analog display screen
  • Automated manufacturing procedure reducing labor intensity
Model Specifications
Model Total Capacity (L) Mixing Capacity (kg/h) Motor Power (kw) Paddle Speed (r/min)
SRL-Z100/200 100/200 165 14/22/7.5 650/130/180
SRL-Z200/500 200/500 325 30/42/11 475/950/130
SRL-Z300/600 300/600 500 40/50/15 475/950/130
SRL-Z500/1000 500/1000 750 47/67/15 430/860/60
SRL-Z800/1600 800/1600 1400 60/90/18.5 370/740/50
SRL-Z800/2500 800/2500 1400 80/110/30 370/740/50
SRL-Z1000/3000 1000/3000 1900 110/160/37 325/650/50
SRL-Z1300/4500 1300/4500 2500 132/200/45 250/500/50
Delivery & Payment Terms
  • Delivery: 30 days after order confirmation
  • Warranty: 12 months
  • Payment: T/T 30% in advance, T/T 70% before delivery
  • Packing: Standard export wooden case
Service Support
  • One year guarantee for entire machine
  • 24 hours technical support
  • Overseas installation & commissioning services
  • Maintenance guidance and spare parts supply
  • Comprehensive operator training services

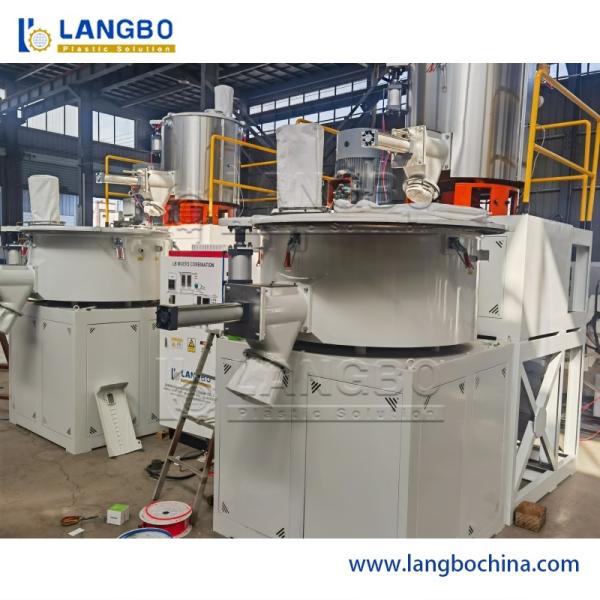

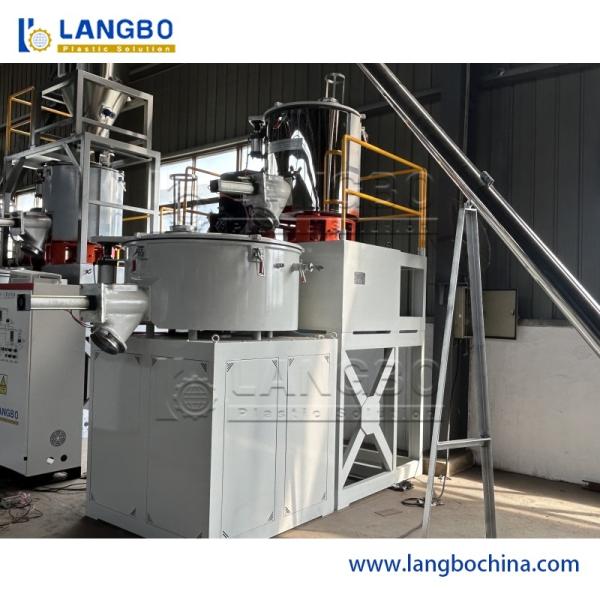

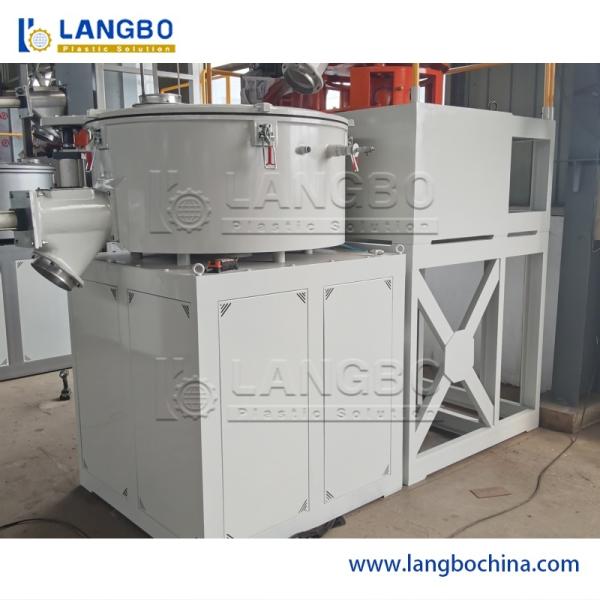

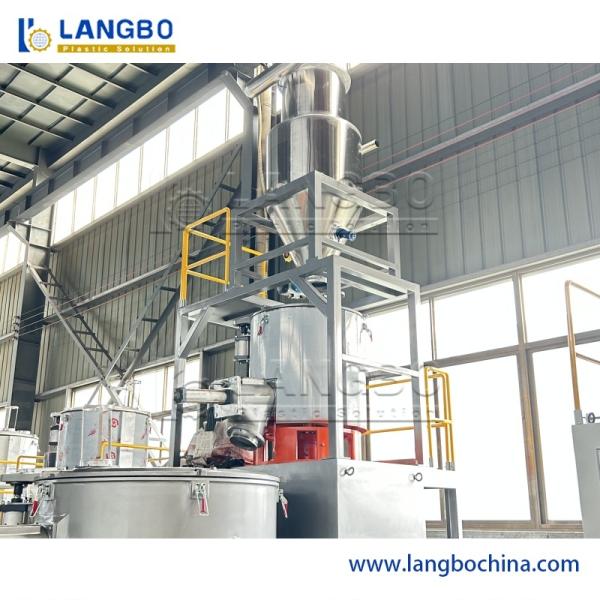

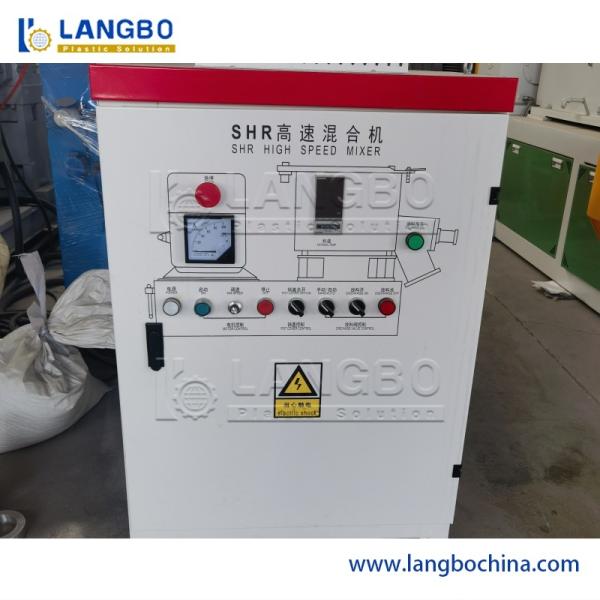

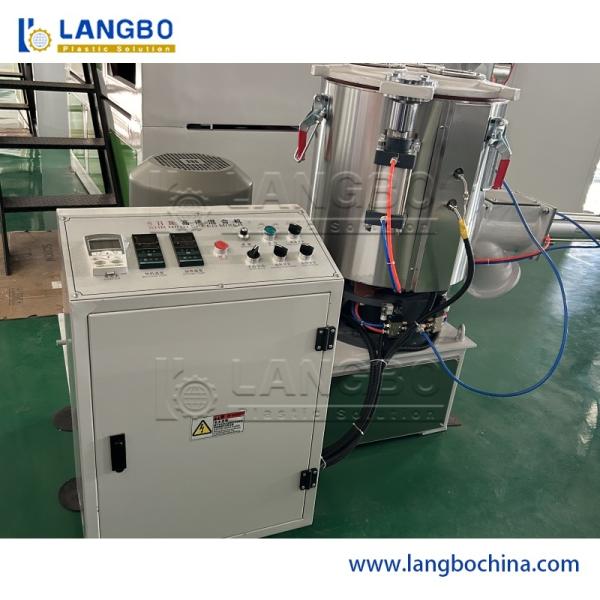

Product Images
PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System
Our Manufacturing Facility
PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System
Industry Exhibition Presence
PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System
Global Shipping Capability
PVC Pipe and Profile Mixer – Plastic Extruder Automatic Feeding Dosing System
