PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
Specifications
Packaging Details :
NORMAL PACKAGE
Plastic Processed :
PE
Model Number :
LB
Supply Ability :
15 SETS PER MONTH
Extrusion Screw Speed :
0-89rpm/min
Payment Terms :
L/C,T/T
MOQ :
1 SET
Brand Name :
LB
Motorpower :
15kW - 110kW
Plastic Raw Material :
pellet
Extrudertype :
Single-screw
Coolingmethod :
Water cooling tank
Voltage :
CUSTOMIZED
Heatingzones :
4 - 8 zones
Productioncapacity :
100kg/h - 1000kg/h
Price :
negotiation
Delivery Time :
45 WORKING DAYS
Certification :
CE / ISO
Place of Origin :
ZHANGJIAGANG
Technical Support :
Training operator worker
Description
PE Pipe Extrusion Machine With Multi-Drive Haul-Off For Gas Pipe Production
The HDPE pipe production line is designed for manufacturing large diameter pipes ranging from 50-250mm, primarily used in fuel gas and water supply systems. These pipes offer exceptional performance characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and superior creep resistance. They serve as the preferred conduit solution for ductwork systems and municipal water supply networks.
Production Specifications
Model Pipe Diameter (mm) Extruder Extruder Power Capacity (kg/h)
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350
Complete Production Line Components
Our turnkey PE pipe production line includes all necessary machinery to manufacture high-quality PE pipe. From single screw extruders with quality components to high-speed servo-powered puller machines, we provide comprehensive solutions for successful pipe manufacturing.
  • Single Screw Extruder Machine: Core component that heats, mixes, and extrudes fresh pipe
  • Vacuum & Cooling Tank: Cools and dries extruded pipe to maintain ovality and uniformity

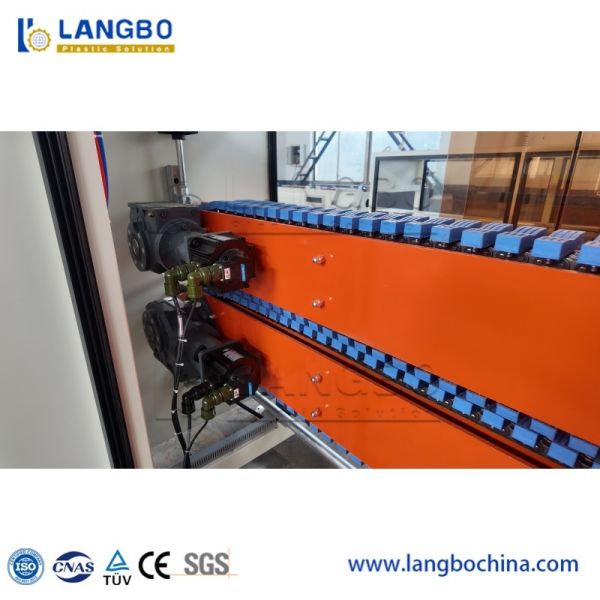

  • Haul Off (Puller) Machine: Pulls fresh pipe from the extruder through the vacuum and cooling tank
  • Cutter Machine: Cuts PE pipe to desired lengths programmed into the HMI
  • Accumulator Machine: Maintains buffer between coil changeovers
  • Coiler Machine: Enables pipe coiling for sale and distribution
Optional Equipment
Extrusion die heads can be added to existing extruders to produce 3-layer pipe with recycled cores, reducing raw material costs. Our machinery can also be supplied as standalone units for upgrading existing production lines.
Pre- and After-Sale Services
  • Extensive industry experience
  • Consistent focus on highest quality standards
  • Complete twin pipe vacuum sizing system
  • Independently controlled unitary structure twin pipe hauling mechanism
  • Synchronous cutting device
  • Optional length set and accurate adaptation stacker
  • Highly motivated technical team
  • Sophisticated process technology
  • Customized solutions for specific requirements
Product Images
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
Our Manufacturing Facility
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
Industry Exhibition Participation
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
Product Delivery
PE Pipe Extrusion Machine with Multi-Drive Haul-Off for Gas Pipe Production Using Single-Screw Extruder
