Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
Specifications
Warrantyperiod :
12 months
Model Number :
LB-63
Place of Origin :
ZHANGJIAGANG
Voltage :
380V 50Hz 3Phase or customized
Haul-Offspeed :
0-20 m/min adjustable
Payment Terms :
L/C,T/T
Warranty :
2 Years
Packaging Details :
NORMAL PACKAGE
Packing Method :
Wooden and film packages
Automatic Grade :
Automatic
Productioncapacity :
100-300 kg/h
Delivery Time :
45 WOKING DAYS
Price :
Negotiable（USD EUR）
Mark Line :
SINGLE SCREW EXTRUDER
Brand Name :
LB
Screw Design :
Single-screw
Certification :
CE/ISO
Supply Ability :
15 SETS PER MONTH
Die Head :
3 layer co-extrusion with two extruders
Machinelength :
10-15 meters
MOQ :
1 SET
Production Name :
PPR Pipe Production Machine
Description
PPR Pipe Extrusion Machine With Automatic Pipe Stacker For Hot Water Pipe Production
Product Overview

Our PPR Pipe Extrusion Line features advanced hot cutting technology, precise dimensional control, and flexible specifications to meet diverse manufacturing requirements for hot water pipe production.

Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs.

Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components

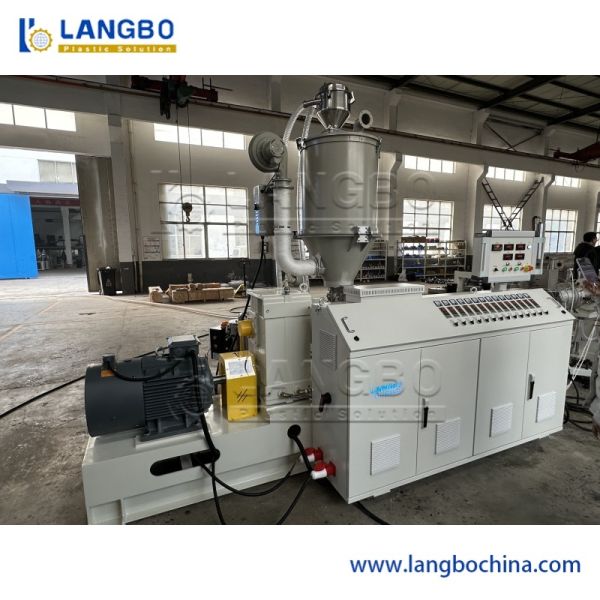

  • Single screw extruder

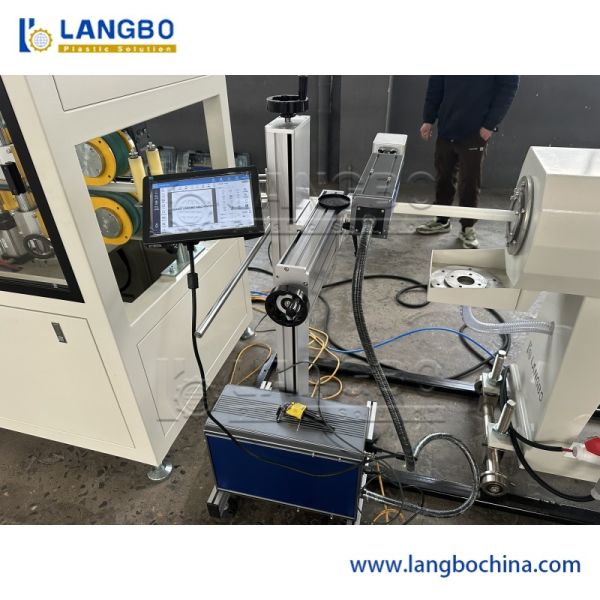

  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs

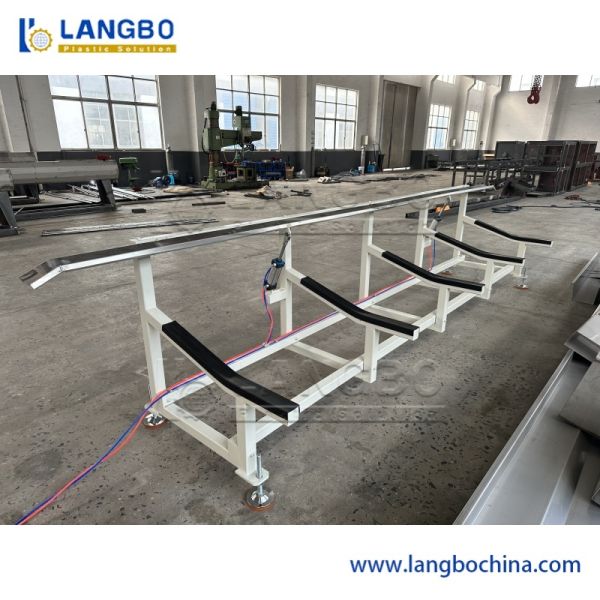

  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images
Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production Automatic PPR Pipe Extrusion Machine with 3 Layer Co-Extrusion and 100-300 kg/h Capacity for Hot Water Pipe Production
