Specifications
Linelength :
15-20 meters
MOQ :
1 SET
Application :
Interior Wall Decoration
Color :
Customized
Brand Name :
LB
Calibration Table :
EIGHT MTERS LONG
Delivery Time :
45 WORKING DAYS
Screwdiameter :
65-90 mm
Raw Material :
PVC,WPC
Place of Origin :
ZHANGJIAGANG
Coolingsystem :
Water Cooling
Price :
Negotiable（USD,EUR）
Motor Power :
22KW
Heatingzones :
5-7 zones
Warranty :
TWO YEARS
Productioncapacity :
100-500 kg/h
Shipping Method :
CONTAINER BY SEA
Packing Method :
WOODEN BOX AND FILM PACKAGE
Packaging Details :
STANDARD PACKAGE
Model Number :
LB-1180
Payment Terms :
L/C,T/T
Certification :
CE,ISO9001
Stacker :
SIX METERS LENGTH
Supply Ability :
15 SETS PER MONTH
Description
PVC Wall Panel Extrusion Line With Profile Geometry Accuracy Control For Commercial Interior Decoration
Product Overview

The PVC profile production line is designed for manufacturing various PVC profiles including window & door profiles, ceiling panels, and trunking. Custom solutions and molds are developed based on detailed profile drawings.

Processing Process

Complete production workflow: PVC powder + additives → mixing → material feeding → twin screw extrusion → molding and calibration → vacuum forming → haul-off → cutting → discharge rack.

This extrusion line features a conical twin screw extruder compatible with both PVC powder and granules. The integrated degassing system ensures superior material plasticization, while high-speed molds significantly boost productivity.

Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Key Components
Conical Twin Screw Extruder

Specially engineered screws process dry PVC powder blends efficiently. Our design ensures homogeneous mixing, superior plastification, and optimal conveying. Permanent magnet synchronous motors deliver high energy efficiency, while integrated PLC controls enable centralized production line management.

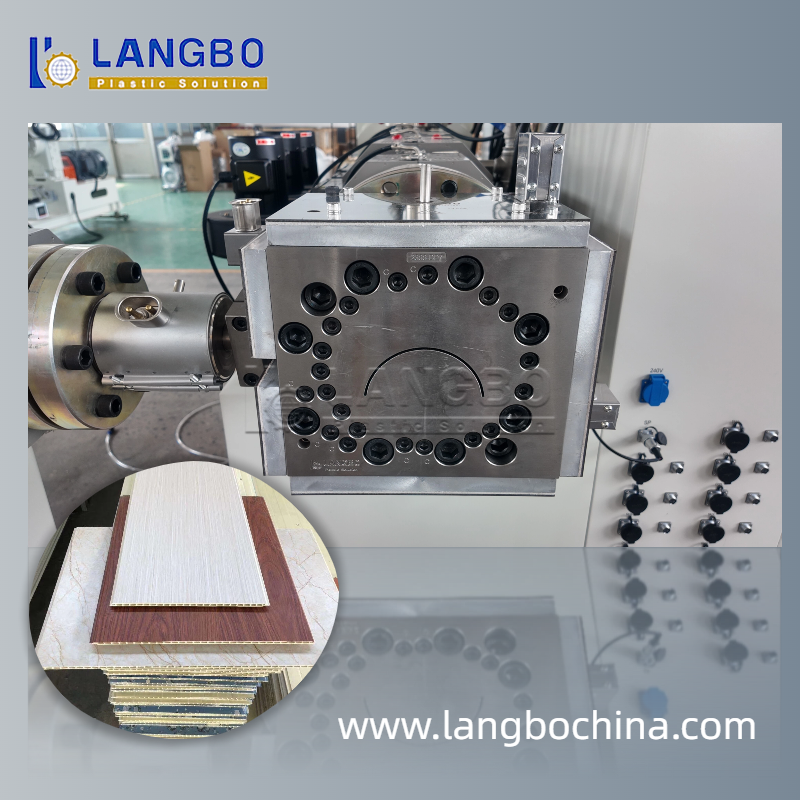

Plate Mould

Double strand molds for PVC trunking production dramatically increase output. Optimized channel design enhances flow performance, and advanced manufacturing techniques produce profiles with exceptional dimensional accuracy.

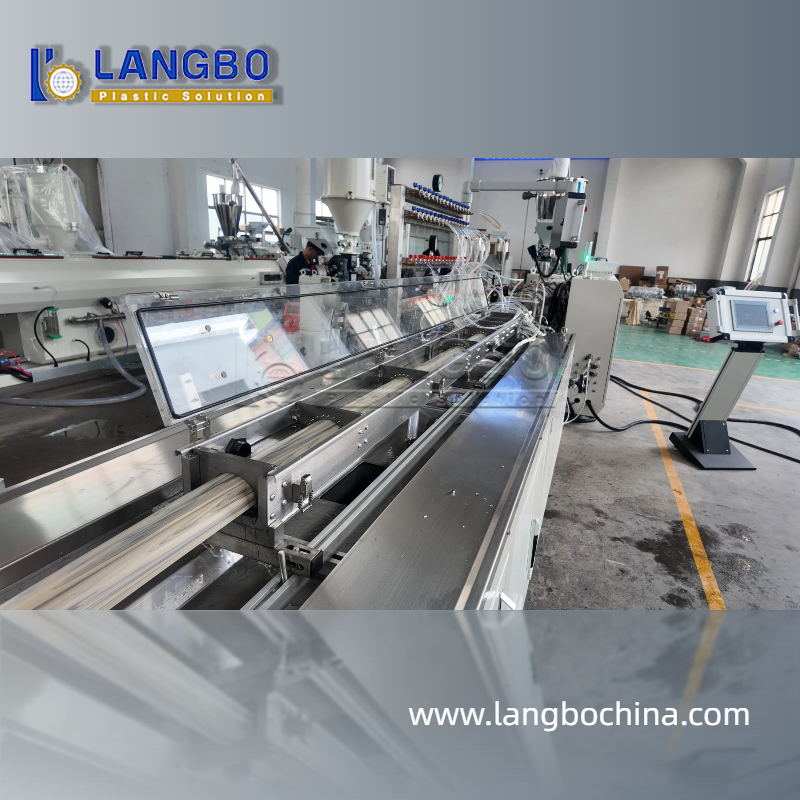

Calibration Table

Constructed with stable steel framework and SUS 304 stainless steel body. Features multi-dimensional positioning adjustment, precision water pump layout, and vacuum calibrators for rapid profile shaping and cooling. Extended length ensures complete PVC profile formation.

Haul-off & Cutter Combination

Even force distribution provides sufficient hauling capacity with high-quality rubber components. Pneumatic pressure systems facilitate easy adjustments and product protection. Customizable cutting options include swarfless and saw cutting methods.

Product Images
PVC Wall Panel Extrusion Line with Profile Geometry Accuracy Control, 22KW Motor Power, and Water Cooling System for Commercial Interior Decoration PVC Wall Panel Extrusion Line with Profile Geometry Accuracy Control, 22KW Motor Power, and Water Cooling System for Commercial Interior Decoration PVC Wall Panel Extrusion Line with Profile Geometry Accuracy Control, 22KW Motor Power, and Water Cooling System for Commercial Interior Decoration PVC Wall Panel Extrusion Line with Profile Geometry Accuracy Control, 22KW Motor Power, and Water Cooling System for Commercial Interior Decoration PVC Wall Panel Extrusion Line with Profile Geometry Accuracy Control, 22KW Motor Power, and Water Cooling System for Commercial Interior Decoration PVC Wall Panel Extrusion Line with Profile Geometry Accuracy Control, 22KW Motor Power, and Water Cooling System for Commercial Interior Decoration
