PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
Specifications
Payment Terms :
L/C,T/T
PIPE DIAMETER :
355-800MM
MARK LINE :
ONE LINE OR CUSTOMIZED
Vacuum tank :
11 meters long with total SUS304
Certification :
CE,ISO
Cutter :
Planetary cutter
Price :
USD, RMB, EUR
COLOUR :
WHITE OR CUSTOMIZED
Supply Ability :
15 SETS PER MONTH
Extruder power (kw) :
355KW
Voltage :
380V 50HZ 3Phase(Customized)
Gearbox :
Integrated gearbox
Model Number :
LB-800
Screw design :
Single screw
Control :
PLC+Touch Screen
MOQ :
1 SET
Delivery Time :
45 WORKING DAYS
SCREW DIAMETER :
120/38
Motor :
Made in China
Packages :
Exported standard packing
Brand Name :
LB
Packaging Details :
NORMAL PACKAGE
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Capacity :
1200KG/H
APPLICATION :
WATER SUPPLY CONDUIT
Haul-off :
Eight haul-offs
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
Automatic grade :
Full-automatic
Warranty :
2 years
Color :
Customised
Description
PE Pipe Extrusion Line with 16-110mm Diameter with gravimetric dosing unit
20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm Plastic Tube Production Extrusion Line Extruder Making Machine
Key Advantages
Langbo China machine provides 75-450mm HDPE pipe solutions widely used in sewage and water supply applications. Our extrusion lines feature premium components including ABB inverters, Beide motors, Schnider electrical parts, and high-quality Chinese gearboxes, ensuring reliable performance and long service life.
  • 90/38 250kw motor for 75-450mm PE pipe extrusion
  • ABB inverter frequency control
  • Beide motor and Schnider electrical components
  • Premium Chinese screw, barrel, and gearbox
  • On-site installation, commissioning, and training
  • Lifetime after-sales service
Processing Process
PE granules → material feeder → single screw extruder → mould and calibrator → vacuum forming machine → two-staged spraying cooling machine → haul-off machine → knife cutter → stacker
Technical Specifications
Model LB110 LB250 LB315 LB400
Pipe Range 20-110mm 75-250mm 110-315mm 180-400mm
Screw Model SJ65 SJ75 SJ75 SJ75
Motor Power 55KW 90KW 132KW 160KW
Output 150kg 220kg 400kg 600kg
Component Details

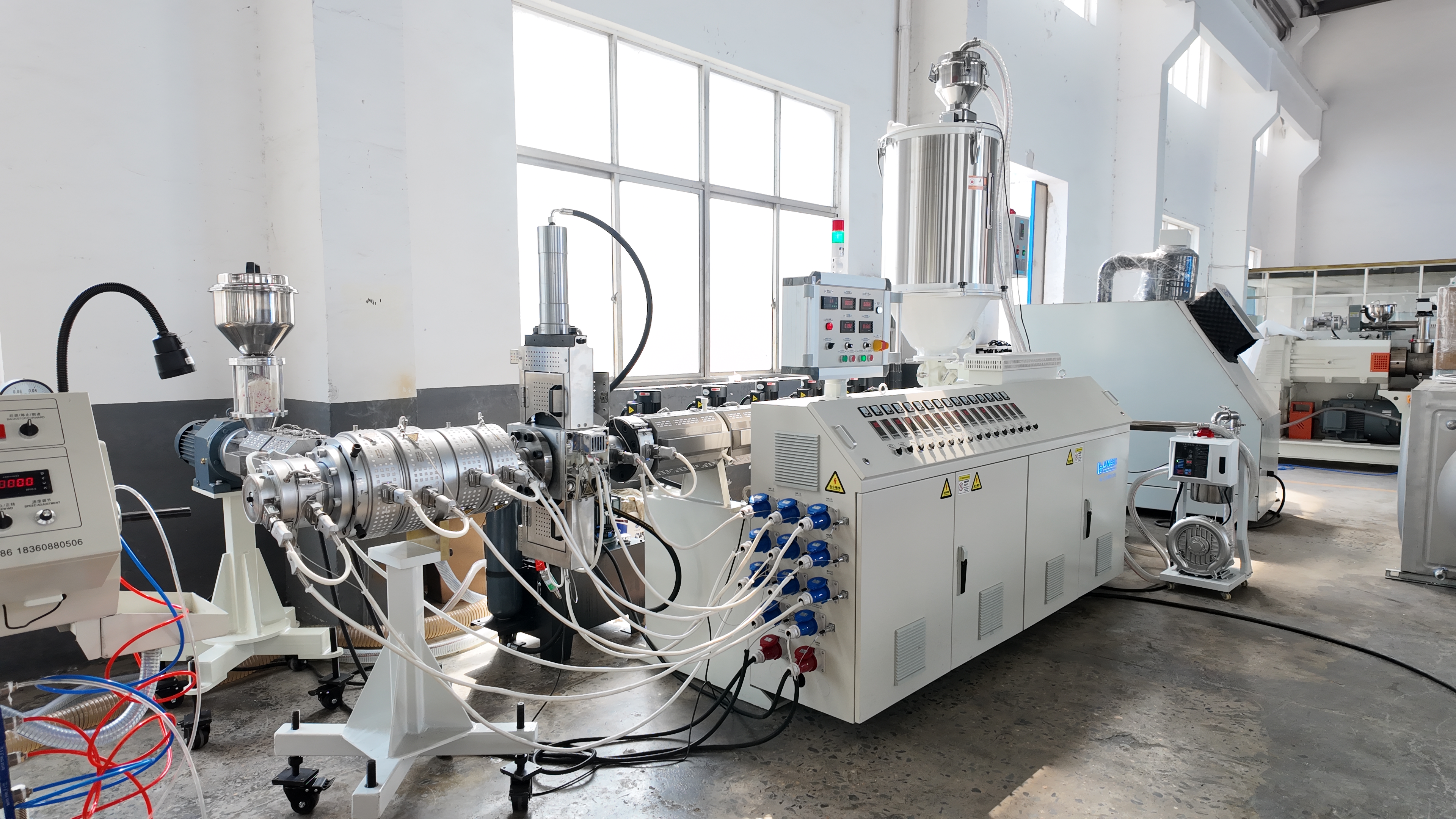

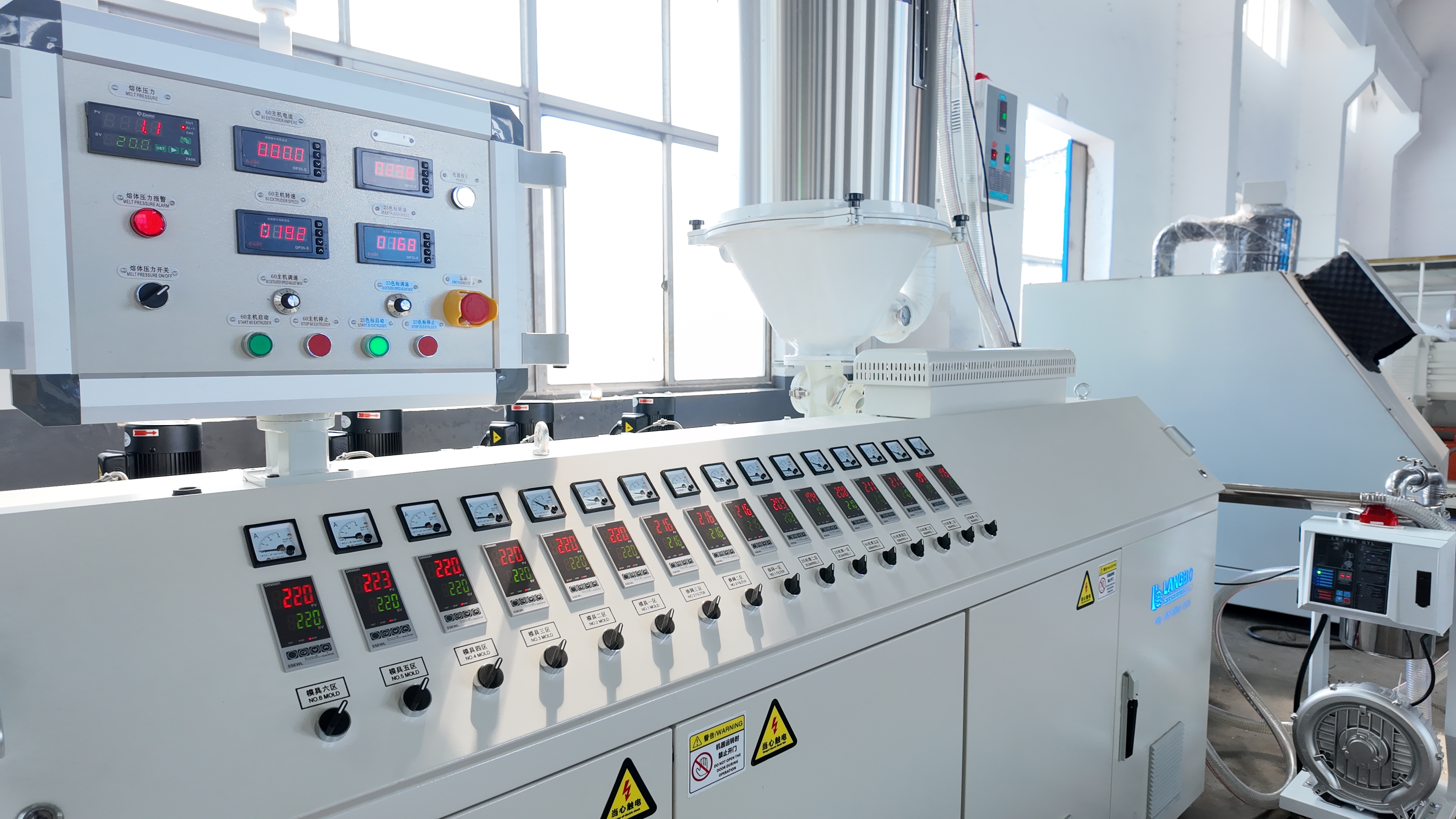

Single Screw Extruder Machine
Crafted with top brand components for production stability, efficiency, and durability. Features international standard single screw and barrel with strong rigidity ensuring long service life and superior plasticizing effect.
Mould
Spacious flow channel design for high extrusion capacity and optimal melting effect. Manufactured and inspected by experienced professionals with optimized temperature control and flow channel design for precise melt temperature management.

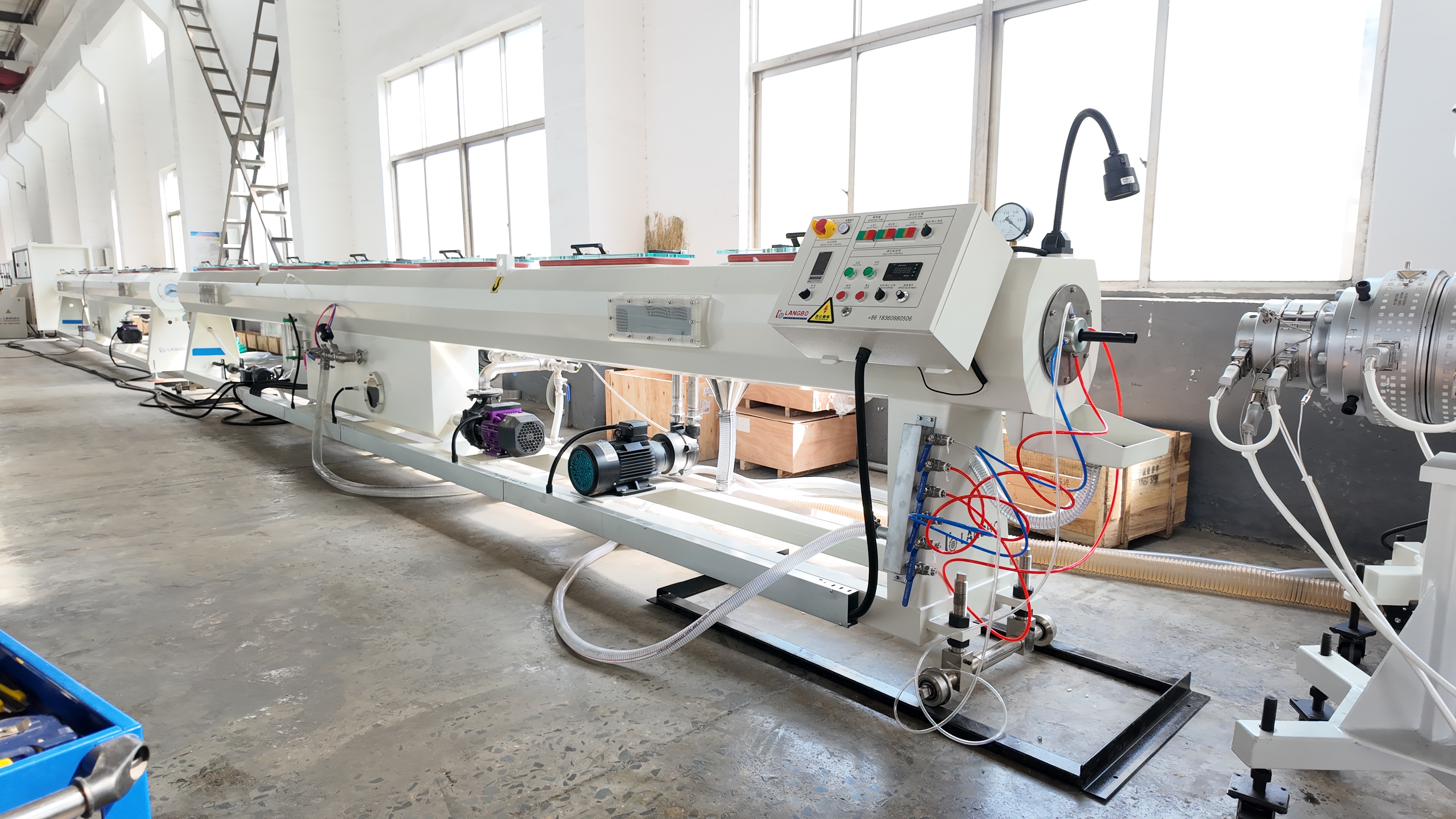

Vacuum and Cooling Tank
Constructed from stainless 304 steel with excellent vacuum system for precise pipe sizing. The holder in the first step ensures proper pipe shaping and provides additional power for pipe movement.
Haul-off Unit
Ten crawler track system ensures stable and steady pipe operation. Unique mechanism prevents pipe ovality while specialized belt design assures proper pulling without slippage.
Cutting Unit
Offers two cutting methods: rapid cutter and planetary cutter. Cutting method can be switched randomly according to produced pipe material requirements.

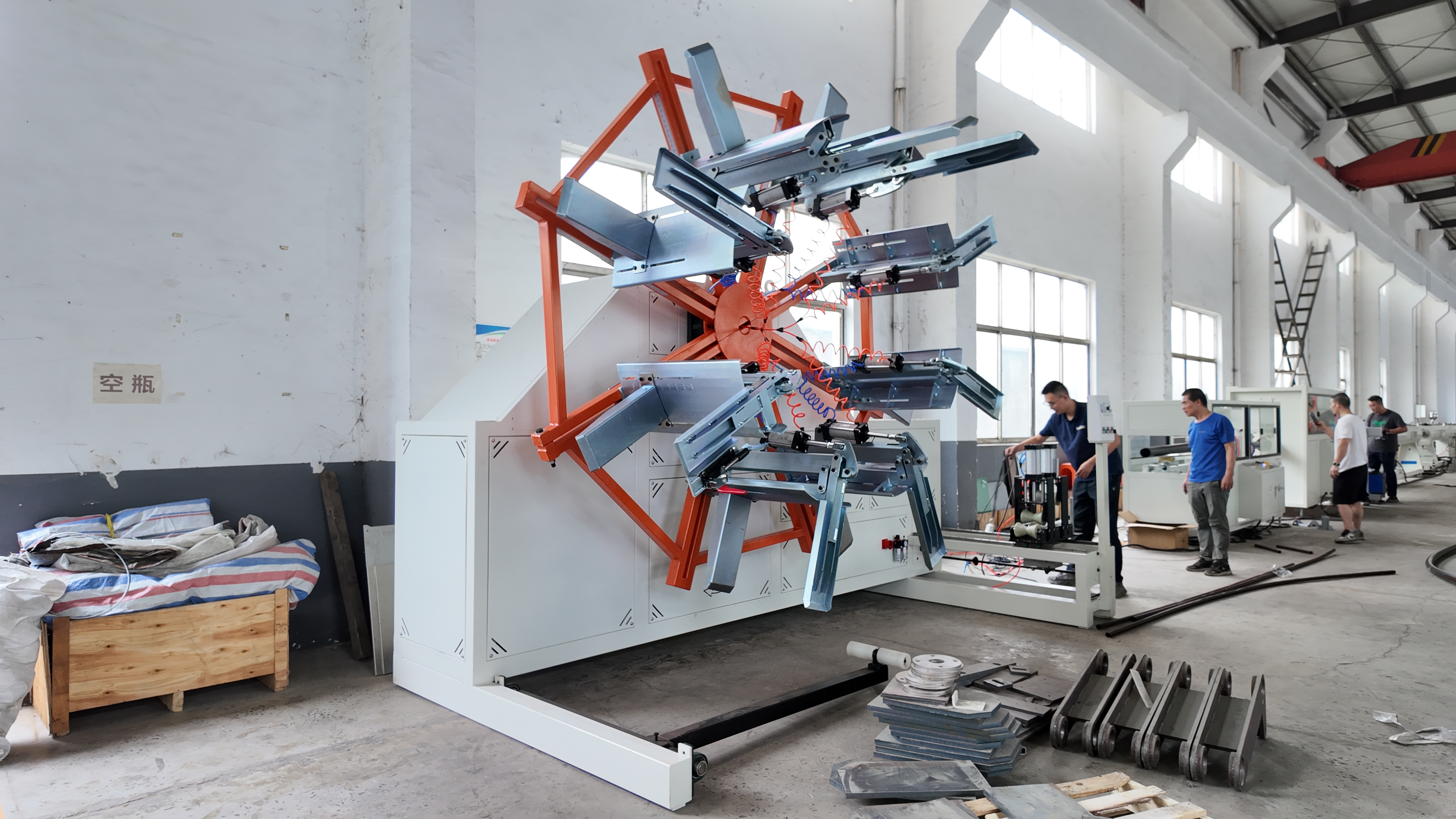

Coiler
16-40mm HDPE pipes are wound by double disk coiler, while 50-110mm pipes use single disk coiler. Fully automatic operation powered by cylinder system.
