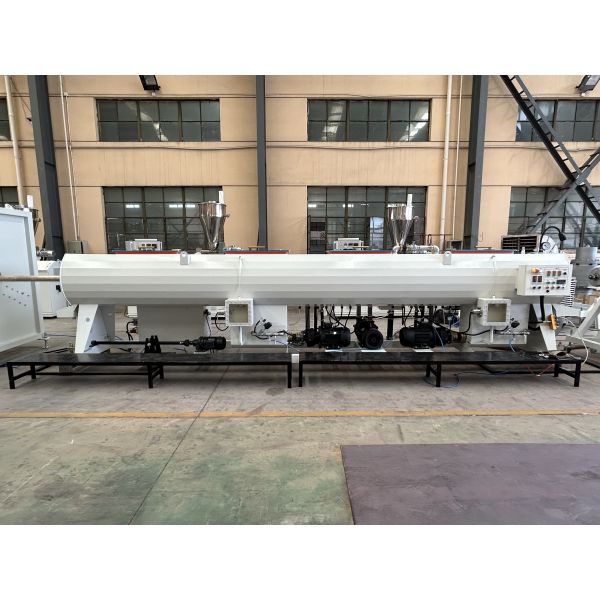

Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Specifications
Supply Ability :
15 SETS PER MONTH
Extruder :
SJZ65/132 Conical double screw extruder
Delivery :
60 days
Motor :
Beide
Model Number :
LB-65/132
Haul Off :
Three haul off machine
Frequency :
ABB
MOQ :
1 SET
Delivery Time :
30 WORKING DAYS
Type :
Standard Or Customized
Warranty :
2 Years
Payment Terms :
L/C,T/T
Cuttingmachine :
Automatic cutting machine with length control
Colour :
Customized
Price :
Negotiable（USD EUR）
Style :
one pipe one time
Center Height :
1000mm
Condition :
New Machine
Certification :
CE ISO9001
Application :
Water supply, drainage, irrigation, electrical conduit
Place of Origin :
ZHANGJIAGANG, JIANGSU
Vacuum Tank :
3mm stainless steel
Packaging Details :
NORMAL PACKAGE
Brand Name :
LB
Pipe Od :
16-630mm
Description
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
This PVC pipe extrusion line produces UPVC pipes with diameters ranging from 16mm to 250mm, featuring a uniform cooling system for consistent quality and performance.
Applications
  • Electrical conduits
  • Water supply pipes
  • Sewage pipes
  • Home decoration
  • Chemical transportation
  • Gas distribution lines
Key Advantages
  • High strength and rigidity
  • Structural integrity
  • Excellent chemical resistance
  • Durability
  • Thermal stability
  • Non-toxic safety
  • Low maintenance requirements
  • Cost-effectiveness
Production Process
PVC powder + additives → Mixing → Spring feeding → Twin-screw extruder → Mould and calibrator → Vacuum forming machine → Haul-off machine → Cutting machine → Stacker
Technical Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-32A 16-32 (four) SJZ65/132 37AC 250
LB-32B 16-32 (four) SJZ80/156 55AC 350
LB-50A 16-50 SJZ45/90 15AC 100
LB-50B 16-50 (double) SJZ51/105 18.5AC 150
LB-50C 16-50 (double) SJZ65/132 37AC 250
LB-63A 16-63 SJZ51/105 18.5AC 150
LB-63B 16-63 (double) SJZ65/132 37AC 250
Component Details
Mixer: Features a specialized design that reduces raw material self-friction, enhancing energy utilization efficiency. Equipped with a vacuum suction loading system for low-noise operation and dust-free working environment.
Twin Screw Extruder Machine: Crafted with top-brand components to ensure stable production, high efficiency, and long-term durability. The conical twin-screw design is tailored to raw material characteristics, enabling homogeneous mixing, superior plastification, and efficient conveying.
Vacuum Calibration & Cooling: The vacuum calibration tank features a two-chamber structure integrating vacuum calibration and cooling functions. Both the vacuum tank and spraying cooling tank are constructed from 304 stainless steel. The high-performance vacuum system guarantees precise pipe sizing.
Haul-off Unit: Equipped with three crawler track belts to ensure stable movement of produced pipes. The general control allows customization into tailored hauling modes to meet specific production requirements.
Cutting Unit: A high-precision encoder ensures accurate and stable cutting lengths. Controlled by a PLC system, it supports manual operation for cutting according to specific application needs.
Product Images
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
Langbo Plastic Technology High Quality Plastic 16-250mm PVC Pipe Extruder Making Machine
