Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Specifications
Brand Name :
LB
Model Number :
LB-63W
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
film wraping
name :
PVC Pipe Extrusion Line
Plastic :
PVC
Application :
pipe making
raw material :
pvc powder
Screw Design :
conical twin screw
Material of Screw :
38CrMoALA
Inverter :
ABB
Temperature Sensor :
Omron
Description
Automatic Twin Screw PVC Pipe Machine & PVC Hose Production Line
Automatic PVC Pipe Extrusion Machine
Production Flow
Raw material + additive → Mixing → Material conveying → Forced feeding → Conical twin screw extruder → Extruding mould → Diameter control unit → Spraying vacuum shaping box → Spraying/immersion type cooling water tank → Marking machine → Crawler track tractor → Cutter → Pipe expanding machine → Pipe stacker → Pipe inspection & packing
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Features of PVC Pipe Extrusion Machine
  • Conical Twin-Screw Extruder: Equipped with forced fixed-quantity material feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system. This structure ensures accurate temperature control, plasticization stability and significantly improved production speed. Main motor options include direct converter or frequency converter.

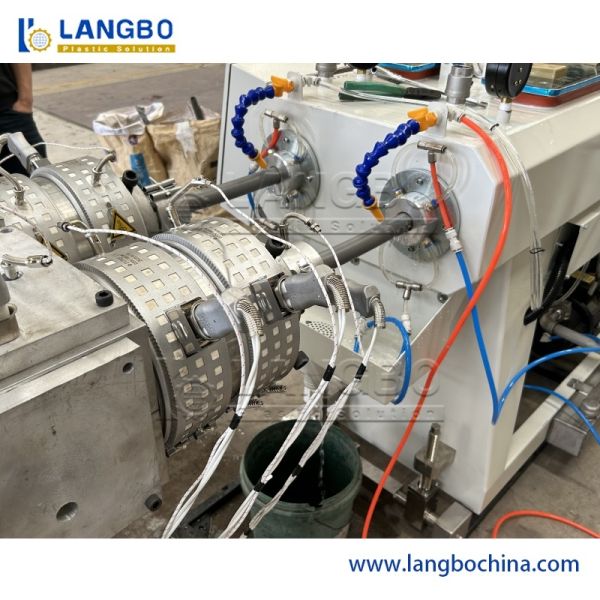

  • PVC Extruding Molds: Constructed from high-quality 40Cr material with polished and chrome-plated surfaces. Features multiple head spiral structure for low melt pressure. Maintains low temperature even during high-quantity extrusion.
  • Vacuum Calibrating Water Tank: Body made from high-hardness stainless steel board with high-pressure and corrosion resistance. Two-stage design for large diameter pipes. Electric water temperature control. ABS engineering plastic nozzles. Three-dimensional adjustable frame with cycloid reducer drive for front-to-back movement and screw adjustment for up/down and left/right positioning.
  • Water Spray Cooling Tank: Stainless steel body with transparent soft PVC curtain shade. Stainless steel float for water level adjustment and electric water temperature control. ABS engineering plastic nozzles.
  • Haul-off Machine: Frequency conversion approach with chain-driven traction frames ensuring synchronized track movement. Features pneumatic flexibility clamping.
  • Cutting Machine: Planetary cutting system for large diameters. Blade rotation with cutting and inserting blade parts taking revolution. Includes angle cutting structure, pneumatic aluminum half clamping and cleaning device.
  • Control System: Options include PLC intelligent controlling system or ordinary controlling system using electrical parts and Omron temperature controller. Simple operation interface.
Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line
Technical Parameters
Model Pipe Diameter Extruder Extruder Power Capacity
LB-32A 16-32(four) SJ65/132 37AC 250
LB-32B 16-32(four) SJ80/156 55AC 350
LB-50A 16-50 SJ45/90 15AC 100
LB-50B 16-50(double) SJ51/105 18.5AC 150
LB-50C 16-50(double) SJ65/132 37AC 250
LB-63A 16-63 SJ51/105 18.5AC 150
LB-63B 16-63(double) SJ65/132 37AC 250
LB-160 50-160 SJ65/132 37AC 250
LB-250 63-250 SJ65/132 37AC 250
LB-315 110-315 SJ80/156 55AC 350
LB-630 315-630 SJ92/188 110DC 800
LB-800 560-800 SJ105/216 160DC 1100
