Specifications
Brand Name :
LB
Model Number :
LB-63W
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
film wraping
name :
PVC Pipe Extrusion Line
Plastic :
PVC
Application :
pipe making
raw material :
pvc powder
Screw Design :
conical twin screw
Material of Screw :
38CrMoALA
Inverter :
ABB
Temperature Sensor :
Omron
Description
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Production Description
This PVC Pipe Production Line consists of high-speed mixing group, conical twin screw extruder, molds, vacuum diameter calibrating cooling water tank, haul-off, ink printer, saw cutter, stacker, and other components.
The line features unique screw design with short material remaining time in the barrel, providing excellent compounding and plasticizing effect. It incorporates a high-quality reduction box with nice outline, stable running and low noise. Finned ceramic heaters for barrel heating and air cooling system ensure precise temperature control. Vacuum degassing system removes moisture and volatile gases from materials, guaranteeing superior product quality. The main motor uses silicon controlled DC speed regulator or variable frequency speed regulator, providing stable torque output and stepless speed regulation. Suitable for processing PVC or UPVC powder.
Production Flow
  • Raw material + additive → Mixing → Material conveying → Forced feeding
  • Conical twin screw extruder → Extruding mould → Diameter control unit
  • Spraying vacuum shaping box → Spraying/immersion type cooling water tank
  • Marking machine → Crawler track tractor → Cutter → Pipe expanding machine
  • Pipe stacker → Pipe inspection & packing
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Technical Parameters
Model Pipe Diameter Extruder Extruder Power Capacity
LB-32A16-32(four)SJ65/13237AC250
LB-32B16-32(four)SJ80/15655AC350
LB-50A16-50SJ45/9015AC100
LB-50B16-50(double)SJ51/10518.5AC150
LB-50C16-50(double)SJ65/13237AC250
LB-63A16-63SJ51/10518.5AC150
LB-63B16-63(double)SJ65/13237AC250
LB-16050-160SJ65/13237AC250
LB-25063-250SJ65/13237AC250
LB-315110-315SJ80/15655AC350
LB-630315-630SJ92/188110DC800
LB-800560-800SJ105/216160DC1100
Main Components of Production Line

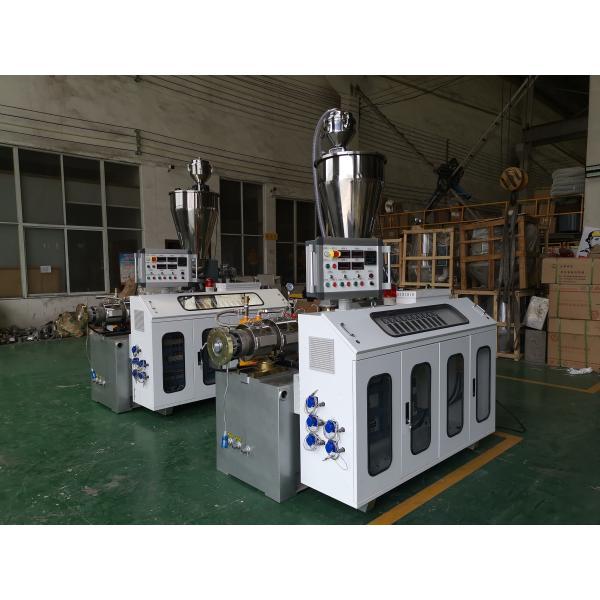

Conical Twin-Screw Extruder: Equipped with forced fixed-quantity material feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system. This structure ensures accurate material temperature control, plasticization stability and greatly improves production speed. The main motor is direct converter or frequency converter.
PVC Extruding Molds: Made from high quality 40Cr material. Mold surfaces are polished and chrome plated. Features multiple head spiral structure with low melt pressure. Maintains low temperature even during high quantity extrusion.

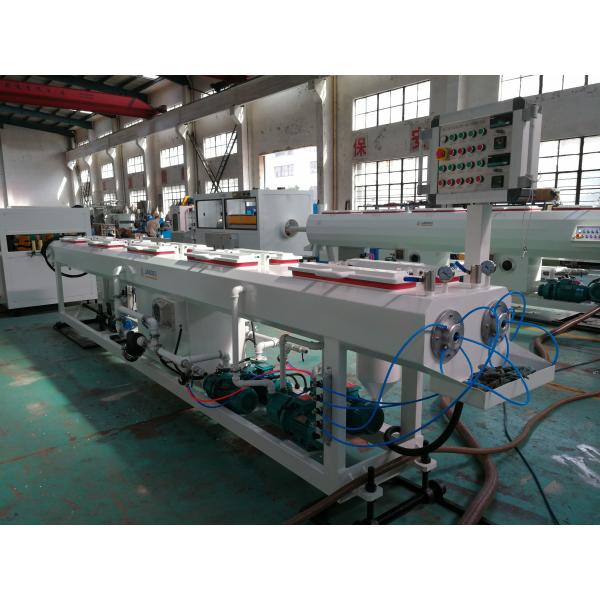

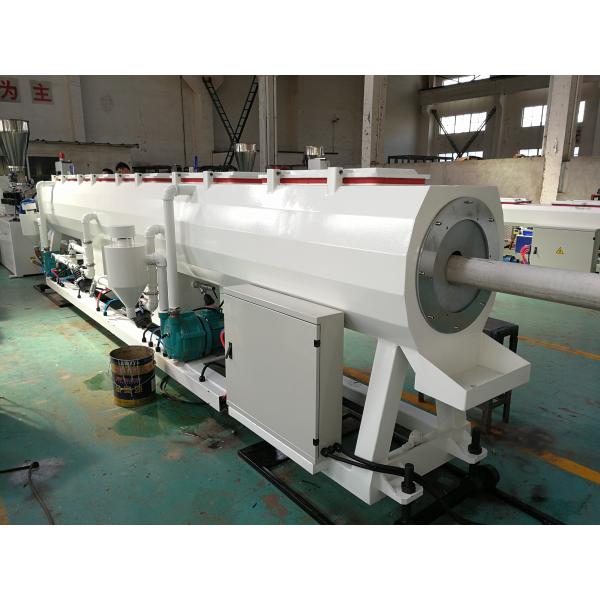

Vacuum Calibrating Water Tank: Body material is high hardness, quality stainless steel board with high-pressure resistance and corrosion-resistance. Two-stage design for large diameter pipes. Electricity controls water temperature. Nozzle material is ABS engineering plastic. Three-dimensional adjustable frame with cycloid reducer drive for front-to-back movement and screw adjustment for up/down and left/right movement.
Water Spray Cooling Tank: Stainless steel body with transparent soft PVC curtain shade. Stainless steel float adjusts water level with electric water temperature control. ABS engineering plastic nozzles.

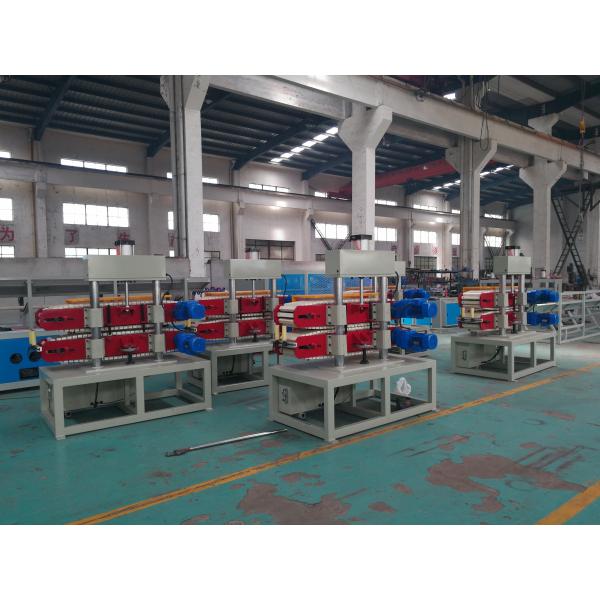

Haul-off Machine: Frequency conversion approach with chain-driven traction frames ensuring simultaneous track movement. Features pneumatic flexibility clamping.

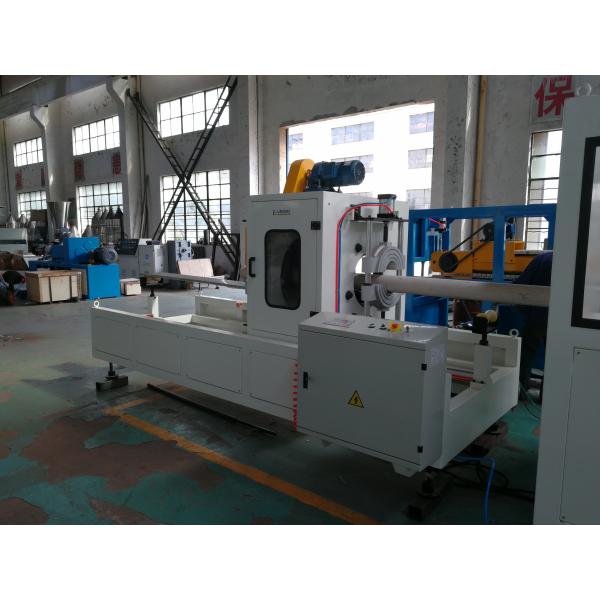

Cutting Machine: Planetary cutting for large diameters. Blade rotates while cutting part and inserting blade part revolve. Includes angle cutting structure, pneumatic aluminum half clamping and cleaning device.
Control System: Available with PLC intelligent controlling system or ordinary controlling system using electrical parts and Omron temperature controller. Simple operation.
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Extruder & Vacuum Tank
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Haul-off Machine & Vacuum Tank with Cooling
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Twin Screw Stable Running 16-315mm Plastic PVC Tube Extrusion Line
Cutting Machine & Haul-off Machine
