Specifications
Brand Name :
LB
Model Number :
LB-63W
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
film wraping
name :
PVC Pipe Extrusion Line
Plastic :
PVC
Application :
pipe making
raw material :
pvc powder
Screw Design :
conical twin screw
Material of Screw :
38CrMoALA
Inverter :
ABB
Temperature Sensor :
Omron
Description
UPVC 1200mm Plastic Pipe Production Line, PVC Pipe Extruder
Plastic PVC Pipe Production Line
Introduction

This production line is specifically designed for manufacturing UPVC pipes with large diameters and varying wall thicknesses for applications in agricultural and construction plumbing, as well as cable conduit systems. The maximum pipe diameter capacity is 1200mm.

Technical Parameters
Model LB63 LB110 LB250 LB315 LB630 LB800
Pipe Diameter 20-63mm 20-110mm 75-250mm 110-315mm 315-630mm 500-800mm
Extruder Model SJ65 SJ75 SJ90 SJ90 SJ120 SJ120+SJ90
Motor Power 37kw 55kw 90kw 160kw 280kw 280KW+160KW
Extrusion Capacity 100kg/h 150kg 220kg 400kg 700kg 1000kg
Production Process Flow
  • PVC powder + additive → mixing → material feeder → twin screw extruder
  • → mould and calibrator → vacuum forming machine → spraying cooling machine
  • → haul-off machine → cutting machine → discharge rack or pipe belling machine

The extruder features an advanced screw design that ensures optimal PVC plasticization, while the PLC control system provides convenient operation. The integrated degassing system guarantees superior quality for the final PVC pipes.

Vacuum calibration and cooling units utilize 304# stainless steel tank bodies with multi-section vacuum systems for stable pipe sizing and cooling. Specialized cooling systems enhance efficiency, and automated water temperature control adds intelligent functionality.

Haul-off machines are available with 2, 3, 4, or 6 crawler tracks to accommodate different pipe sizes. The pedrail clamping system combines mechanical and pneumatic technologies for reliable performance.

Cutting systems employ either no-dust cutters or planetary cutting methods, complemented by dust-collecting systems that maintain a clean working environment.

UPVC 1200mm Plastic Pipe Production Line , Pvc Pipe Extruder
UPVC 1200mm Plastic Pipe Production Line , Pvc Pipe Extruder

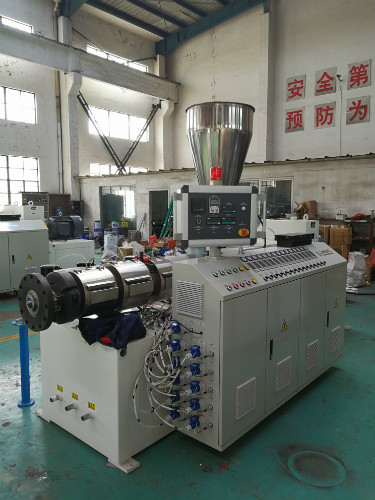

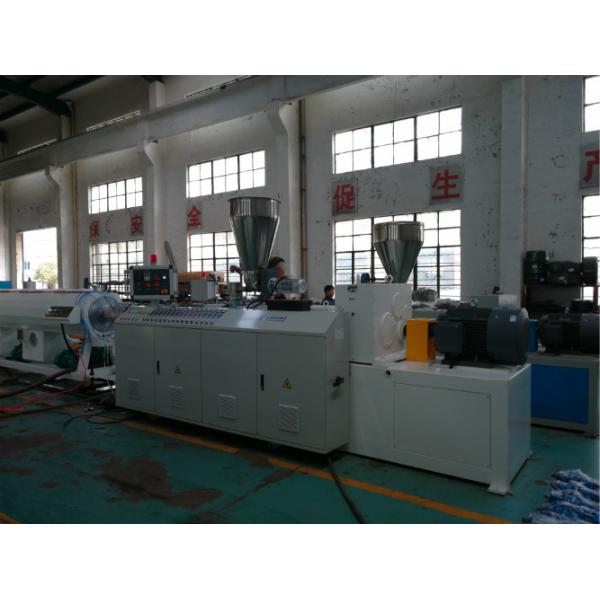

Extruder & Vacuum Tank
UPVC 1200mm Plastic Pipe Production Line , Pvc Pipe Extruder
UPVC 1200mm Plastic Pipe Production Line , Pvc Pipe Extruder
Haul-off Machine & Vacuum Cooling Tank
UPVC 1200mm Plastic Pipe Production Line , Pvc Pipe Extruder

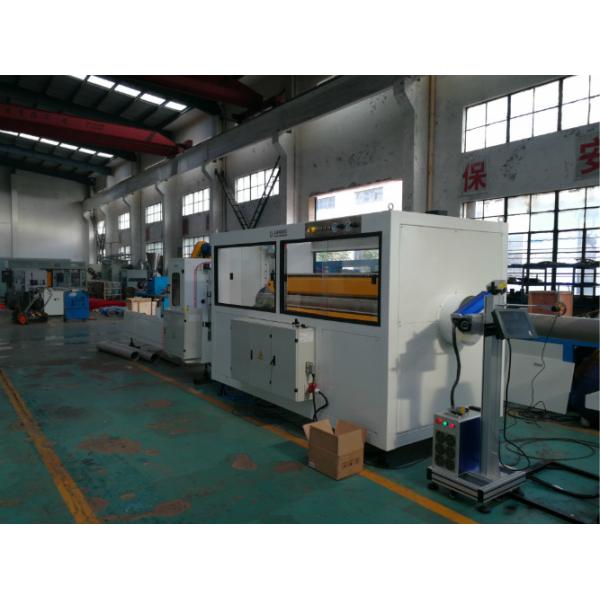

Cutting Machine & Haul-off Machine
UPVC 1200mm Plastic Pipe Production Line , Pvc Pipe Extruder
Technical Data
Model LB160 LB250 LB315 LB630 LB800
Pipe Size 50~160mm 75~250mm 110~315mm 315~630mm 500~800mm
Extruder SJZ65/132 SJZ80/156 SJZ92/188 SJZ92/188 SJZ92/188
Motor Power 37kw 55kw 90kw 110kw 132kw
Output 250kg 350kg 550kg 600kg 700kg
