Specifications
Brand Name :
LB
Model Number :
LB
Certification :
CE / ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Payment Terms :
L/C,T/T,
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Production Name :
PPR Glassfiber PPR Pipe Production Machine
Pipe Size :
20-63mm; 3 layer
Extruder Capacity :
350kgs/h for inner &outer +180kgs/h middle GF
Die head :
3 layer co-extrusion with two extruders
Production speed :
12m/min; 20m/min; 28m/min
Control system :
SIEMENS PLC with remote control system
Description
PE Co-Extrusion PPR Pipe Production Line 350kgs/H Multi Layer Tube
PPR/PE Co-Extrusion Pipe Production Line
Multi-layer pipes are produced by co-extrusion pipe line technology. This specialized manufacturing process enables cost-effective raw material utilization while creating pipes with enhanced functional characteristics.
Applications of Multi-Layer Pipe Production Line
The co-extrusion production line offers versatile manufacturing capabilities for creating pipes with specialized features:
  • Cost-effective production using recycled materials as middle layers for PE thick wall pipes
  • Enhanced hot water supply pipes with PP-R layers combined with structural reinforcements like glass fiber
  • Customized pipe structures with multiple functional layers for specific application requirements
Pe Co Extrusion Ppr Pipe Production Line 350kgs / H Multi Layer Tube
Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: for pipe marking lines or multi-layer pipe production

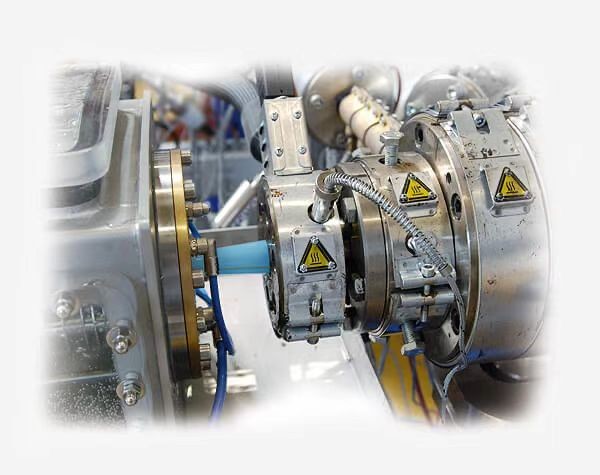

  • Die head
  • Vacuum tank: designed with single or double vacuum chambers based on pipe diameter
  • Cooling tank: configured with one, two, or three tanks according to diameter requirements
  • Haul-offs: available in double, three, four, six, eight, ten, or twelve crawler track configurations
  • Cutter: no-scraps cutter or planetary cutter options based on diameter specifications
  • Coiler/Tipping chute
Technical Parameters
Specification Model 1 Model 2
Pipe Diameter (mm) 50, 75, 90, 110, 160 75, 90, 110, 160, 200, 250
Extruder (Middle Layer) 65/132 80/156
Extruder (Outer & Inner Layer) 65/132 or 55/120 65/132
Vacuum Tank Length (mm) 6000 6000
Haul-offs Machine 3 Claw 3 Claw
Cutting Machine Planetary Cutting Planetary Cutting
Pe Co Extrusion Ppr Pipe Production Line 350kgs / H Multi Layer Tube
