Specifications
Brand Name :
LB
Model Number :
LB-63W
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
film wraping
name :
PVC Pipe Extrusion Line
Plastic :
PVC
Application :
pipe making
raw material :
pvc powder
Screw Design :
conical twin screw
Material of Screw :
38CrMoALA
Inverter :
ABB
Temperature Sensor :
Omron
Description
37AC 50-400mm PVC Pipe Manufacturing Machine
Complete PVC pipe manufacturing factory solution for producing pipes ranging from 50mm to 400mm in diameter.

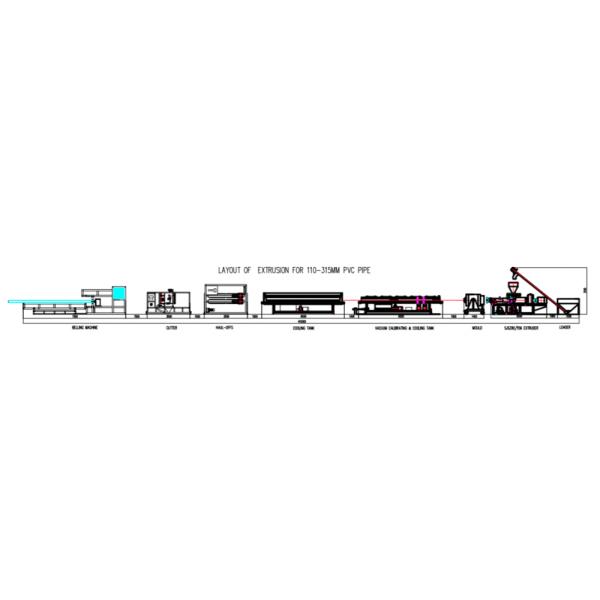

Production Process Flow
The manufacturing process begins with raw material preparation. Customers can mix PVC powder with additives themselves. The mixture is fed into the extruder where it is plasticized and extruded into the mould. The material takes shape in the mould and emerges with pipe form. The hot, soft pipe is then calibrated and cooled in the vacuum calibration tank using a vacuum sleeve. Further cooling occurs in the cooling tank. The haul off unit extracts the pipe from the extruder, and according to predefined lengths, the pipe is cut and packaged for transport.
37AC 50-400mm PVC Pipe Manufacturing Machine
Technical Specifications
Model Pipe Diameter Extruder Extruder Power Capacity
LB-32A16-32(four)SJ65/13237AC250
LB-32B16-32(four)SJ80/15655AC350
LB-50A16-50SJ45/9015AC100
LB-50B16-50(double)SJ51/10518.5AC150
LB-50C16-50(double)SJ65/13237AC250
LB-63A16-63SJ51/10518.5AC150
LB-63B16-63(double)SJ65/13237AC250
LB-16050-160SJ65/13237AC250
LB-25063-250SJ65/13237AC250
LB-315110-315SJ80/15655AC350
LB-630315-630SJ92/188110DC800
LB-800560-800SJ105/216160DC1100
Machine Components

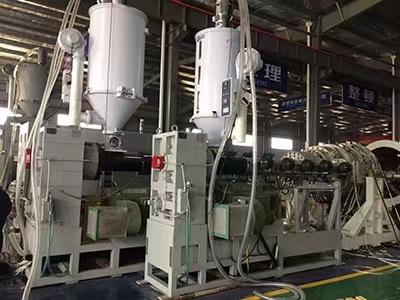

Conical Twin Screw Extruder
Designed for processing sensitive PVC compounds, our conical twin screw extruders handle materials gently to prevent shearing and overheating. Capable of processing PVC compounds, PVC-wood composites, and PP/PE-wood powder mixtures.

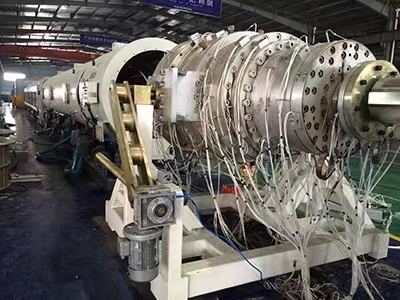

Precision Mould
Our specially designed moulds provide ideal material viscosity for optimal pipe shaping and energy efficiency. All material-contact surfaces are polished to minimize extrusion friction and ensure smooth operation.

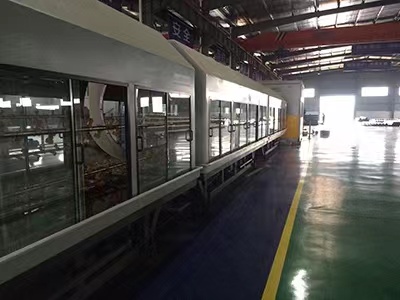

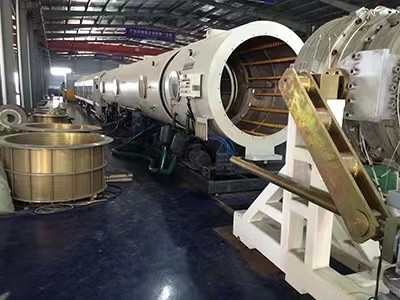

Vacuum Calibration & Cooling System
Stainless steel vacuum calibration tanks define pipe shape and surface quality. Adjustable vacuum pressure and high-performance cooling nozzles ensure precise dimensional control. Sealed gaskets prevent vacuum leakage, minimizing energy consumption.
Haul Off Unit
Available in crawler track and belt designs for pipes from 16mm to 800mm diameter. Speed synchronization with extrusion ensures uniform wall thickness. Belt units provide vibration-free operation for small pipes, while crawler tracks handle larger diameters with foam PU-coated claws to prevent slipping.
Precision Cutter
High-performance cutting systems with quality encoders ensure consistent pipe lengths. Available as saw cutter or planetary saw cutter depending on pipe diameter requirements.
Control System
Comprehensive control system featuring PLC modules, HMI panels, thermometers, and connectors for stable, precise production control and monitoring.
Optional Equipment
  • Laser marking systems for product identification
  • Ink printers for production information marking
  • Pipe stackers for automated collection after cutting
  • Socket forming machines for creating pipe connections
37AC 50-400mm PVC Pipe Manufacturing Machine 37AC 50-400mm PVC Pipe Manufacturing Machine 37AC 50-400mm PVC Pipe Manufacturing Machine 37AC 50-400mm PVC Pipe Manufacturing Machine 37AC 50-400mm PVC Pipe Manufacturing Machine 37AC 50-400mm PVC Pipe Manufacturing Machine

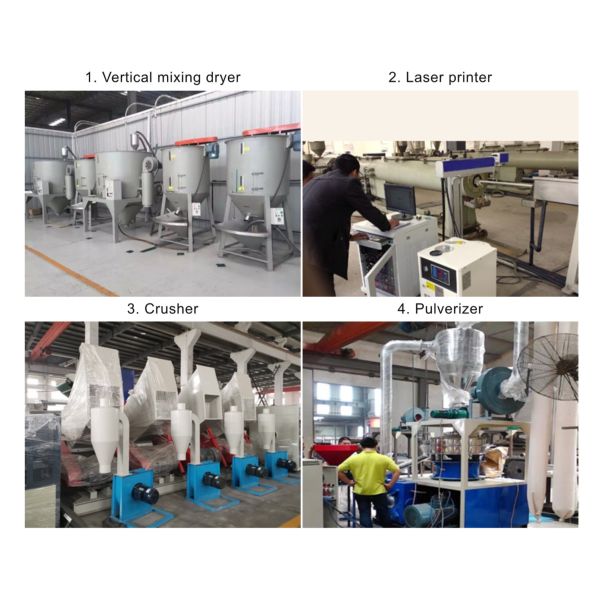

Related Auxiliary Machinery
