Specifications
Brand Name :
LB
Model Number :
LB
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Condition :
New
Inverter :
ABB
Screw Design: :
Double screw
Voltage :
380V, 50Hz, 3phase
Type :
PVC foam board making machine
Power(W) :
110kw
Description
Flame-Retardant PVC Foam Board Extrusion Line
Professional PVC Foam Board Manufacturing Solution

This advanced PVC foam board extrusion line specializes in manufacturing flame-retardant PVC foam boards, furniture foam boards, and construction boards through precision plastic extrusion processes.

LANGBO MACHINERY, a leading PVC foam board machine manufacturer in China, delivers equipment with exceptional stability, superior quality, and competitive pricing. Our comprehensive service includes detailed project reports, investment analysis, and professional installation support.

PVC foam boards serve as excellent alternatives to traditional wood materials in furniture and construction applications, offering lighter weight, cost-effectiveness, and environmental benefits.

ABB PVC Foam Board Sheet Extrusion Line Flame Retardant
Technical Specifications

Production Capacity: 1200mm width boards with 5-20mm thickness (customizable)

Complete Line Configuration: Main extruder, T-die, calibration table with foaming mold, cooling bracket, film laminator, cutting machine, and stacker

Versatile Application: Can produce solid PVC sheets for furniture and indoor flooring with appropriate die and downstream equipment modifications

Material Properties
  • Excellent chemical resistance
  • High strength-to-weight ratio
  • Superior flame resistance
ABB PVC Foam Board Sheet Extrusion Line Flame Retardant
Production Process Flow

Mixing → Feeding → Extrusion → Forming and Cooling → Cooling → Hauling Off → Cutting

ABB PVC Foam Board Sheet Extrusion Line Flame Retardant
Product Specifications

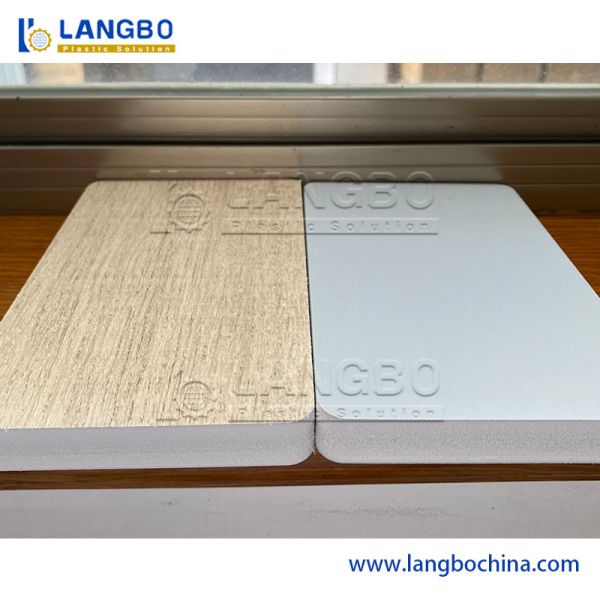

Product Name PVC Foam Board / PVC Foam Sheet
Thickness 1-25mm
Size 1220*2440mm, 1560*3050mm, 2050*3050mm, or customized
Density 0.43-1.05g/cm³
Features Sound insulation, Heat insulation, Moistureproof, Waterproof
Production Line Components
No. Name Type Quantity
1. 500/1000 Hot and Cold Mixer SRL-Z500/1000 1 set
2. 200/500 Hot and Cold Mixer SRL-Z200/5000 1 set
3. Automatic Feed Loader ZJF500 1 set
4. Conical Twin Screw Extruder SJSZ80/156 1 set
5. Conical Twin Screw Extruder SJSZ65/132 1 set
6. Mould / 1 set

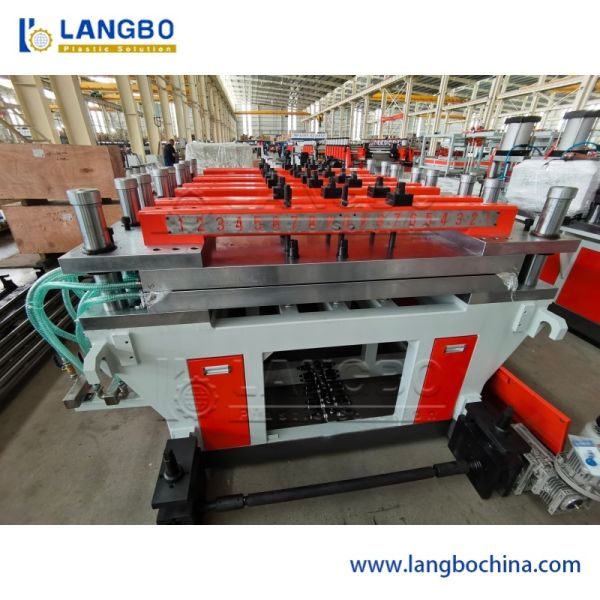

7. Calibration Platform ZKDX-1220 1 set
8. Bracket TJ-2000 1 set

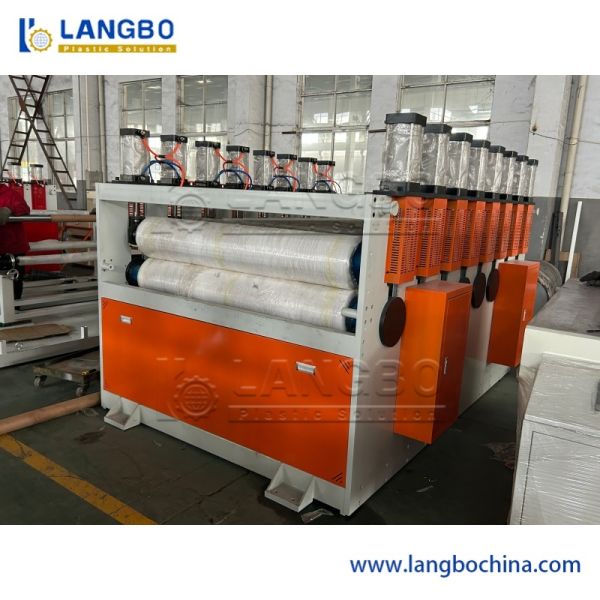

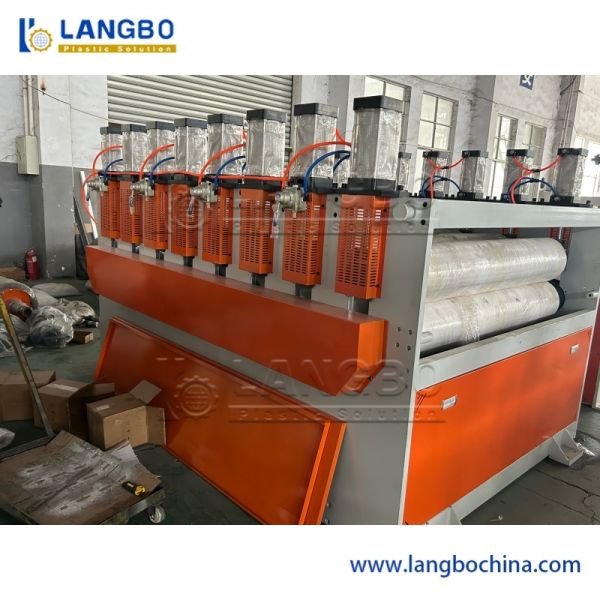

9. First Haul Off Machine & Edge Cutter SLQ-1220 1 set

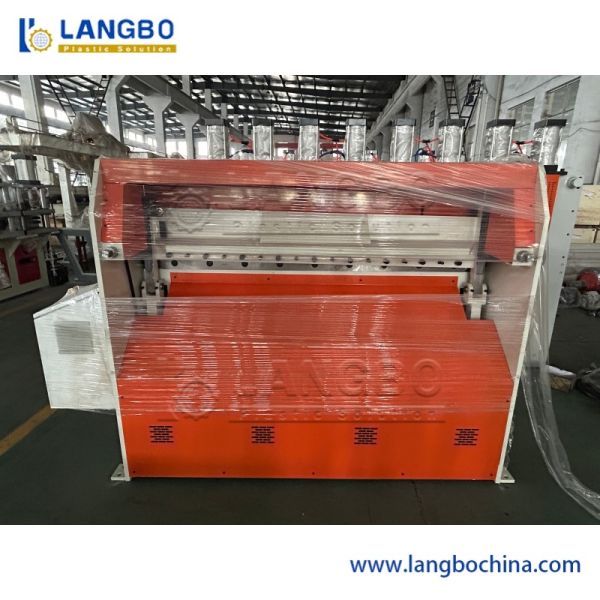

10. Cross Cutter HQG-1220 1 set
11. Stacker BFL-1220 1 set
12. Crusher SWP400 1 set
13. Miller SMF-400 1 set

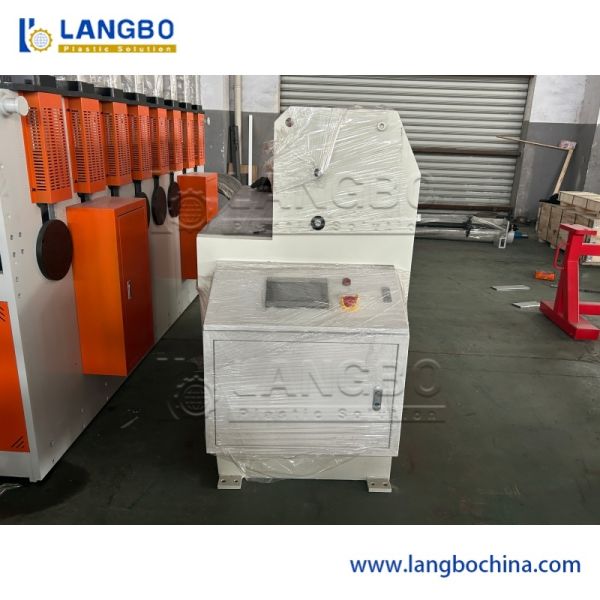

Electrical Specifications
Component Specification
Main Motor Frequency Controller or ABB
Temperature Controller OMRON or RKC
AC Controller Schneider or (customizable)
Thermal Overload Relay Schneider
Switch DELIXI or Schneider
All Electrical Units Standard components from OMRON, RKC,
