65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
Specifications
Brand Name :
LB
Model Number :
LB-160
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Extruder type :
Conical twin screw extruder
Extruder model :
65/132
Raw material :
PVC powder and additives
Final Product Application :
Water supply pipe and drainage pipe
Motor :
45kw
Gearbox :
"Jiangyin" gearbox
Control system :
PLC
Inverter :
ABB frequency
Temperature Sensor :
Omron
Haul off :
Two haul off machine
Cutter :
Saw cutter
Description
65/132 PVC Pipe Extrusion Line with 45kW ABB Frequency Inverter
High-Performance PVC Pipe Extrusion Line with Superior Surface Quality
Product Overview
This advanced extrusion line is specifically designed for manufacturing CPVC pipes with diameters ranging from 75-160 mm and various wall thicknesses. Ideal for producing water supply pipes and electrical conduit pipes, this system meets global demand for high-quality PVC piping solutions. Our commitment to excellence ensures reliable performance and mutual success through superior machinery.
Technical Specifications
Model LB63 LB110 LB250 LB315 LB630 LB800
Pipe Diameter 20-63mm 20-110mm 75-250mm 110-315mm 315-630mm 500-800mm
Extruder Model SJ65 SJ75 SJ90 SJ90 SJ120 SJ120+SJ90
Motor Power 37kw 55kw 90kw 160kw 280kw 280KW+160KW
Extrusion Capacity 100kg/h 150kg 220kg 400kg 700kg 1000kg
Production Process Flow
  • PVC powder + additive mixing
  • Material feeding system
  • Twin screw extruder processing
  • Mould and calibrator shaping
  • Vacuum forming machine
  • Spray cooling system
  • Haul-off machine
  • Cutting machine
  • Discharge rack or pipe belling machine
The extruder screw features advanced design for optimal PVC plasticization, supported by PLC control system for convenient operation. The integrated degassing system ensures superior quality of final PVC pipes.
Vacuum calibration and cooling units utilize 304 stainless steel tank bodies with multi-section vacuum systems for stable pipe sizing and cooling. Specialized cooling technology enhances efficiency, while automated water temperature control provides intelligent operation.
Haul-off machines are available with 2, 3, 4, or 6 crawler tracks to accommodate different pipe sizes. The pedrail clamping system combines mechanical and pneumatic technologies for reliable performance.
Cutting systems employ dust-free or planetary cutting methods with integrated dust-collection systems to maintain clean working environments.
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter

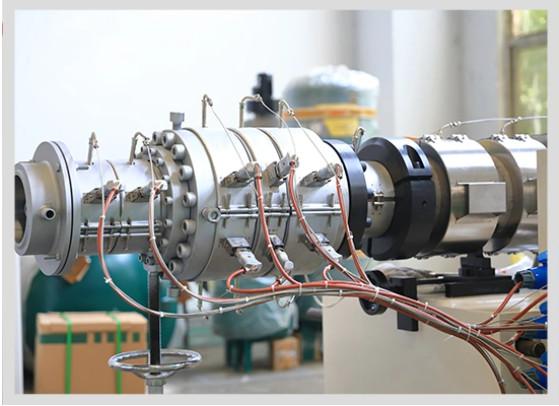

Extruder & Vacuum Tank
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter

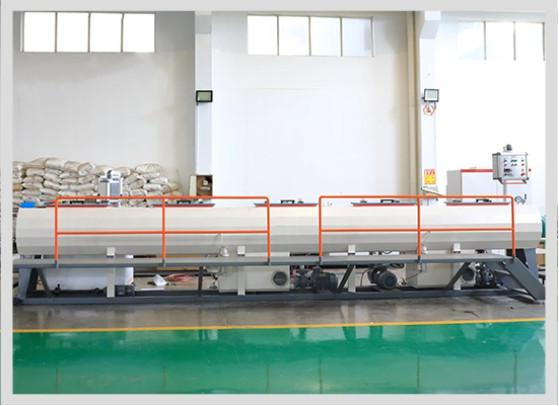

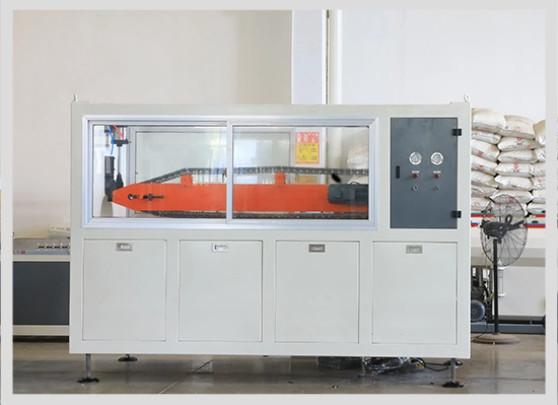

Haul-off Machine & Vacuum Tank
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
65/132 Pvc Pipe Extrusion Line 45kw ABB Frequency Inverter
Cutting Machine & Haul-off System
Technical Data
Model LB160 LB250 LB315 LB630 LB800
Pipe Size 50~160mm 75~250mm 110~315mm 315~630mm 500~800mm
Extruder SJZ65/132 SJZ80/156 SJZ92/188 SJZ92/188 SJZ92/188
Motor Power 37kw 55kw 90kw 110kw 132kw
Output 250kg 350kg 550kg 600kg 700kg
