Specifications
Brand Name :
LB
Model Number :
LB-250
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Extruder type :
Conical twin screw extrusion machine
Screw and barrel model :
80/156
Motor :
55kw
Capacity :
400kg/h
Raw material :
PVC resin and Caco3
Inverter :
ABB frequency
Gearbox :
Chinese famous brand
Motor brand :
-beide
Application :
water supply pipe, electrical conduit
Haul-off :
Three s
Cutter :
Planetary cutter
Loader :
Spiral feeder for extruder
Vacuum tank :
6 meter long
All connection :
SUS304
Calibrator :
Copper
Mould material :
40Cr or 3Cr13
Description
UPVC 75-250mm PVC Pipe Extrusion Line Machine with 80/156 Extruder
Langbo Machinery brings over 15 years of expertise in plastic extrusion technology. Our UPVC pipe extrusion lines are custom-designed to meet specific customer requirements, delivering superior quality pipes with extended operational lifespan.
Key System Components
  • -Biede motor power with PLC control touch screen interface
  • Premium Chinese brand screw and barrel components
  • or Schneider electrical control systems
  • 6-meter SUS304 stainless steel vacuum tank
  • Three-crawler track haul-off unit for stable operation
  • Planetary cutting system for precise pipe cutting
Technical Specifications
Standard Model Range
Model Pipe Diameter Extruder Model Motor Power Extrusion Capacity
LB63 20-63mm SJ65 37kw 100kg/h
LB110 20-110mm SJ75 55kw 150kg/h
LB250 75-250mm SJ90 90kw 220kg/h
LB315 110-315mm SJ90 160kw 400kg/h
LB630 315-630mm SJ120 280kw 700kg/h
LB800 500-800mm SJ120+SJ90 280KW+160KW 1000kg/h
Production Process Flow
PVC powder + additive → Mixing → Material feeder → Twin screw extruder → Mould and calibrator → Vacuum forming machine → Spraying cooling machine → Haul-off machine → Cutting machine → Discharge rack or pipe belling machine
Advanced System Features
  • Advanced screw design ensures optimal PVC plasticization
  • PLC control system for convenient operation
  • Integrated degassing system guarantees final pipe quality
  • Stainless steel 304# vacuum calibration and cooling units
  • Multi-section vacuum system for stable sizing and cooling
  • Specialized cooling system enhances efficiency
  • Automatic water temperature control for intelligent operation
  • Configurable haul-off systems (2-6 crawler tracks) for different pipe sizes
  • Mechanical and pneumatic pedrail clamping for reliable performance
  • Dust-free planetary cutting with integrated dust collection
UPVC 75- 250mm Pvc Pipe Extrusion Line Machine With 80/156 Extruder
UPVC 75- 250mm Pvc Pipe Extrusion Line Machine With 80/156 Extruder
Extruder
UPVC 75- 250mm Pvc Pipe Extrusion Line Machine With 80/156 Extruder

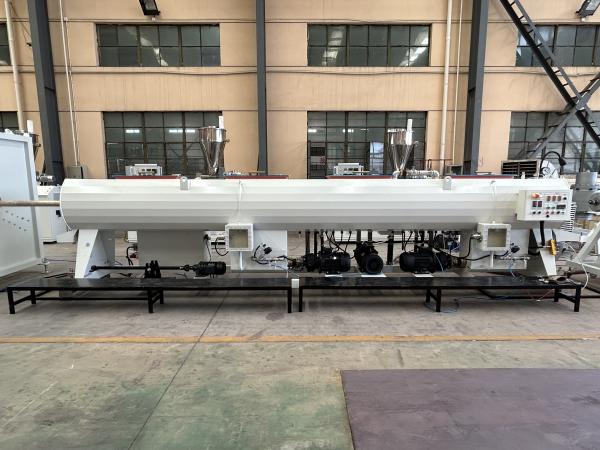

Vacuum Tank
UPVC 75- 250mm Pvc Pipe Extrusion Line Machine With 80/156 Extruder
Haul-off Machine
Detailed Technical Data
Model Pipe Size Extruder Motor Power Output
LB160 50-160mm SJZ65/132 37kw 250kg
LB250 75-250mm SJZ80/156 55kw 350kg
LB315 110-315mm SJZ92/188 90kw 550kg
LB630 315-630mm SJZ92/188 110kw 600kg
LB800 500-800mm SJZ92/188 132kw 700kg
