Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
Specifications
Brand Name :
LB
Model Number :
LB-16-630A
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
16-630
EXTRUDER'S POWER :
22KW-160KW
CUTTER :
PLANETARY CUTTER
WATER PIPE DIAMETER :
20-630MM
APPLICATION :
WATER PIPE
BELLING MACHINE :
NEEDED
Description

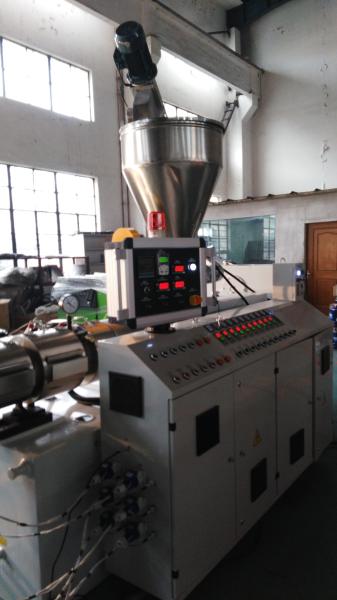

Twin Scrw Extruder 16-630mm PVC Pipe Extrusion Line With 22-160KW Power

EXTRUDER FOR PVC COMPOSITE

The Energy-efficient extruders can ensure optimal homogenization, high outputs and excellent product quality. They are an integral part of the complete production line portfolio for plastics extrusion.

Conical twin screw extruder can be used to process the PVC composites and natural fiber-rein-forced plastics such as WPC (wood plastic composites). With an optimized design and logic combination of core components our extrusion line has other benefits such as stable material feeding, gentle, non-destructive processing and highly stable screw pressure for the production. So that the homogeneous melt with optimum temperature will be extruded.

COMPONENTS INTRODUCTION

A Extruder for PVC Pipe Production Line consists of following components:

  • Driving motor: equipped with famous brand motor as driving source
  • Gearbox: equipped with famous brand gearbox to ensure the maximum output of power
  • Screw & barrel: With optimized screw geometries and metallurgical solutions, we can provide the best possible process technology for every material and every application. screw core is equipped with device of temperature regulation of oil as medium and barrel is equipped with air blower as cooling device. The designing of screw and barrel will adapt the reasonable and optimal structure based on the characteristics of the formula of raw material ensure to get the plasticizing and melt stream for plastics.
  • Control system: equipped with famous brand electrical components ensure to get the accurate control.

SPECIFICATIONS:

MODEL PIPE DIAMETER(MM)

EXTRUDER MODEL

 MOTOR POWER (KW)
LB-63A 16-63 SJSZ51/105 22 AC
LB-63B 16-63(DOUBLE PIPE) SJSZ65/132 37 AC
LB-160 50-160 SJSZ65/132 37 AC
LB-250A 63-250 SJSZ65/132 37 AC
LB-250B 63-250 SJSZ80/156 55 AC
LB-315 110-315 SJSZ80/156 55 AC
LB-630 315-630 SJSZ92/188 110 DC


Twin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW PowerTwin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW PowerTwin Screw PVC Pipe Extruder Line 16 - 630mm With 22 - 160KW Power
