Specifications
Brand Name :
LB
Model Number :
LB
Certification :
CE,ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C,T/T,
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Voltage :
380V/220V
Condition :
New
COLOUR :
BLACK, ORANGE
outlet :
single outlet
pipe range :
16-110mm PE pipe
capacity :
MAX. 350KG
Screw design :
Single-screw
Automatic grade :
Full-automatic
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Warranty :
1 Year
Color :
Customised
Control :
PLC+Touch Screen
Description

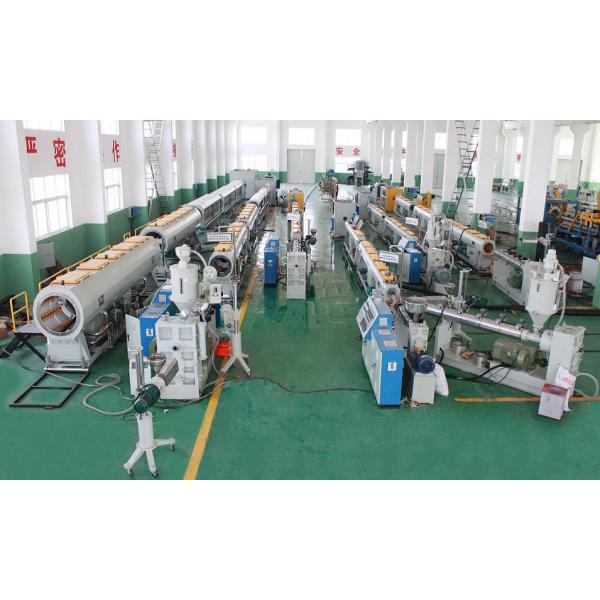

110-315mm High Speed PE Pipe Extrusion Line
Advanced extrusion system designed for high-capacity production of PE, PP-R, PE-RT, and PB pipes with maximum output of 350KG/H.
Product Overview
PP-R, PE-RT, and PB pipes are widely used in residential applications including cable protection, hot water supply, and house heating systems. This production line features high-efficiency single screw extruder technology with PLC control system for complete automation and stable extrusion performance.
Key Advantages
  • High-speed extrusion capability up to 30m/min for PE, PPH, PPR, PPB, PERT, and PB materials
  • L/D=38 double mixer and barrier screw design ensures 100% plasticization
  • Spiral groove feeding system increases productivity by 30%
  • Spiral mandrel die design eliminates flow channel delays and improves pipe quality
  • Special disc design on calibration sleeves supports high-speed extrusion
  • Dual-strand vacuum tank with individual control for operational flexibility
  • Double haul-off system with individual control and upper crawler track belt stop device
  • Chipless cutter design with motor drive and synchronous belts for reliable high-speed cutting
LANGBO MACHINERY Technology
Developed as a new generation pipe production line for PE, PP, and other polyolefin materials, this system features advanced PLC/PCC modular intelligent control for complete automation, real-time data recording, and closed-loop control. The production line delivers high yield, wide raw material adaptation, and sustained production of quality products.
Technical Specifications
Model Pipe Spec (mm) Extruder Max Output (kg/h) Total Power (kw)
LB63-PE Φ 20-Φ63 SJ65/38 250-300 75
LB110-PE Φ 63-Φ110 SJ65/38 250-350 90
LB250-PE Φ 75-Φ250 SJ75/38 500-550 185
LB450-PE Φ 160-Φ450 SJ90/38 700-750 250
LB630-PE Φ 315-Φ630 SJ120/38 900-1100 280
LB800-PE Φ 400-Φ800 SJ150/35 1000-1200 315
LB1000-PE Φ 630-Φ1000 SJ150/38 1000-1200 315
LB1200-PE Φ 800-Φ1200 SJ120/33 & SJ90/38 1500-1700 280/220
