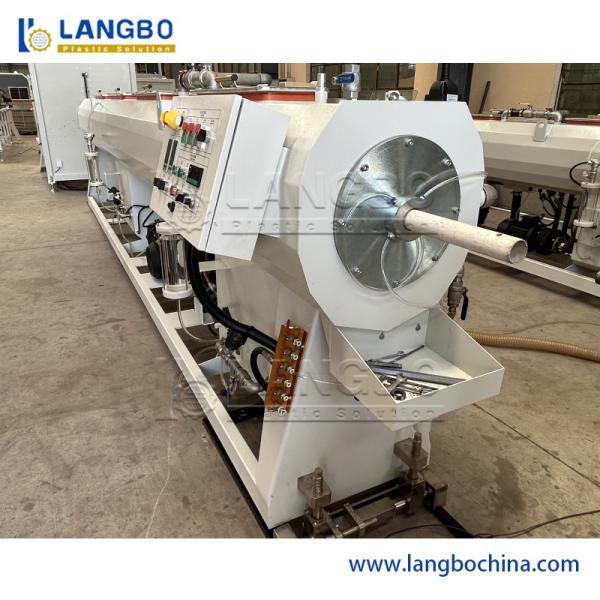

PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
Specifications
Brand Name :
LB
Model Number :
LB-200
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, China
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
name :
PVC Pipe Extrusion Line
Screw concept :
conical twin screw
warranty :
12 month
capacity :
300kgh
raw material :
pvc powder
Motor :
Siemens
Temperature Controller :
Omron
After Sale service :
on site commission
Packing :
Export standard packing method
Electrical commponents :
Siemens or Schneider
Gearbox :
DELING
Description
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
Product Overview

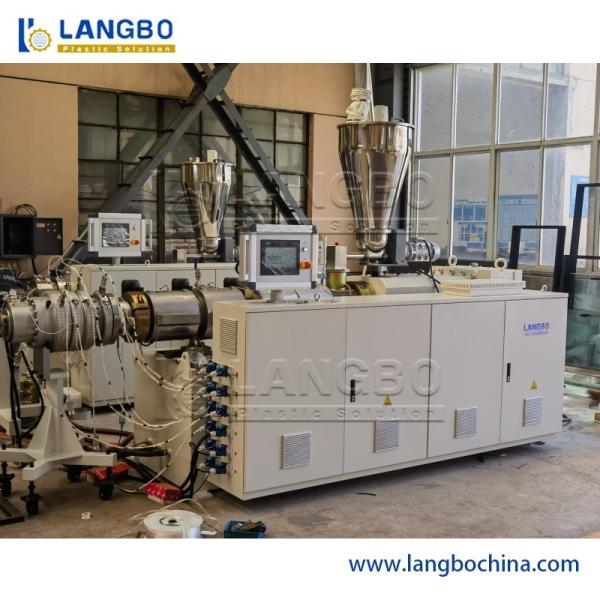

The SJZ series conical twin-screw extruder is specialized equipment for extruding PVC compound. With various molds and auxiliary machines, it can produce PVC plastic pipes, profiles, plate materials, sheet materials, bar materials, and perform granulation.
Key Features
  • Oil cooling system applied to conical twin screws with special wind cooling for the barrel
  • Computer-controlled system allowing customized screw structures for optimal plasticity and material quality
  • High-precision digital screw milling ensures harmonized extruding properties
  • Advanced variable pitch and depth screw technology for gentle material shearing and cutting
  • Specially designed distribution box with fully imported pull force bearing for extended drive life
  • Electrical system with imported components, multiple alarm systems, and easy troubleshooting
  • Special cooling design with enlarged heat emission area and rapid cooling (±1°C temperature control)
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
Technical Parameters
Extruder SJZ-65/132 SJZ-80/156 SJZ-92/188
Pipe Size Φ 16-Φ63MM Φ 50-Φ110MM Φ 90-Φ160MM
Mould Double outlet Double outlet Double outlet
Downstream GF63-2 GF110-2 GF160-2
Total Power 109.5KW 145KW 250KW
Total Length 22.2M 27M 28.8M
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
Comprehensive Service Support
No. Item Details
1 Formula Support We provide basic formulas for each project and assist with adjustments according to specific requirements
2 Installation Support Our engineers assist with machine installation at customer facilities
3 Operation Support Comprehensive machine operation and maintenance training provided
4 Fast Response Quick technical support and troubleshooting assistance
PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube PVC Plastic Pipe Manufacturing Machine Capacity 300kg / PVC Tube
