Specifications
Application :
pipe making
Name :
PE Pipe Extrusion Line
Inverter :
ABB
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Brand Name :
LB
Model Number :
LB
Certification :
CE / ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Screw Design :
Single screw
Electrical components :
Schneider
Automatic grade :
Fully automatic
Raw material :
PE granules
Voltage :
380V 50HZ 3Phase(Customized)
Motor :
Beide
Control :
PLC+Touch Screen
Plastic Process :
PE
Temperature contrller :
Omron
Description
Single Screw HDPE Pipe Extruder Machine With Omron Temperature Controller
This single screw HDPE pipe extruder machine features an Omron temperature controller and is designed for efficient production of PE, PP, and PPR pipes for various industrial applications.
Quick Details:
Complete PE, PP, PPR pipe extrusion equipment including extruder, vacuum calibrator, hauling machine, cutter, and tipping rack. Multiple hauling options available including crawler track type, three-claw type, four-claw type, and six-claw type.
Configuration
  • Low consumption single screw extruder with 33:1 L/D ratio
  • Nitriding layer thickness: 0.4-0.7mm
  • Stainless steel vacuum sizing water tank for enhanced durability
  • Customizable molds according to customer requirements
Applications
Primarily used in the production of water supply and drainage pipes for agricultural and construction applications, cable coating, and various other industrial fields.
Key Features
  • Multiple screw specifications available using high-quality 38CrMoAlA material with nitriding treatment
  • Complete set of molds for different diameter pipe production
  • High-level vacuum spraying and cooling system for effective pipe shaping
  • Stainless steel material barrel with recycling water device for optimal temperature control
  • Automatic length accounting device for precise cutting
  • Multiple cutting options: non-chipping machine, planetary cutting machine (for large diameter pipes), and saw blade cutting
  • Pneumatically controlled stacker with stainless steel main components
Production Line Specifications
Model Screw Diameter L/D Ratio Production Speed Machine Total Power Machine Size
SJ65/33 65mm 33:1 25m/min 55kw 27x1.5x3
SJ60/38 60mm 38:1 35m/min 110kw 34x1.5x3
SJ75/38 75mm 38:1 45m/min 160kw 58x2.5x3

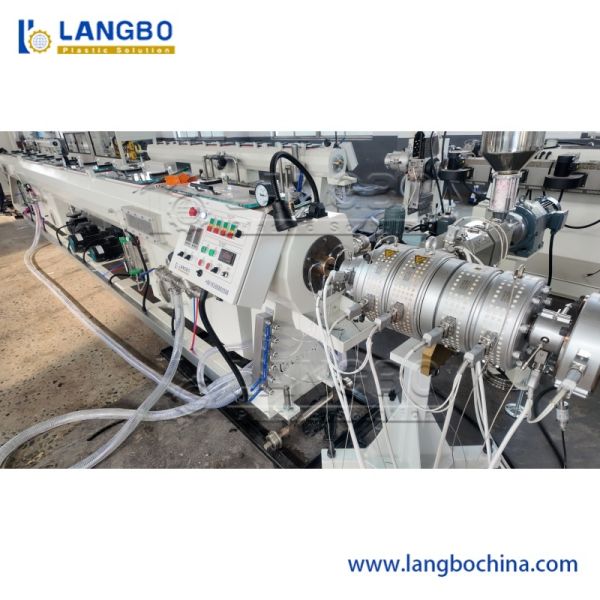

Product Images
Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making
