75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H
75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H
75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H
75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H
75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H
75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H
Specifications
Brand Name :
Sino-holyson
Model Number :
SJZ80/156
Place of Origin :
QINGDAO
MOQ :
1set
Price :
$90000/set
Payment Terms :
L/C, T/T
Supply Ability :
500sets/year
Delivery Time :
45 work days
Packaging Details :
Wooden boxes and plastic base packaging
Machinery Test Report :
Provided
Screw diameter (mm) :
80
Voltage :
220V/380V/440V
Power (kW) :
75kW
Color of board extruder :
All Color Feasible according to Customers' Requirements
Inverter brand :
Switzerland "ABB" Brand
Motor :
SIEMENS Brand
Capacity :
300-400kgh
Description

Qingdao Sino-holyson Hot Sale 80 156 PVC WPC NFC Wood Composite Furniture Foam Board Making Machine

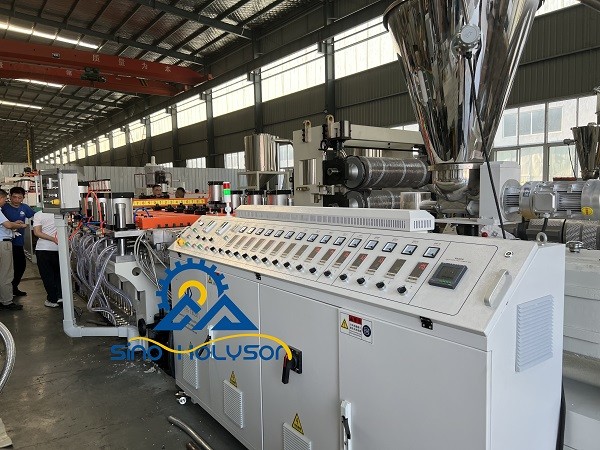

WPC PVC Foam Board making machine

Product Description:

Plastic board extrusion line is used to produce plastic board with width from 600 to 1830mm, which are effective,safe
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity

Our PVC foam board machine includes the special Twin-screw extruder, mould and other auxiliary machines. We use twin-screw extruder with compact structure, superior performance. Besides the screw and barrel and die are designed by our company and made in world famous manufacturers. And use the high-performance alloy steel for professional processing. So the machine has the advantages of uniform plasticizing, stable extrusion, high output, and long life. We can supply you the best material formulation and all of technology

75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H

Process Flow:

Wood powder making machine→Mixer machine→WPC PVC Foam board exrtusion line→WPC PVC Foam board surface treatment machine (Paint printing, Filming and Hot pressing equipment)

Model 80/156 80/173 92/188
width of product 1220mm 1560mm 1560mm/1830mm
Extruder Model SJSZ80 SJSZ80 SJSZ92
Extruder Capacity 300-400kg/h 500-600kg/h 700-800kg/h
Motor Power 75KW 90KW 110KW
Total Length 40 42 45

Conical twin screw extruder

(with automatic feeding system)

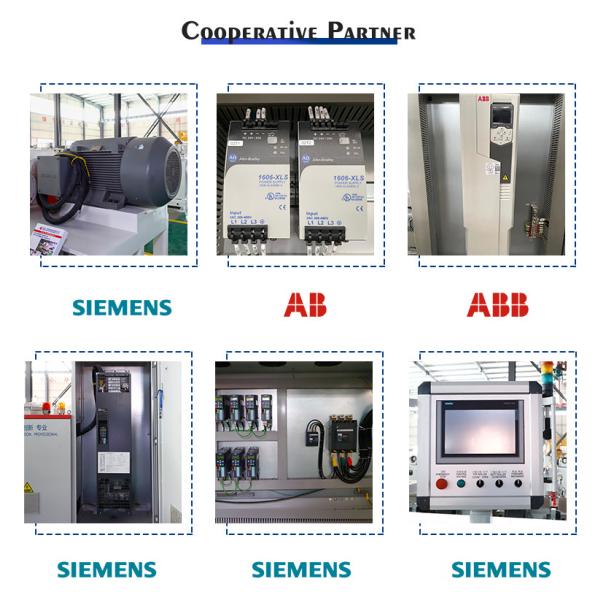

(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider

(6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.
Mold (1) Material: 40GR
(2) Size: Customized
Vacuum calibration and cooling table

(1) Material: Stainless steel
(2) Method: Enforced spraying

(3) Diameter: Customized
(4) Length: 6 m
Haul off machine

(1) Driving motor power: 2.2 kw

(2) Transducer: Siemens transducer
(3) hauling track type:110 plastic block
(4) Pressing method:Pneumatic pressing
Cutting machine (1) Motor power: 3 kw
(2) Method: Saw cutting
(3) Cutting scope: Customized
(4) PLC control system, using meter counter or sensor switch for the setting of desired length.
Stacker (1) Material: Stainless steel
(2) Unloading method: Pneumatic unloading

75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H

75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H

75kW WPC PVC Foam Board Making Machine 300kg/H-400kg/H

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?
A: Sino-holyson Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines and total revenue is about USD 2500000

Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line?
A: Yes
Q:How many QA/QC inspectors in total?
A: 4

Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)
