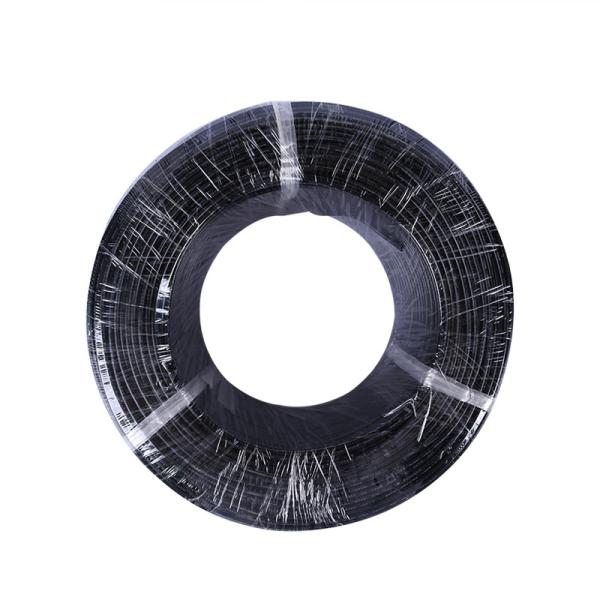

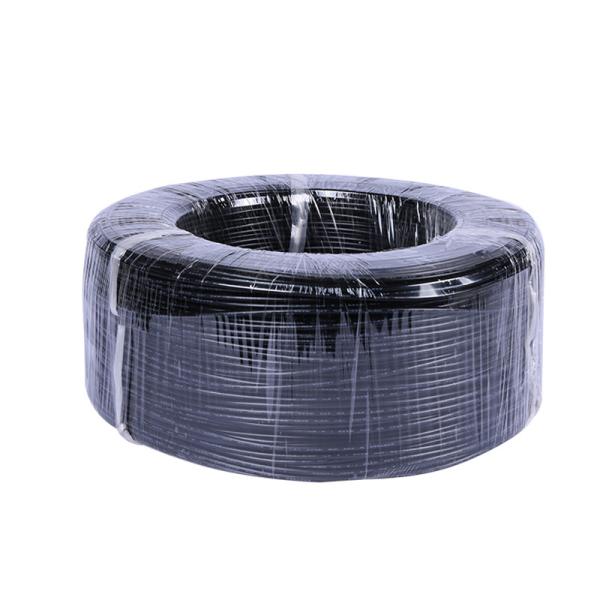

UL1015 450 750V PVC Insulated Stranded Nylon Wire
UL1015 450 750V PVC Insulated Stranded Nylon Wire
UL1015 450 750V PVC Insulated Stranded Nylon Wire
UL1015 450 750V PVC Insulated Stranded Nylon Wire
Specifications
Brand Name :
YANGDA
Model Number :
RVVP
Certification :
UL,CSA,VDE
Place of Origin :
CHINA
MOQ :
3050M
Price :
0.25 USD PER METER
Payment Terms :
T/T
Supply Ability :
1000000 PER WEEK
Delivery Time :
10DAYS
Packaging Details :
CARTON
Product name :
1015 PVC wire
Conductor material :
Copper,tinned or bare copper
Application :
Overhead, For indoor small electrical instruments, Housing project or Building, Underground
Insulation material :
PVC
Color :
yellow,customized
Conductor :
Tinned or Bare,stranded or solid copper,copepr,Copper Core
Rated voltage :
600V,300/500V 450/750V
Voltage :
low medium voltage
Insulation :
PVC Insulation Cable
Description
UL1015 450/750V PVC Wire PVC Insulated Nylon Electrical Wire Stranded
Products Application
The PVC insulted wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They
are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with
rated voltage up to 450/750v(U0/U).Part of the plastic insulted wires are used at the equipment with AC rated voltage up
to 300/300v.
Product Construction
The rated voltage of wires should equal to or higher than rated voltage of the system when wires are used at AC system.
If the wires are used at DC system, rated voltage of system should be lower than 1.5 times as high as rated voltage of
cable and wires. The working voltage of system could be 1.1 times as high as the rated voltage of cable.
The long term working temperature should lower then 70 °C . The working temperature of BV-90 should lower then 90 °C .
And laying temperature should higher than 0 °C .
The curve diameter of wire should longer than 8 times of diamet er of the outer diameter of cable and wires if their outer
diameter is 25 mm or above. If diameter of cable and wires is above 25 mm, curve diameter should be at least 12 times
of outer diameter of cable and wires.

Specification
Prouduct Name
UL 1015 PVC Insulated Wire
Nominal Voltage:
600V
Temperance Range:
30℃~105℃
O.D.Tolerance:
±0.10mm
Testing Voltage:
2000V
Conductor:
Bare & Tinned Copper
Insulation:
PVC
Colours:
White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

Properties:

Has good mechanical, electrical insulation, and chemical properties. It also has the property of anti-electromagnetic wave due to the shielded structure..

Working Voltage:

<0.75mm²:300/300V

≥0.75mm²:300/500V

Standards:

JB8734.4-1998 GB5023.5-2008
