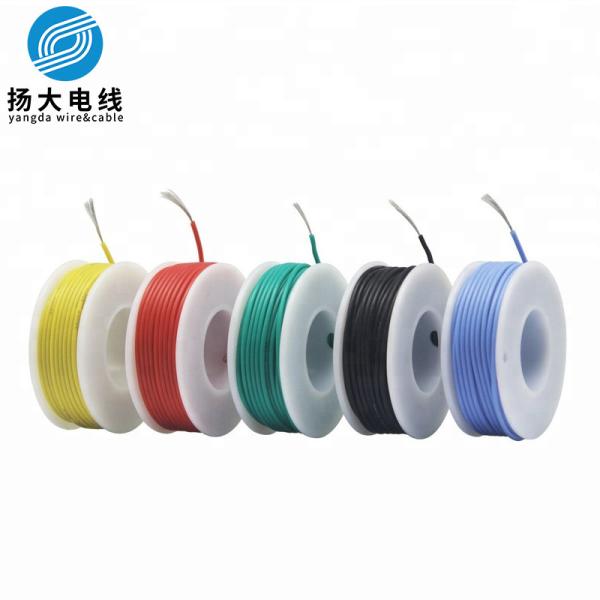

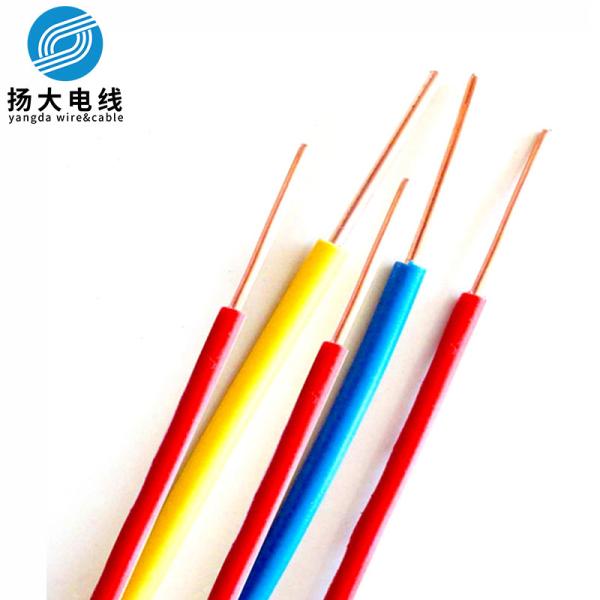

Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
Specifications
Brand Name :
YANGDA
Model Number :
1571
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100M
Price :
0.032 USD/M
Payment Terms :
T/T
Supply Ability :
2000000M PER WEEK
Delivery Time :
7DAYS
Packaging Details :
CARTON
MATERIAL :
PVC
COLOR :
CUSTOMIZED
VOLTAGE :
300V
STANDARD :
UL
Description

Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire

All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European UnionRoHS environmental protection instruction.

1.Rated temperature:80ºC

2.Rated voltage:300v

3.according to:UL subject 758,UL1581

4.Solid or Stranded,tinned or bare copper conductor 30-16AWG

5.SR-PVC insulation.

6.Passes UL VW-1 & CSA FT1 Vertical flame test

7.uniform insulation thickness of wire to ensure easy stripping and cutting

8.Environmental testing pass ROHS

Name UL AWG 10 single core copper PVC UL1571 electric cable wire
Type UL1571
Conductor 50AWG Minimum Solid or stranded copper
Insulation Extruded PVC,SR-PVC
Rated Temperature 80 ℃
Rated voltage 30V
Standard UL758,UL1581,CSA22.2
Shield Optional
Jacket Optional
Test VW-1 &CSA FT1 Vertical test
Certificate UL ROHS
Color White, blue, red, black,yellow,green, transparent,yellow-green
Application Internal wiring of appliances or electronic equipment.
Packing Rolls or as customer's requirement
MOQ 5000M each size for Cable wire
Delivery time 20 days for Cable wire

Rated temperature:80℃

Rated voltage:30V

Reference standard:UL758,UL1581,CSA C22.2No.210.2

Solid or stranded, tinned or bare copper conductor 32~16AWG

PVC insulation, comply with ROHS, REACH environmental standard

Passes UL VW-1, CSA FTI and JQA F-Mark flame test

Uniform insulation thickness to ensure easy stripping and cutting

Application:

For general purpose internal wiring of appliance

Conductor Insulator Jacket Eletrical Characteristic Packing
AWG Cobductor construction NO. X Φ mm Insulator Thick mm Over Diamter mm Spiral shickness Jacket Thick mm Over Diameter mm Realst.max Cuc, c 20℃

Ω/km

 (A) Mt/coils
30 7 x 0.102 0.23 0.8±0.1 376.96 2 610
28 7 x 0.127 0.9±0.1 237.25 2.5 610
26 7 x 0.16 1.0±0.1 148.94 3 610
24 11 x 0.16 1.15±0.1 93.25 4 610
22 17 x 0.16 1.3±0.1 55.00 6 610
30 7 x 0.102 0.23 0.8± 0.08 25/0.1 0.3 1.7±0.1 376.96 2 610
28 7 x 0.127 0.9± 0.08 28/0.1 1.8±0.1 237.25 2.5 610
26 7 x 0.16 1.3± 0.1 32/0.1 1.9±0.1 148.94 3 610
24 11 x 0.16 1.4± 0.1 36/0.1 2.05±0.1 93.25 4 610
22 17 x 0.16 1.6± 0.1 40/0.1 2.2±0.1 55.00 6 610

Ul Factory Low Voltage Wire Awm Ul1571 24 Awg Pvc Insulated Tinned Copper Stranded Hook-Up Wire
