Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
Specifications
Brand Name :
Purple Horn
Model Number :
WT40100
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Dollar 11000-45000$
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets/year
Delivery Time :
20-40 working days
Packaging Details :
Wood box+wood pallet+stretch film package
Shaft design :
Single shaft
Applicable material :
PP PE ABS PET HDPE LDPE PC Nylon
Shredding capacity :
300-3000kg/h
Blade material :
SKD-11 or customized
Motor brand :
Siemens beide
Voltage :
380V/50Hz/3Phase or customized
Description

Waste Plastic Single Shaft Lump Pipe Barrel Drum Shredder Machine

Single shaft shredder/shredding machine is used to pre-crush different kinds of plastic materials, especially very large and hard plastics such as lumps,barrels,pipes wood, die material, big block material, baled film to small particles for easy reprocessing, storage and transportation, creating new value from reusable wastes.
Our company have many years' experience in manufacturing the plastic shredder & crusher machine, we can produce different type and different capacity shredder machine according to your requirement.


Features
1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise, blades are easily changeable.
3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.


Technical Data of single shaft shredder machine

Item/Model WT2260 WT4080 WT40100 WT40120 WT40150 WT48150
Shaft width(mm) 600 800 1000 1200 1500 1500
Hydraulic Journey 500mm 850mm 850mm 950mm 950mm 950mm
Shaft Dia.(mm) φ220 φ400 φ400 φ400 φ400 φ480
move blades Qty(PCS) 26 46 58 70 88 132
Main motor(KW) 18.5 37 45 55 75 90
Hydraulic(KW) 2.2 3.75 3.75 5.5 5.5 5.5
Weight(KG) 1550 3600 4000 5000 6200 8000

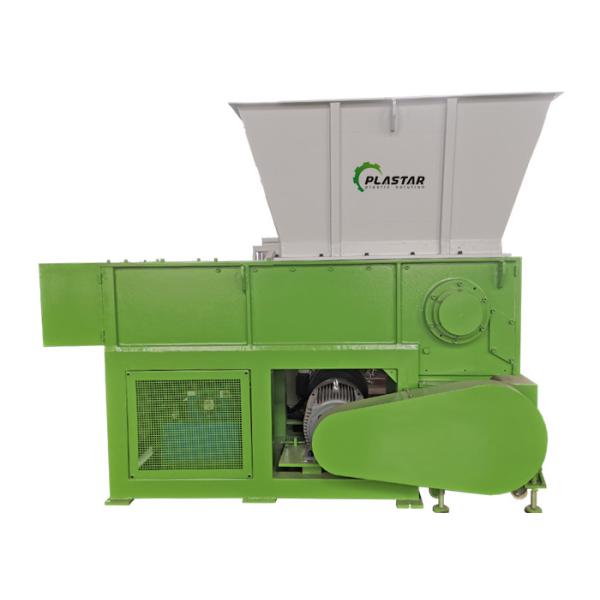

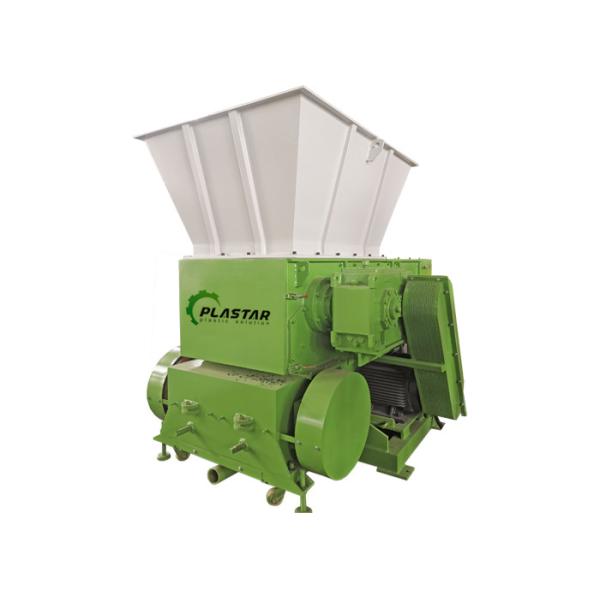

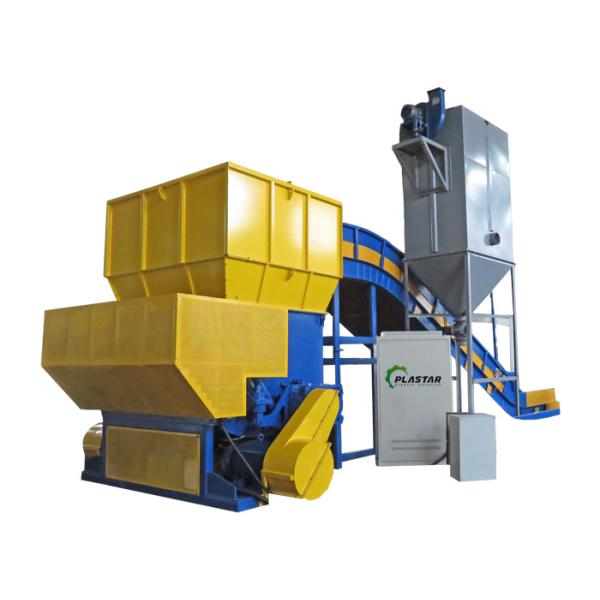

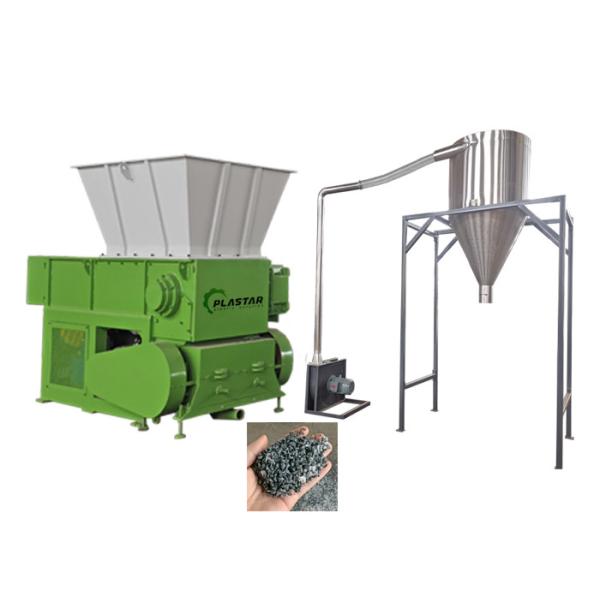

Machine pictures for reference:

Waste Plastic Plastic Shredder Machine Single Shaft Lump Pipe BarrelWaste Plastic Plastic Shredder Machine Single Shaft Lump Pipe BarrelWaste Plastic Plastic Shredder Machine Single Shaft Lump Pipe BarrelWaste Plastic Plastic Shredder Machine Single Shaft Lump Pipe Barrel
