10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
Specifications
Brand Name :
Purple Horn
Model Number :
SHR10
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 2500-8500$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
20-30 working days
Packaging Details :
Standard export package
Total volume :
10L
Effective volume :
7.5L
Motor power :
3kw
Mixing blade design :
3 layers, up+middle+down
Blade material :
304 stainless steel
Inner tank material :
304 stainless steel
Mixing capacity :
10-200kg/h
Description

10L Small Mini Lab High Speed Plastic Mixer Machine
Application:
SHR series small mini lab plastic mixer is mainly used in mixing PVC and all kinds of plastic powder materials. it can be used on plastic,rubber,food,daily chemical industry etc.
Features:
SHR Series mixers adopt advanced design and can be operated easily.It can work very stable with high efficiency,low energy consumption and low noise.
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test
SHR HIGH-SPEED MIXER

TypeVolume (L)

Effective
Volume (L)

Mixing time
(min/batch)

Rotate speed
(r/min)

Motor
(Kw)

Capacity
(kg/hour)

SHR-5A536-815001.110
SHR-10A1076-81500320
SHR-25A25206-815005.550
SHR-50A50356-10750/15007/11100
SHR-100A100756-10650/130014/22200
SHR-200A2001506-10475/95030/42400
SHR-300A3002256-10430/86040/55500
SHR-500A5003758-12330/66055/75800

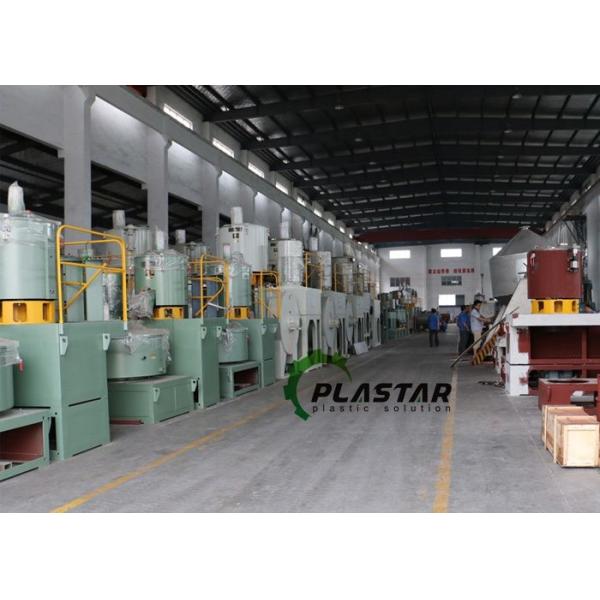

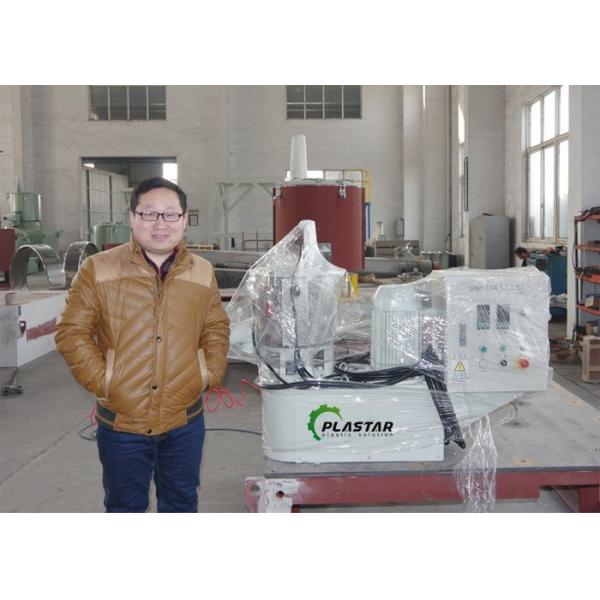

Machine pictures for reference:
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
10L Small Mini Laboratory Machinery High Speed Plastic Mixer Machine
