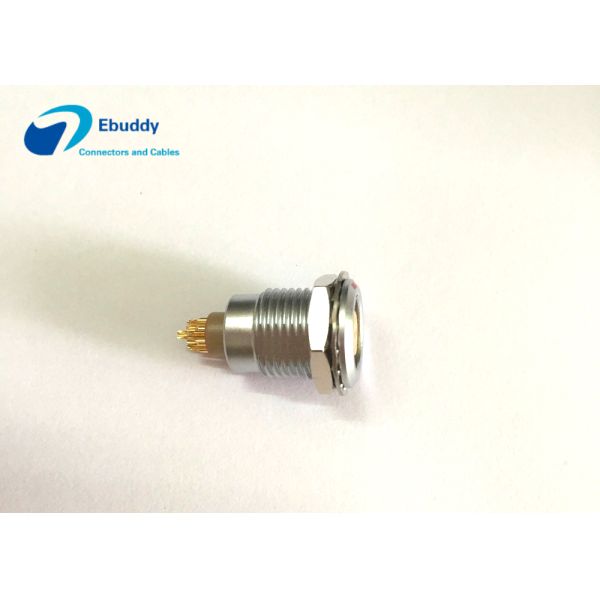

Lemo Type Connector Keying A Lemo Alternative Female Socket EGA.0B.305.CLL With 2 Key
Lemo Type Connector Keying A Lemo Alternative Female Socket EGA.0B.305.CLL With 2 Key
Specifications
Brand Name :
OEM
Model Number :
EGA.0B.305.CLL
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T,Paypal
Supply Ability :
500000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
PP bag
Key :
A
Contact :
Female
Style :
EGA socket
Housing Material :
Brass chrome plated
Configuration :
Brass (gold plated)
Description

keying A Lemo alternative female socket EGA.0B.305.CLL with 2 key

Specifications:

  • Shell Style/Model: EGA: Fixed receptacle, nut fixing
  • Keying: 2 keys (alpha=30)
  • Configuration: 0B.305 : 5 Low Voltage
  • Rated Current : 6.5 Amps
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.7 mm (0.028in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 6.1 mOhm V
  • test (contact-shell): 700 V (AC), 1000 V (DC)
  • Vtest (contact-contact): 1000 V (AC), 1400 V (DC)

Custom service:

  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

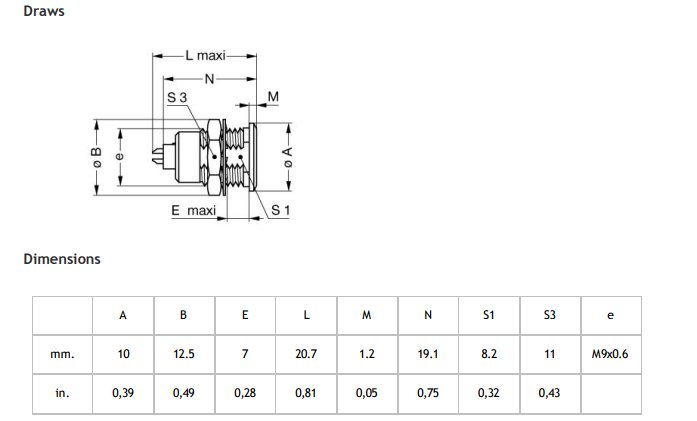

Size and drawing:

Lemo Type Connector Keying A Lemo Alternative Female Socket EGA.0B.305.CLL With 2 Key

Lemo Type Connector Keying A Lemo Alternative Female Socket EGA.0B.305.CLL With 2 Key
