Waterproof IP68 Lemo K Series 1K 308 8pin Plug With Black Color FGG.1K.308.CLAC
Waterproof IP68 Lemo K Series 1K 308 8pin Plug With Black Color FGG.1K.308.CLAC
Specifications
Brand Name :
OEM
Model Number :
EY-BT-308
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T,Paypal
Supply Ability :
500000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Giftbox
Materials :
Plastic
Color :
White,blue, pink
Speaker :
Yes
Bluetooth :
Yes
Logo :
Standard/OEM
Package :
Standard/OEM
Description

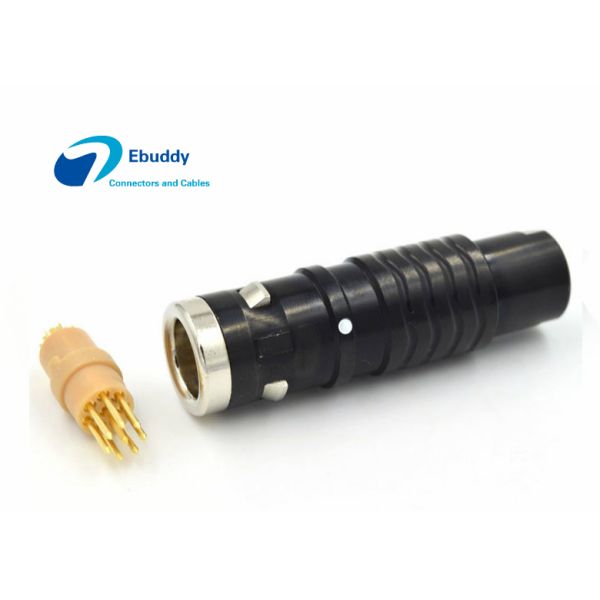

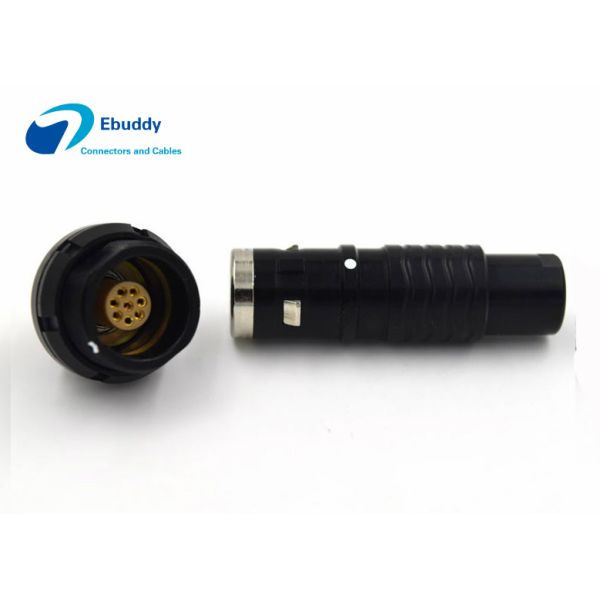

Lemo waterproof IP68 K serials 1K 308 8pin plug with black color FGG.1K.308.CLAC

Specification:

  • Shell Style/Model: FGG Straight plug, cable collet
  • Keying:1 key (alpha=0)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration:1K.308 : 8 Low Voltage
  • Rated Current:5 Amps
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.7 mm (0.028in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • Max. Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 6.1 mOhm
  • Vtest (contact-shell): 1150 V (AC), 1630 V (DC)
  • Vtest (contact-contact): 950 V (AC), 1340 V (DC)

Cable collet size:

　 Collet No. Cable OD
1K Type coding Max Min
C 45 4.5 4.1
C 50 5.0 4.6
C 55 5.5 5.0
C 60 6.0 5.6
K 70 7.0 6.6

Size and drawing:

Waterproof IP68 Lemo K Series 1K 308 8pin Plug With Black Color FGG.1K.308.CLAC

Waterproof IP68 Lemo K Series 1K 308 8pin Plug With Black Color FGG.1K.308.CLAC

Waterproof IP68 Lemo K Series 1K 308 8pin Plug With Black Color FGG.1K.308.CLAC
