PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV
PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV
PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV
PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV
Specifications
Brand Name :
OEM
Model Number :
EEG.1K.308.CLV
Certification :
CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T，Paypal
Supply Ability :
10000pcs per month
Packaging Details :
pp pag
Size :
1K
Type :
Elbow socket
Color :
Silver
Contact Material :
Brass
Keying :
1key
Application :
PCB board install
Description

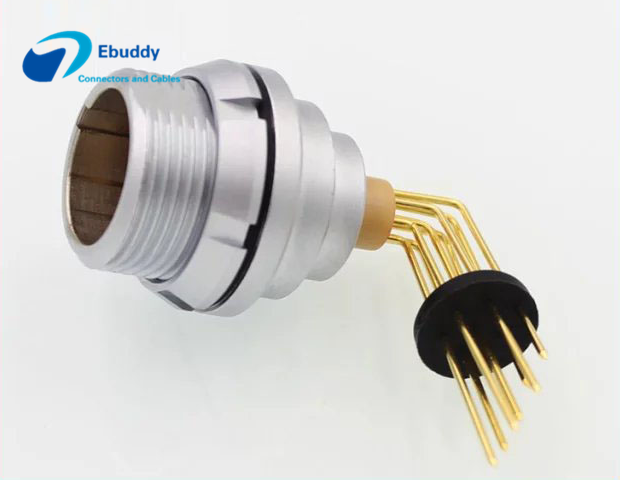

Lemo K series PCB board socket EEG right angle 1K 8pin panel mount connectors EEG.1K.308.CLV

Specifications:

  • Shell Style/Model :EE*: Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
  • Keying:1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration :1K.308 : 8 Low Voltage
  • Contact Type: Print (elbow)
  • Max. Matings: 5000
  • Contact Dia.: 0.7 mm (0.028in)
  • R (max): 6.1 mOhm
  • Vtest (contact-shell): 1150 V (AC), 1630 V (DC)
  • Vtest (contact-contact): 950 V (AC), 1340 V (DC)

Technical Parameter:

  • Endurance (Shell): 5000 mating cycles
  • Temp (min / max): -55°C / +200°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21 Shielding (min): 95 dB (10 MHz)
  • Shielding (min): 80 dB (1 GHz)
  • IP Rating: 68

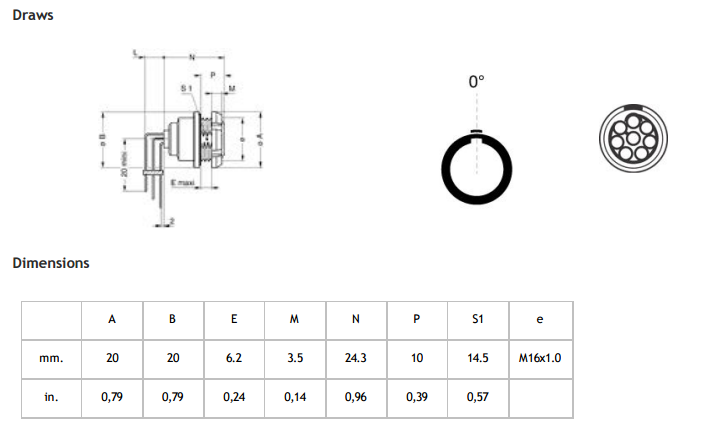

Size and drawing:

PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV

PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV
