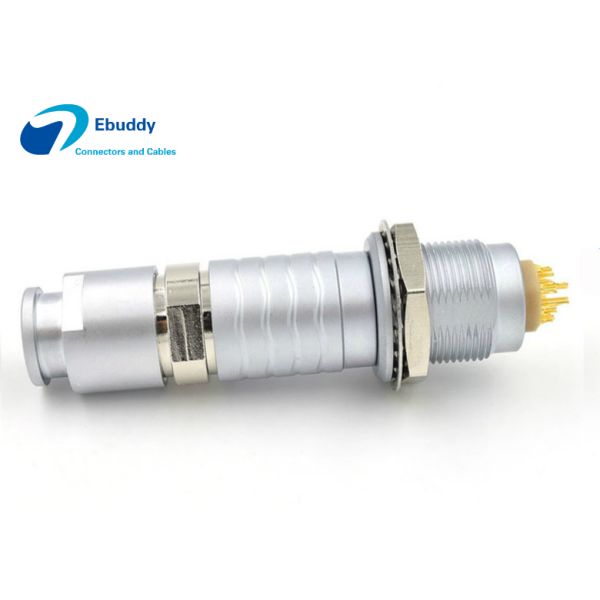

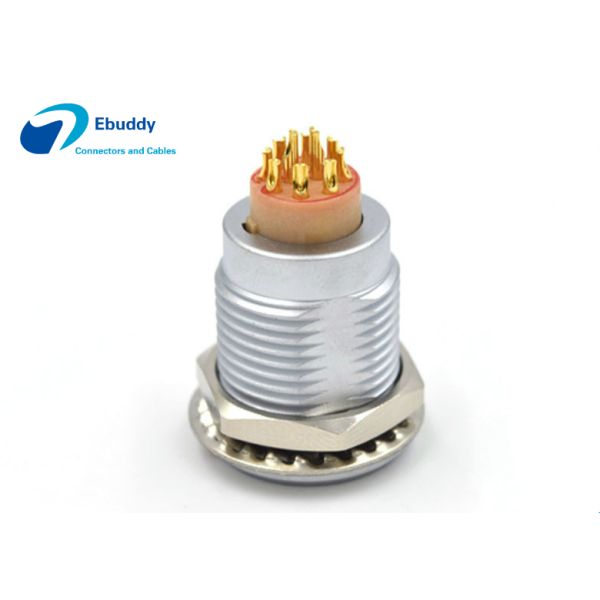

Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
Specifications
Brand Name :
OEM
Model Number :
EY-PB55
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union,,Paypal
Supply Ability :
900000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
PP bag
Pin :
10pin
Size :
Lemo 2B
Contact :
Male and female
Warranty :
1 year
Endurance (Shell) :
5000 mating cycles
IP Rating :
50
Description

Lemo circular push pull 10pin FGG EGG 2B size plug and socket

Technical Details:

  • Shell Style/Model: FGG: Straight plug, cable collet
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration: 2B.310 : 10 Low Voltage
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.9 mm (0.035in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 4.8 mOhm
  • Vtest (contact-shell): 1300 V (AC), 1840 V (DC)
  • Vtest (contact-contact): 1450 V (AC), 2050 V (DC)

Others specification:

  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21 Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • IP Rating: 50

Size and drawing:

Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket

Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket

Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket

Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
