4pin PHG Female Connector Lemo 1K Size
4pin PHG Female Connector Lemo 1K Size
Specifications
Brand Name :
Ebuddy
Model Number :
PHG.1K.304.CLLC
Certification :
CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union,T/T，Paypal
Supply Ability :
10000pcs per month
Packaging Details :
pp pag
Contact Type :
Female solder
Keying :
1 key (alpha=0)
Configuration :
0K.306 : 6 Low Voltage
Rated Current :
2.5 Amps
Max. Matings :
5000
IP Rating :
IP68
Description

4pin PHG female connector Lemo 1K size waterproof circular connectors cable welding female plug

Description:
  • Termination type : Female solder
  • IP rating: IP68
  • Matching parts: FGG.1K.304.CLAC30
  • Shell Style/Model:PH*: Free receptacle, cable collet
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration:1K.304 : 4 Low Voltage
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.9 mm (0.035in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 4.8 mOhm
  • Vtest (contact-shell): 1450 V (AC), 2050 V (DC)
  • Vtest (contact-contact): 1350 V (AC), 1910 V (DC)

Application :
  • Medical
  • Defense Security
  • Instrumentation
  • Transportation
  • Industry
  • Energy
  • Broadcast
  • Audio/video

1K Cable collet size

  • C45: OD=4.1---4.5mm
  • C50: OD=4.6---5.0mm
  • C55: OD=5.0---5.5mm
  • C60: OD=5.6---6.0mm
  • K70: OD=6.6---7.0mm

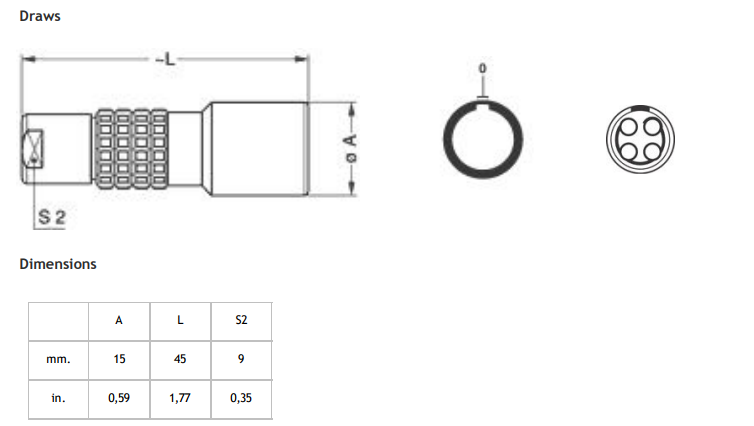

Size and Drawing

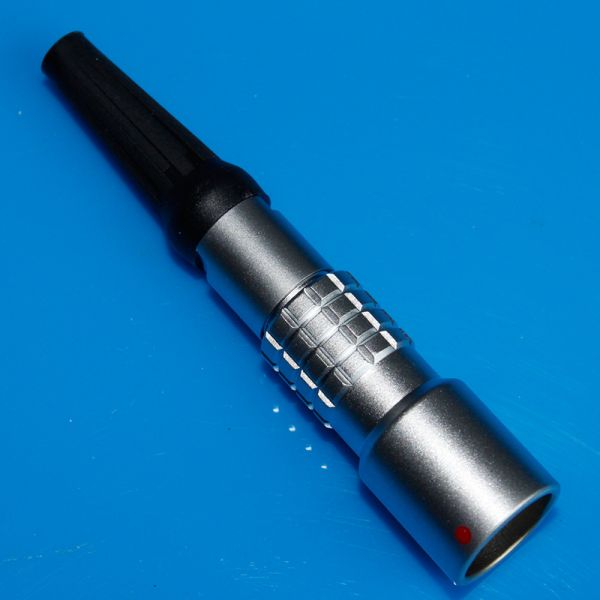

4pin PHG Female Connector Lemo 1K Size

4pin PHG Female Connector Lemo 1K Size
