Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors
Specifications
Brand Name :
Ebuddy
Model Number :
EB-TGG.0K.307
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
100000pcs per Month
Delivery Time :
3-5days for samples
Packaging Details :
color box
Contact :
7pin male and female
Color: :
Silver
Materials: :
Brass chromed
Package: :
PP Bag
Size: :
Lemo 0K
Style: :
Plug and Socket
Description

Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors

Quick Detail Of Lemo 0K 7pin Connectors

1) Lemo waterproof 7pin male plug and female receptacle

2) Compatible model number: FGG.0K.307.CLAD/ EGG.0K.309.CLL

3) Color: Standard Silver color , other customized color also available

4) Assembly: We also can do cable assembly with overmold

5) Warranty time: We will supply 12 months warranty time for all our connectors and cables.

Description Of Lemo 0K 7pin Connectors

The Lemo 0K 7pin connectors are watertight when mated to give a protection index of IP68 as per IEC60529 standard(in mated condition), when correctly assembled to an appropriate cable, or its IP66.

Technical data of Lemo 0K 7pin Connectors

Shell Style/Model FGG male plug and EGG female Receptacle
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current 7A
Contact Dia 0.7 mm (0.028in)
R (max) 6.1 mOhm
Contact Type Solder
Vtest 700-1000V
Endurance (Shell) 5000

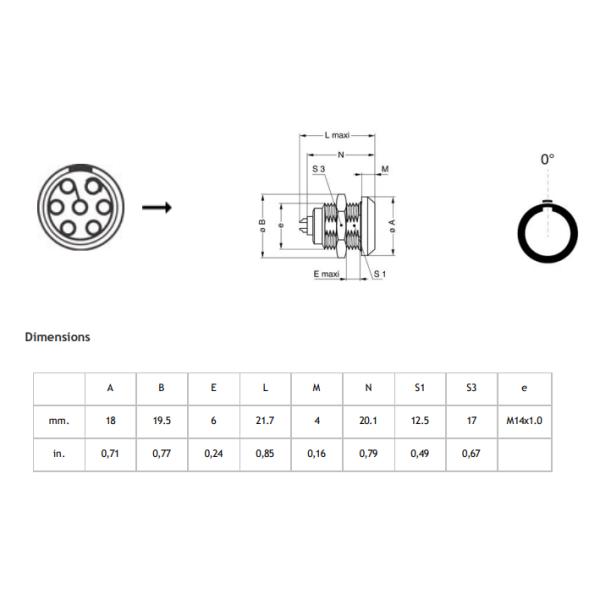

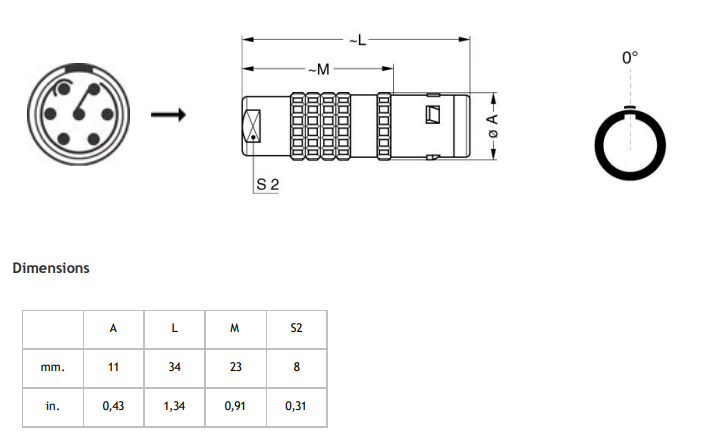

Size of Lemo 0K 7pin Connectors

Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors

Waterproof IP68 Lemo K Series 0K 7pin Male And Female Connectors

FAQ

1. Q: Are you a factory or trade company?

A: We are manufacturer of connectors and cables with 10 years experience.

2.Q: Do you provide samples? Is it free?

A: We can provide a small number of free samples, but you need to pay the freight.

3.Q: What can you buy from us?

A: Push-pull connectors, cable assembly, bayonet connectors, military connectors,

custom connectors.

4. Q: What about the leading time?

A: If there's stock, we ship th e goods within 3-5 working days after the deposit is

confirmed. Or else, it depends on the quantity you need.

5. Q: What payment methods you support?

A: We accept T/T, Paypal, Western Union
