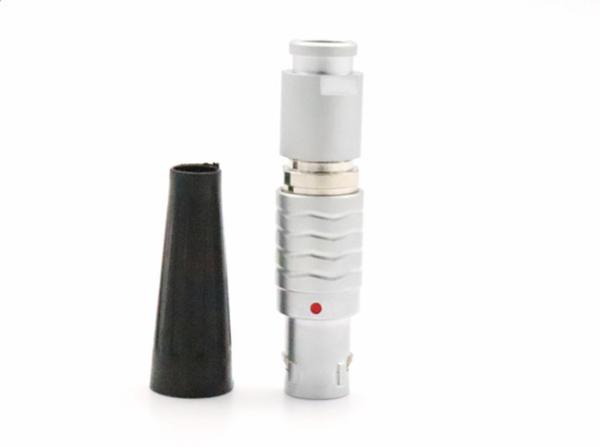

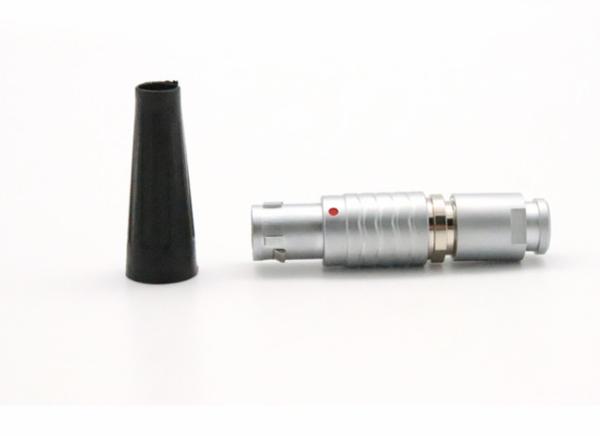

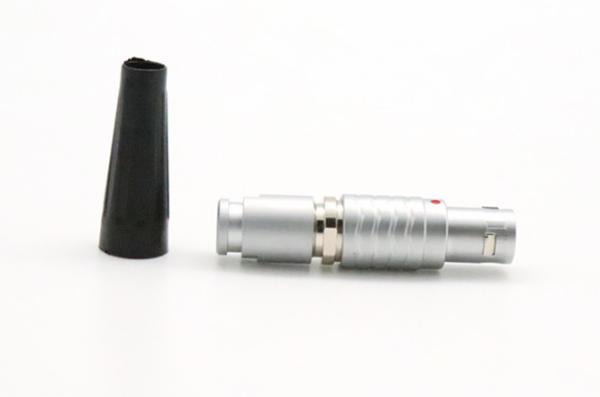

FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins
Specifications
Brand Name :
OEM
Model Number :
FGB.1B.304
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
90000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
PP bag
Model :
FGB.1B.304
Pin :
4pin
Shell size :
1B
Style :
male plug
Keys :
Key B
Max. Matings :
5000
Description

4pin FGB 1B Connectors Keying B 60degree Lemo Cable Connectors FGB.1B.304

Lemo FGB Cable Connector Features:
  • Lemo FGA 2 keys compatible male plugs with female pins
  • 0B,1B,2B available here
  • Endurance (Shell):5000 mating cycles
  • Humidity (max):<=95% [at 60 deg C / 140 F]
  • IP Rating:50
  • Configuration:Brass (gold plated)

  • Housing Material:Brass chrome plated

  • Temp (min):-20 deg C
  • Temp (max):+150 deg C
Lemo FGA connector Specifications :

Shell Style/Model FG*: Straight plug, cable collet
Keying 2 key (alpha=60, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
PERFORMANCE DETAILS
Insert 1B.304 : 4Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 0.9 mm (0.035in)
Bucket Dia 0.8 mm (0.031in)
Max. Solid Conductor 0.34 mm^2 (AWG 22)
Max. Stranded Conductor 0.34 mm^2 (AWG 22)
R (max) 4.8mOhm
Vtest (AC) 1500 V
Rated Current 10A

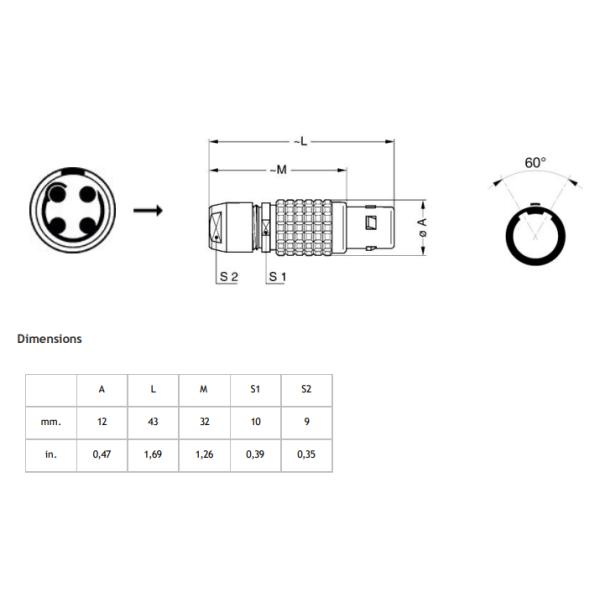

Lemo FGB connector Size drawing:
FGB.1B.304 Lemo Cable Connectors 4pin Keying B 60degree Male Plugs With Female Pins

Lemo FGB connector Custom service:

  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Ebuddy's advantage:

  • Good quality, totally compatible with Lemo,Fischer,
  • Competitive price can help you win the market
  • Fast delivery time: 3-5days for samples, 7-10days for mass production
  • Warranty time: 12 months
  • Cables assembly: we also can supply custom cable assembly service
  • MOQ: 1pc
