WS 85 Polyurethane Vibrating Screen 305x610mm for Gold Mining

Specifications

Brand Name :

CHINA HUATAO

Model Number :

Certification :

ISO9001,CE,SGS etc.

Place of Origin :

China

MOQ :

1PCS

Price :

USD 20-50 per pcs

Payment Terms :

L/C,T/T,Western Union,Paypal

Supply Ability :

100PCS/MONTH

Delivery Time :

5-8 work days

Packaging Details :

Wooden Box or Carton Box

Product Name :

WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering

Key Words :

PU screen panel, dewatering screen panel,WS85

Thickness :

20mm,30mm,40mm

Material :

Polyurethane(PU)

Color :

Orange , Red , Green , Yellow

Application :

Quarry Screening‌

Selling unit :

Single item

Pacakge :

Carton or Wooden Box

Description

WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering

1)Description‌ of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering

Crafted via HUATAO’s signature open-cast polyurethane process, the Replacement WS 85 Modular Screen undergoes high-temperature curing that enhances molecular linkage, delivering exceptional strength. Its wear resistance is unmatched, lasting significantly longer than rubber or metal alternatives, which is critical for heavy-duty use in gold mines and copper ore processing.

Corrosion-resistant and tolerant of acids and alkalis, it thrives in harsh working conditions, from concentrate dehydration to carbon slurry separation. The screen’s precise seams (customizable from 0.075mm upwards) ensure accurate particle grading, while its low friction surface prevents material buildup, keeping pores clear.

Elastic by nature, it handles large throughputs with efficient dewatering, vital for tailings dry discharge. Customizable in size (305×610mm, 500×500mm, etc.) and installation (bolts, Card slot type,rail seats), it adapts to any setup. The double-hardness MDI structure—soft surface, hard base—reduces clogging, boosting efficiency and longevity.

2) Key Features & Benefits of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering

✅ Durability:	8–10x lifespan vs. steel, anti-abrasion, tear-resistant.
✅ Efficiency:	Self-cleaning, anti-clogging, 30% energy saving.
✅ Customization:	Aperture sizes (0.1–170mm), shapes, modular compatibility.
✅ Certified:	Flame-retardant, non-toxic, ISO-compliant.

3) Specification of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering

Material	steel frame and polyurethane surface
Feature	WS85,Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening size	Slot Width 0.1mm – 2.5mm
Screen Width	305mm, 500mm and 515mm, others can be designed.
Screen length	305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed.
Connection type	WS85
Application	* Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste.

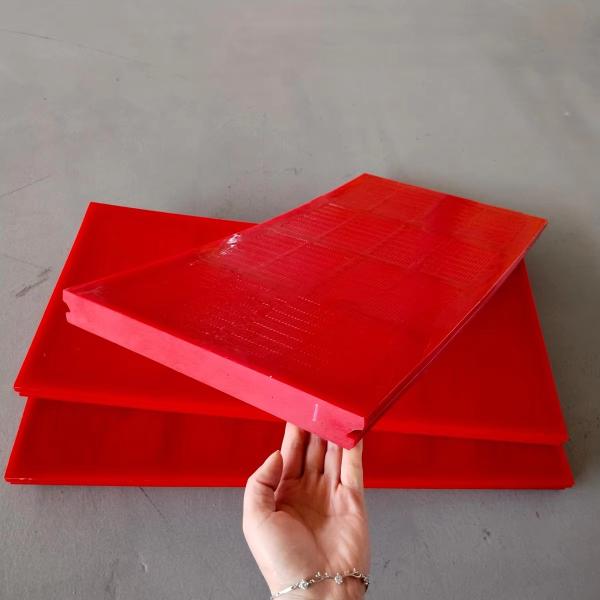

4) Images of Polyurethane Dewatering Screen Panel include:

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
