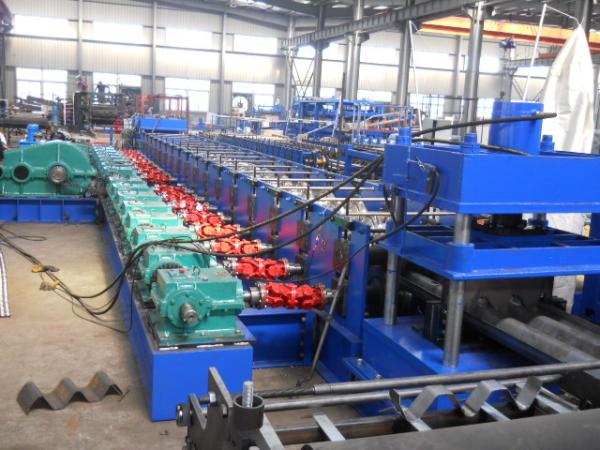

Freeway Guardrail Roll Forming Machine Used for USA Market Implement American Standards

Machine Introduce

Our machine, unlike common products on the market. punching hole first and then forming the shape . This method ensures the high precision of punching positions, thus satisfying even the most captious customer. Meanwhile, the inclined punching system also contributes to the high punching precision, and this facilitates the connection of guardrails.

Aside from the above, this guardrail roll forming machine is able to manufacture double-wave and triple-wave guardrails, and pressing dies can be applied to produce C&U posts. In addition, our machine could be designed to work with hydraulic decoiler and stacker upon customer's request.

Our expressway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and run out table.

Summary of Two Wave Guardrail Roll Forming Machine

This two wave guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Thi

• Material Thickness: 2-4mm
• Forming Station: 15 excluding the feeding rollers and leveling rollers
• 7 Rollers leveling
• Principal Axis Diameter: ￠100mm
• Working Speed: 10-12m/min
• Main Power: 30KW
• Leveling Power: 2.2KW
• Hydraulic Power: 15KW
• Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
• Gross Weight of Machine: about 18 Ton
• Voltage: 380V, 3 Phase 50Hz

Main Component

• Hydraulic Decoiler ------------------------------------------ 1 Unit
• Leveling and Feeding Guide -------------------------------- 1 Unit
• Punching Device ------------------------------------------- 1 Unit
• Roll Forming Machine -------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------ 1 Unit
• Hydraulic Station ------------------------------------------ 1 Unit
• PLC Contol System ---------------------------------------- 1 Unit
• Runout Table ---------------------------------------------- 1 Unit
• Spare Coupling -------------------------------------------- 1 Unit

Reference Drawing

Main Component

• Hydraulic Decoiler ------------------------------------------ 1 Unit
• Leveling and Feeding Guide -------------------------------- 1 Unit
• Punching Device ------------------------------------------- 1 Unit
• Roll Forming Machine -------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------ 1 Unit
• Hydraulic Station ------------------------------------------ 1 Unit
• PLC Contol System ---------------------------------------- 1 Unit
• Runout Table ---------------------------------------------- 1 Unit
• Spare Coupling -------------------------------------------- 1 Unit

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 15 Years Experience
