ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position
Specifications
Brand Name :
LUOLE
Model Number :
FZ90
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
30 days
Packaging Details :
Bubble
Web Plate Height :
200-1800 mm
Flange Plate Width :
200-800 mm
Max Loading :
20 Tons
Overturning Angle :
90 Degree
Description

90 Degree Hydraulic Overturning Device Change H beam Position Automatic H Beam Production Line

Quick Detail

  • This overturning machine is mainly used for overturning the T-shaped or H-shaped beam 90 degrees so as to feed to next stage for welding;

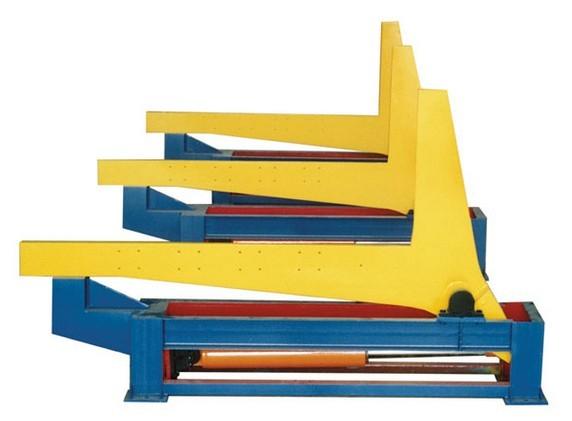

  • It’s hydraulic type overturning. Three oil cylinders drive 3pieces of L-shaped rack turn 90 degree synchronously;
  • Beam welding structure;

1. Introduction

This overturning machine is mainly used for overturning the T-shaped or H-shaped beam 90 degrees so as to feed to next stage for welding. It’s hydraulic type overturning. Three oil cylinders drive 3pieces of L-shaped rack turn 90 degree synchronously.

It also can be used in other applications. We also welcome special requirements.

2. Main Parameters

Model FZ90
Suitable H-beam flange width (mm) 200—800
Suitable H-beam web height (mm) 200—2000mm
Suitable work-piece weight (t) ≤20T
Overturning oil cylinder diameter (mm) φ125
Max pressure of hydraulic system (MPa) 14
Above are our standard models and parameters, and it can be designed and manufactured on request.

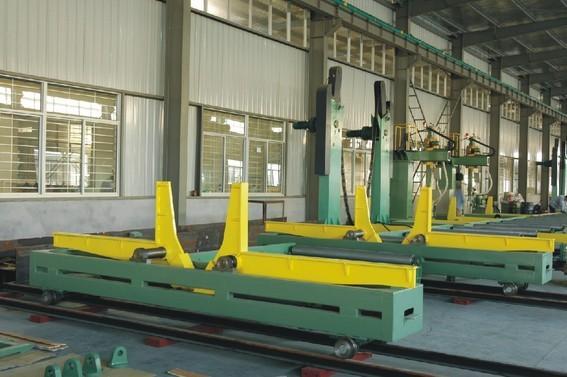

3. Reference photo

ISO9000 CE Certified Hydraulic 90 Degree Overturning Machine for Heavy Duty H beam Chanding its Position

4. Comparative advantage

  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
