Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe
Specifications
Brand Name :
LUOLE
Model Number :
ZHB
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
20 days
Packaging Details :
Bubble
Loading Capacity :
600 Kg
Table Size :
diameter 1000 mm
Revolving Type :
Motoriezd Drive VFD Control Speed

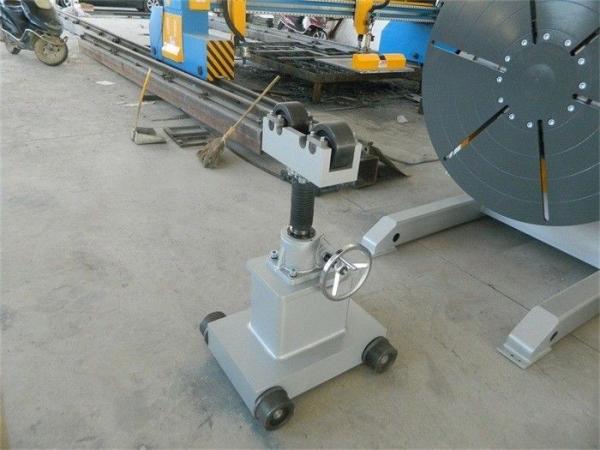

Support Roller :
Lift up and aown by hand
Description

Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding

Description

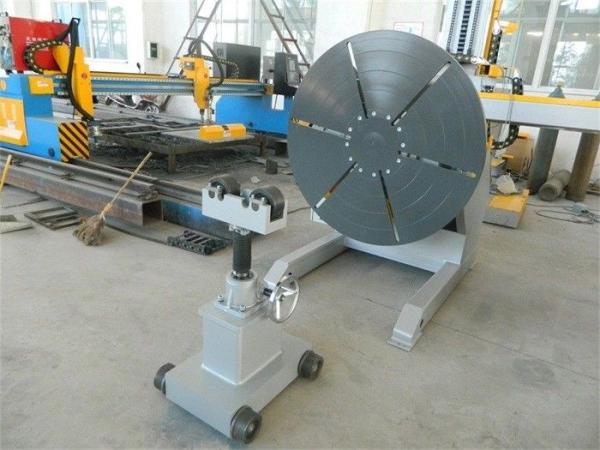

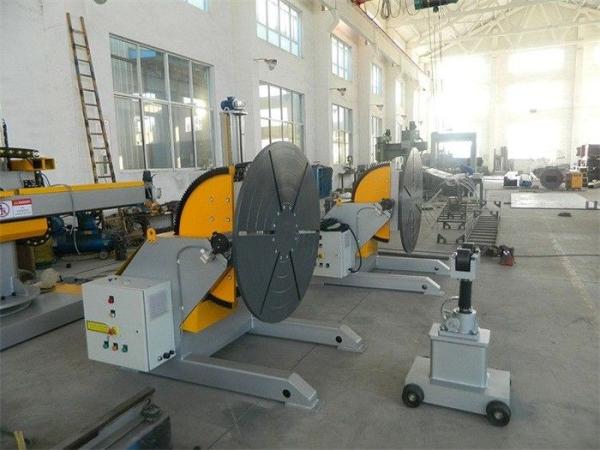

1. Working with support rollers together for pipe turning and welding / cutting automaticly.

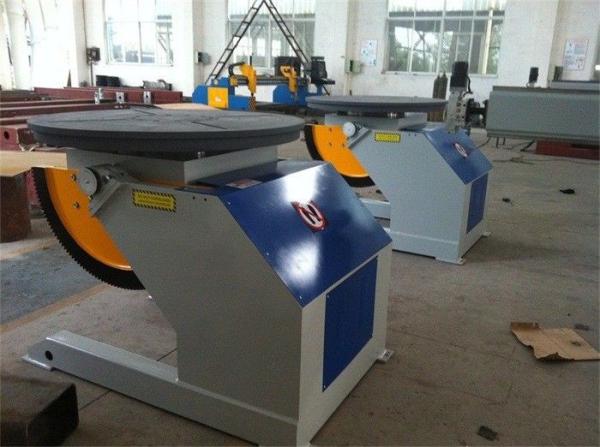

2. Welding positioner is mainly composed of worktable rotating and tilting unit and electric control system .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Voltage is 380V 50Hz 3P , or according to your request resetting.

Detail Parameters

Model

ZHB-03

ZHB-06

ZHB-12

ZHB-30

ZHB-50

Max Capacity

300 kg

600 kg

1.2 T

3 T

5 T

Table Diameter (mm)

600

1000

1200

1400

1500

Rotation Power (kw)

0.37

0.75

1.1

1.5

3

Rotation Speed (rpm)

0.1-1

0.09-0.9

0.05-0.5

Tilting Power (kw)

/

0.75

1.5

2.2

3

Tilting Angle (°)

0-90

0-90

0-90

0-90

0-90

Tilting Speed (kw)

Manual

1.1

0.67

0.23

0.14

Option:

□ Foot Pedal □ Wireless Control □ Tilting Angle 120°
Marks

1. If your work piece is pipe, please advise us the pipe diameter for the welding chuck model.
2. If your work piece is too long or height , please choose the biger model .
3. If you want the clamps for your special work piece , then please advise us the details drawings.

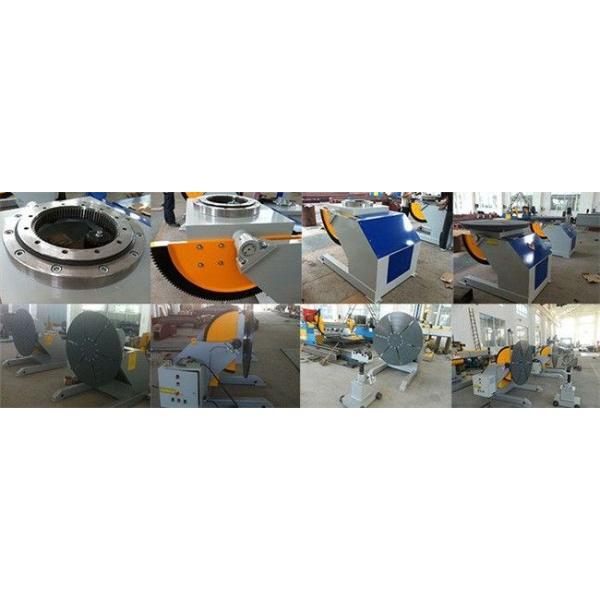

Competitive Advantage

1. We ( Factory ) will control every step during the production to ensure the equipments quality.

2. Fully equipments are treatment by heating and sand blasting treatment .

3. Control way is remote control with 5 m length cable or wireless control hand control box.

Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe

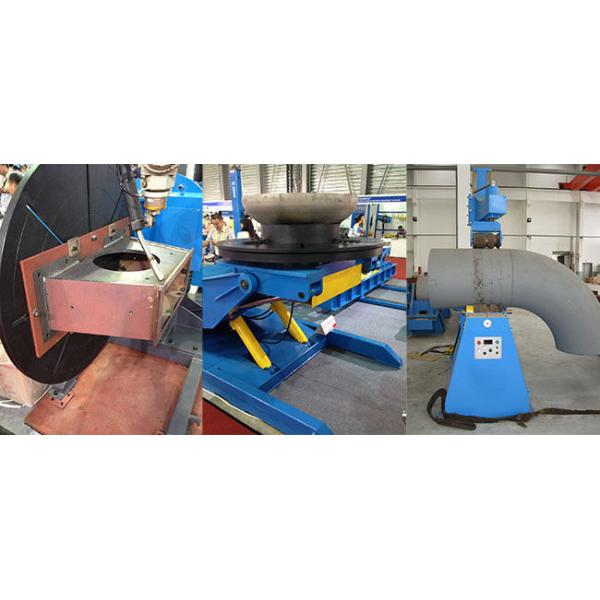

Workpiece welding way

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.

Automatic Revolving Positioners Cut Pipe Use Rotator Support Long Pipe

1. All our equipments have passed CE test and get the CE certificates.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. We can design the special equipments according to your request.

4. We provide 12month guaranty period for the whole machine quality.

JUST CONTACT US FOR DETAIL QUOTATION.
