AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
AC 220-240V Durable Pure Sine Wave Power Inverter For Solar System
Specifications
Brand Name :
SolarverTech
Model Number :
TFS2000D
Certification :
CE ROHS E8
Place of Origin :
Zhejiang, China
MOQ :
10
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Delivery Time :
samples in 5 working day
Packaging Details :
1pcs in box ,2 PCS in carton case
Input Voltage :
12V/24V/48VDC
Output Voltage :
AC220-240V/AC100-120V
Output Current :
According to load
Output Frequency :
50/60HZ
Output Type :
Single
Type :
DC/AC Inverters
Inverter Efficiency :
over 93%
Application :
Off-grid System
Rated power :
2000w
Description

Pure Sine Wave Inverter 2000w with bypass function

Description:

The TFS series high-frequency inverter with bypass function,this provide options the grid priority,in the case of the grid priority,when the power grid is disconnected,it will auto switch to the battery for ac loads.in the case of battery priority,when battery volage lower or power is exhausted,it auto switch to the grid. It no charging function.

Notice:
1. The 2000W inverter should be installed in a dry, well ventilated environment, keeping the inlet more than 20CM away from the wall.
2. DC input is not reversed, otherwise the fuse blows, possible mosfet failure.
3. Short-circuit fault, Restart after removing the fault, otherwise inverter damage.
4. Non-professional please don’t open the 000W bypass inverter, because of the high voltage inside the inverter. When open by yourself without warranty.

pure sine wave inverter specifications:

MODEL
TFS2000-112
TFS2000-124
TFS2000-148
TFS2000-212
TFS2000-224
TFS2000-248
Output
AC Voltage
100/110/120VAC
220/230/240VAC
Rated Power
2000W
Surge Power
Load 120~150%(3min.);3000W(3sec; resistive)
Waveform
Pure Sine Wave(THD<3%)
Frequency
50/60Hz ±0.05%
AC Regulation
±5%
±10%
Power Factor Allowed
COSθ-90°~COSθ+90°
Standard Receptacles
USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
LED Indicator
Green for power on, red for faulty status
USB port
5V 2.1A
5V 2.1A
------
5V 2.1A
5V 2.1A
------
LCD display
voltage, power, protection status ( optional)
Remote control function
default
Remote controller
CR80/CRD80 optional
Input
No Load Current Draw
≤1.1A
≤0.80A
≤0.70A
≤1.1A
≤0.80A
≤0.70A
DC Voltage
12VDC
24VDC
48VDC
12VDC
24VDC
48VDC
Voltage Range
10.5~15VDC
21~30VDC
42~60VDC
10.5~15VDC
21~30VDC
42~60VDC
Efficiency(Typ.)
89%~93%
Fuse
40A×6
20A×6
10A×6
40A×6
20A×6
10A×6
Remote Control
Function (optional)
Protection
BAT. Low Alarm
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
BAT. Low Shutdown
10±0.5VDC
20±1.0VDC
40±2.0VDC
10±0.5VDC
20±1.0VDC
40±2.0VDC
Over Load
Shut down output voltage , restart to recover
Over Voltage
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
Over Temperature
Shut down output voltage , recover automatically after temperature goes down
Output Short
Shut down output voltage , restart to recover
DC Input Reverse Polarity
By fuse
Earth Fault
Shut off o/p when the load has electrical leakage
Soft Start
Yes, 3-5 Seconds
Environment
Working Temp.
0~+50℃
Working Humidity
20~90%RH non-condensing
Storage Temp.&Humidity
-30~+70℃,10~95%RH
Safety & EMC
Safety Standards
Certified UL 458(only for "GFCI" receptacles)
Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
Isolation Resistance
I/P-O/P:100M Ohms/500VDC
EMI Conduction &
Radiation
Certified FCC class A
Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
EMS Immunity
------
Certified IEC61000-4-3, IEC61000-4-6
E-MARK
------
Certified ECE RIO.05:2014
Others
Dimension(L×W×H)
325.2×281.3×112.7mm
Packing
5.2kg;2pcs/11.1kg/0.053m³
Cooling
Load control fan or by thermal control fan
Application
Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
power systems…etc.

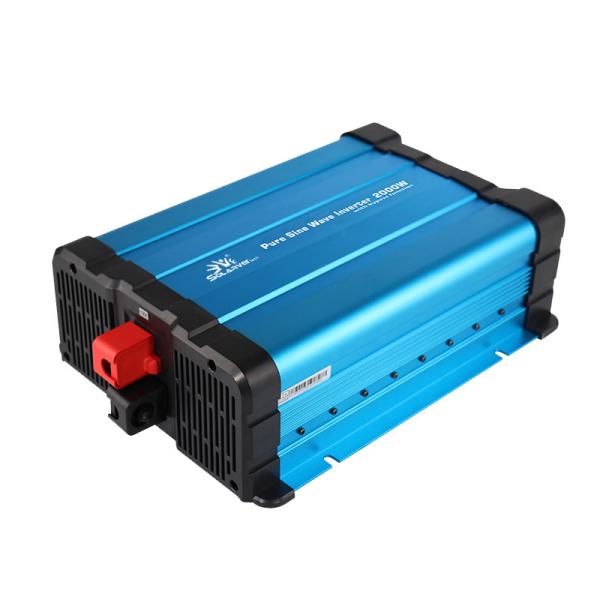

Product picures:

AC 220-240V Durable Pure Sine Wave Power Inverter For Solar SystemAC 220-240V Durable Pure Sine Wave Power Inverter For Solar SystemAC 220-240V Durable Pure Sine Wave Power Inverter For Solar System

About solarway:
Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
