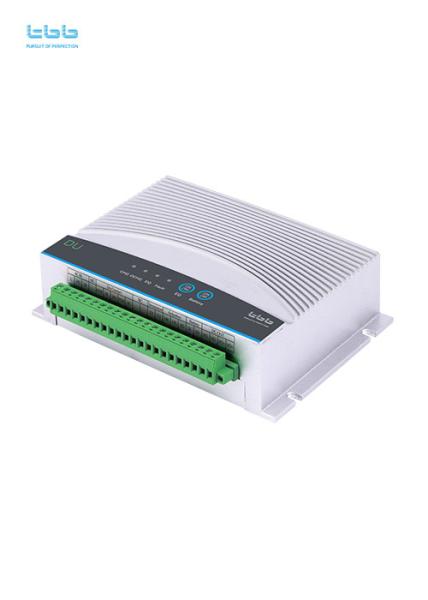

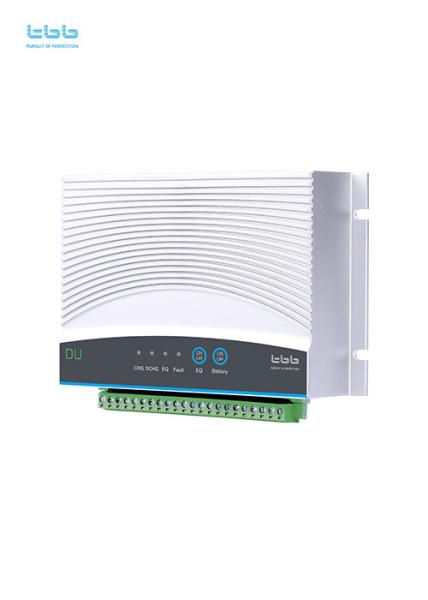

TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
TBB Backup System Telecom Inverter IDU500 DC UPS / Charger 14.4V/28.8V 165VAC-265VAC
Specifications
Brand Name :
TBB
Model Number :
IDU500-12
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-3days depends on batch order qty
Packaging Details :
Carton, Plywood pallet
Brand :
TBB
Power :
500VA
DC :
48V
Current :
2A
Weight :
1KG
Outcase :
Aluminum
Description

iDU500 Charger

DC POWER SUPPLY

TBB Telecom backup system IDU500 DC UPS/Charger 14.4V/28.8V 165VAC-265VAC

i DU500 is a DC UPS integrating multiple functions into one unit
including a smart battery charger, battery monitor and the load
management. The built-in professional adaptive charging
algorithm with automatic temperature charging makes it suitable
for composing a power backup system and for various outdoor.

Features

- 110VAC or 220VAC input self-adjustment.
- Power factor correction.
- Professional temperature compensated battery
- Charging control.
- Low power consumption.
- Self- cooling design.
- Complete protection.
- IP55 design.

- Working temperature: -40C -70C.
- System data monitor via RS485 communication.
*Real-time power supply data.
*Real-time alarm data.

*Real-time battery data, including battery voltage
and discharging current.
*Battery remained capacity and time to go.
*History records.

- Complete protection.

Over voltage/Over current/Over temperature/Short circuit

Specification

Model iDU500-12 iDU500-24 iDU500-48
Output voltage (V) 14.4 28.8 57.6
Output current(A) Nominal current 8 3.5 2
Peak current(15S) 20 20 10
Nominal Input Voltage 165-265VAC,50/60HZ
Charging curve 3 steps smart charging
Temperature compensation Automatic temperature compensation
Absorption voltage(V) 14.4 28.8 57.6
Floating voltage(V) 13.5 27 54
Charging current (A) 3 1.5 1
Equilization Automatic/Manual
Efficiency 90%
Ripple noise ≤500mVp-p
Voltage precision ≤2%
Cooling no fans
Working temperature -40℃~ +70℃: full load at 60℃ and derating 60% at 70℃
Communication RS485
Dry contact AC grid fault, Battery low voltage, unit fault and Battery equilization
Battery low voltage protection(VDC) 11 22 44
Battery EQ voltage protection(VDC) 11.5 23 46
Protection
Output short circuit Unit cut down the outputs,restart automatically when the issue disappears
Battery connection reverse polarity No output
Charger over temperature Derate the output
Battery over temperature Stop charging
Certification
LVD EN60335-1,EN60335-2-29
EMC EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3
Structure
Outcase Aluminum
Dimension 168x110x45 168x110x45 168x110x45
168x110x45 1kgs 1kgs 1kgs
IP protection IP55
Mounting Wall mount
Isulation safety
Isulation resistance ≥50M
Dimension 2.5KV/1min/5mA
