Specifications
Brand Name :
Flygt
Model Number :
Cartridge Seal 20MM
Certification :
CE
Place of Origin :
ANHUI
MOQ :
1PC
Price :
USD100-750
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Supply Ability :
1000PC/MONTH
Delivery Time :
1-3DAYS
Packaging Details :
BOX AS REQUIREMENT
Transport Package :
box
Function :
Oil Pump, Water Pump
Seal Faces :
Carbon vs. Ceramic, Silicon Carbide vs. Silicon Carbide
Industry Standards :
ISO 9001, API 682, DIN 24960
Pressure :
Up to 25 bar
Seal Direction :
Single Direction, Bi-Directional
Operating Temperature :
Up to 400°C
Style :
Mechanical Seal W13U Single Seal
Shaft Size :
Up to 200 mm
Standard :
Standard
Application :
shaft seal
Seal Configuration :
Single, Double, Tandem
Seal Type :
Pusher, Non-Pusher, Metal Bellow, Elastomer Bellow
Size :
20mm,48mm,65mm,80mm,90mm,100MM
Features :
High Temperature Resistance, Chemical Resistance, Low Friction, Easy Installation
Description

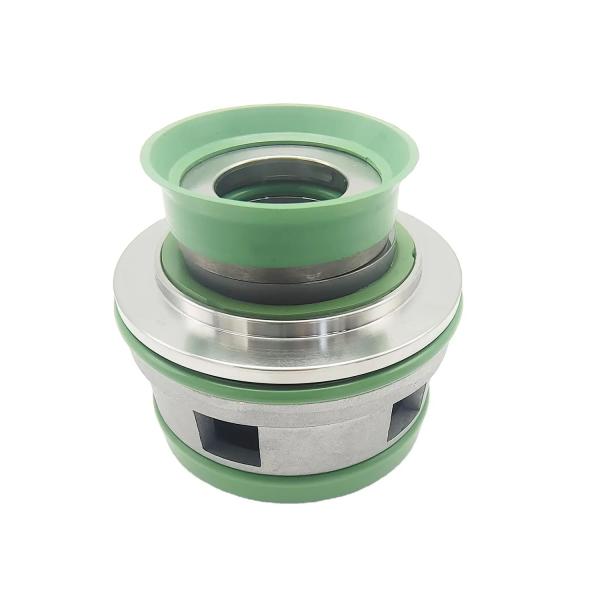

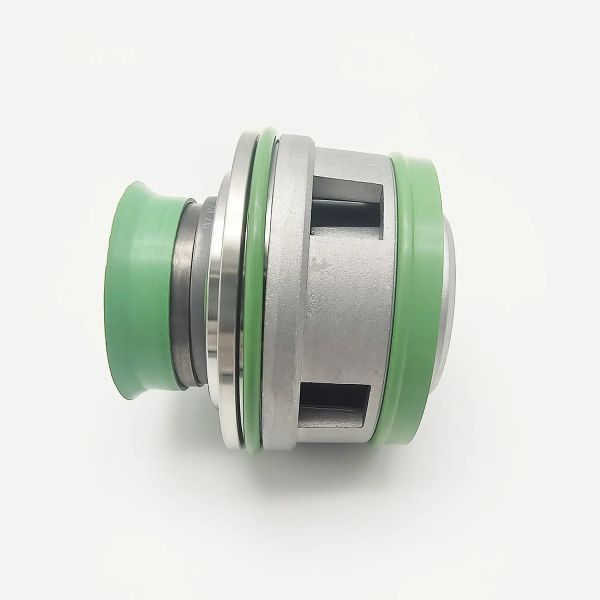

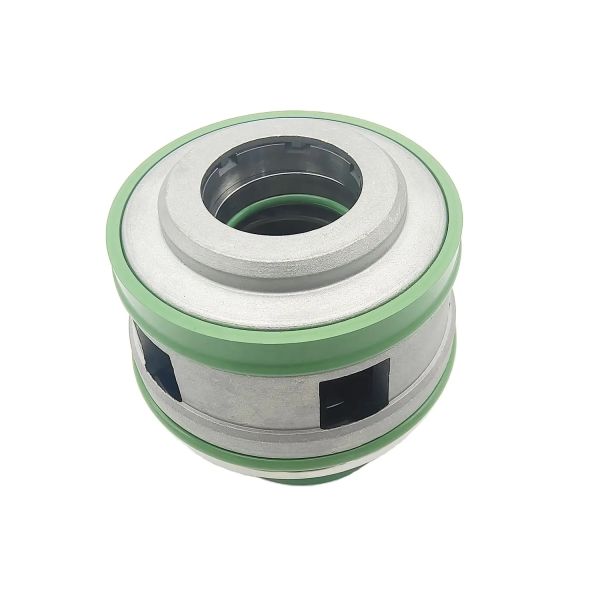

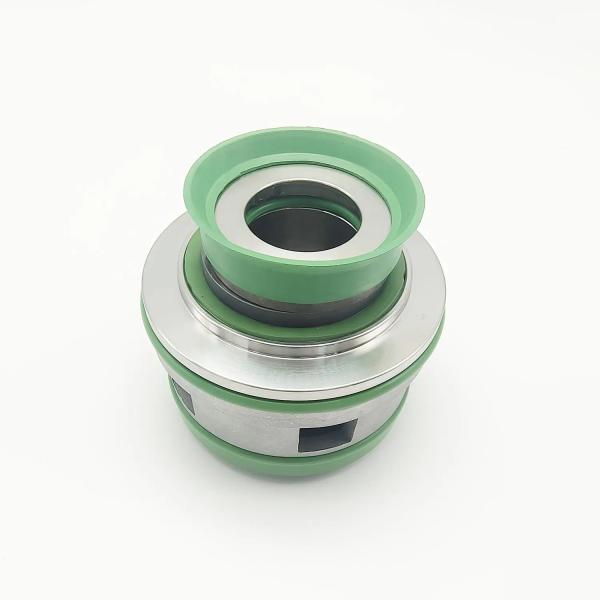

Flygt Plug-In 20mm Mechanical Seal FS20 Cartridge Seal Aluminum Type For Flygt Pump 2610 2620 2630 2640 4610 4620

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.


Flygt Pump seal Mechanical Seals

Temperature
-30ºC to 200ºC,Dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
20MM-90MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM
Spring
SS304, SS316
Metal parts
SS304, SS316

1. Sealcon Plug in is for Flygt Pump Model: as follows picture
2. Our seals can replace the original seals.
3.Application: seals are primarily used in the chemical sector and in water pumps.
4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5.OEM and Customized products is welcomed.
6. Factory Price,High Quality ,Fast Delivery and Best Sevice.

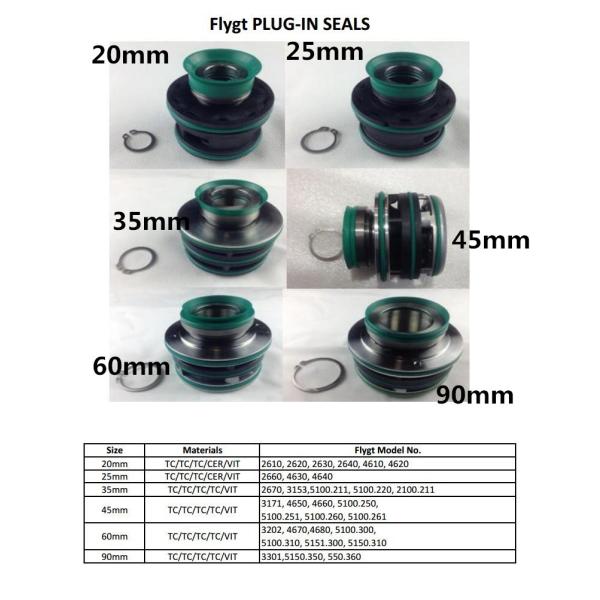

Seal Code

Size Material Flygt Pump
20 20MM TC TC TC TC VITON 2610,2620,2630,2640,4610 & 4620
25 25MM TC TC TC TC VITON 2640,4610 & 4620
35 35MM TC TC TC TC VITON 2670,3153,5100.210,5100.211,5100.220 & 5100.221
45 45MM TC TC TC TC VITON 3171,4650,4660,5100.250,5100.251,5100.260 & 5100.261
60 60MM TC TC TC TC VITON 3202,4670,4680,5100.300,5100.310,5150.300 & 5150.310
90 90MM TC TC TC TC VITON 3301,5150.350 & 5150.360

Flygt Plug-In 20mm Mechanical Seal FS20 Cartridge Seal Aluminum Type For Flygt Pump 2610 2620 2630 2640 4610 4620

Flygt Plug-In 20mm Mechanical Seal FS20 Cartridge Seal Aluminum Type For Flygt Pump 2610 2620 2630 2640 4610 4620Flygt Plug-In 20mm Mechanical Seal FS20 Cartridge Seal Aluminum Type For Flygt Pump 2610 2620 2630 2640 4610 4620Flygt Plug-In 20mm Mechanical Seal FS20 Cartridge Seal Aluminum Type For Flygt Pump 2610 2620 2630 2640 4610 4620Flygt Plug-In 20mm Mechanical Seal FS20 Cartridge Seal Aluminum Type For Flygt Pump 2610 2620 2630 2640 4610 4620

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
