Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal
Specifications
Brand Name :
JR
Model Number :
chesterton 150 mechanical seal
Certification :
iso9001
Place of Origin :
MADE IN CHINA
MOQ :
1PC
Price :
Negotiated
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000PC/Month
Delivery Time :
20-30DAYS
Packaging Details :
box as requirement
Material :
TC TC FKM
Function :
for Oil Pump, Water Pump
Transport Package :
box
HS Code :
848420090
Specification :
Water pump mechanical seal
Certificate :
ISO9001
Type :
Water Pump Seal
Standard :
Standard
Size :
chesterton 150
Name :
chesterton 150 mechanical seal
Description

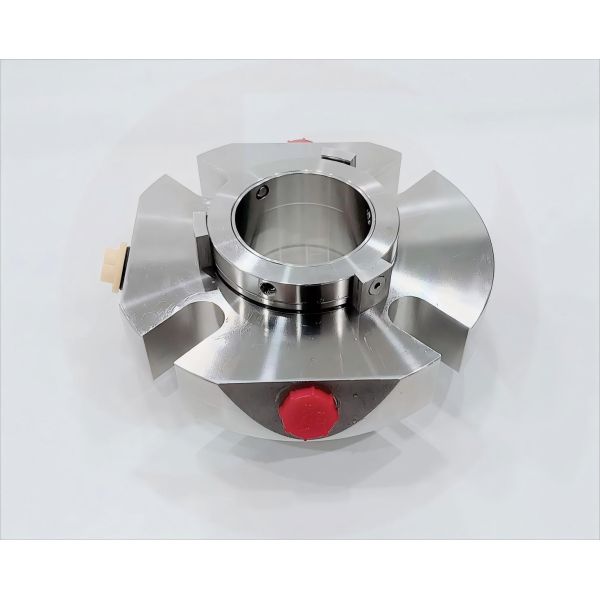

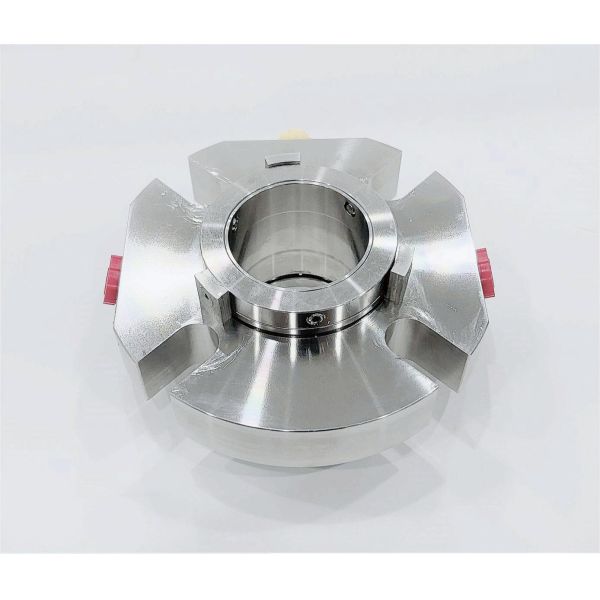

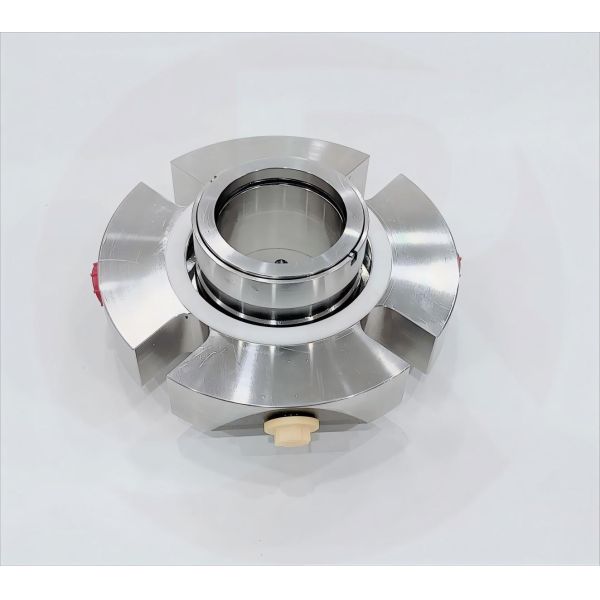

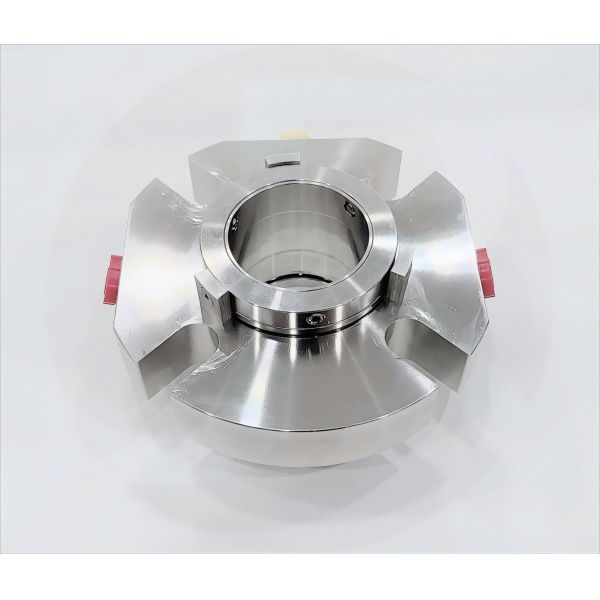

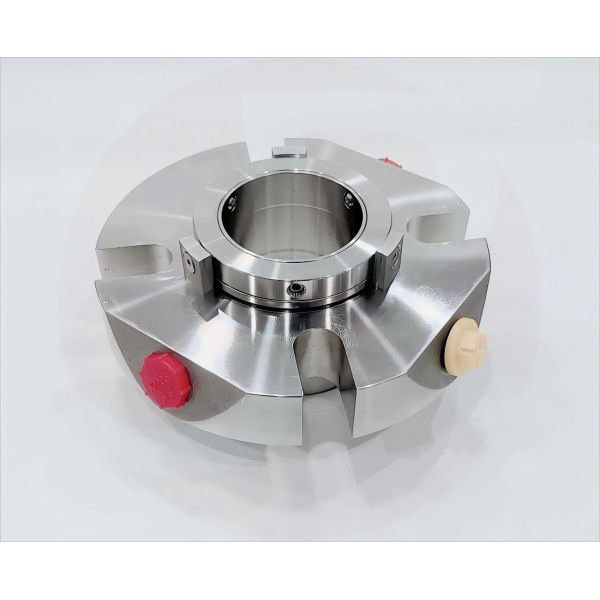

Chesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal

Operational Conditions:

  1. Temperature -30 to 205 °C (-20 to 400 °F)
  2. Speed 20 m/s ( 4000 fpm )
  3. Pressure 711 mm (28") Hg Vacuum – 20 bar g (300 psig)
  4. Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering.

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide,TC
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

Pressure
Up to 25 bar
Metal Parts
SS316
Speed
Up to 25m/s
Seat
SiC, TC
Face
Carbon, SiC, TC
Spring
SS316, Hastelloy C
End play/axial float allowance
±1.0mm
Sizes
25MM-120MM
Temperature
-40℃ to 220℃,dependent on the elastomer
O-rings
NBR , EPDM, FEP, Kalrez, Chemraz etc.

Size Range 25 mm to 120 mm (.938 inch to 4.750 inch)
Applicable Standards and Approvals ISO-3069-S, ISO-3069C, ASME B73.1, ACS
Variants 150L - Single Screw Clamp Lock Ring
150S - Short Outboard Length
150OS - Oversized Seal Chambers
150QD - Quench & Drain Ports

Designed for upgrading equipment sealed with packing or component style mechanical seals, the 150 single seal makes general industry sealing simple, reliable, and affordable. With a compact cartridge profile designed to fit standard ANSI/ISO process pumps, the seal is engineered to install easily and reliably. The single screw clamp lock ring design (150L) further increases efficiency and reduces installation error.

Chesterton Mechanical Seal 150/150L General Duty Single Cartridge SealChesterton Mechanical Seal 150/150L General Duty Single Cartridge SealChesterton Mechanical Seal 150/150L General Duty Single Cartridge SealChesterton Mechanical Seal 150/150L General Duty Single Cartridge SealChesterton Mechanical Seal 150/150L General Duty Single Cartridge Seal

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
