Specifications
Model Number :
757D
Type :
50418806 1802600845 757D Double Seal Kit for Fristam Pump
MOQ :
5PC
Delivery Time :
20-30DAYS
Certificate :
ISO9001
Price :
Negotiated
Transport Package :
box
Brand Name :
JR
Standard :
Standard
Packaging Details :
box as requirement
Payment Terms :
T/T, Western Union, L/C
Function :
for Oil Pump, Water Pump
Specification :
Fristam Pump Mechanical Seals
HS Code :
848420090
Style :
Pump Mechanical Seals
Certification :
ISO9001
Supply Ability :
100000PC/Month
Material :
SIC SIC FKM CAR CER NBR
Place of Origin :
MADE IN CHINA
Product name :
757D Double Seal Kit for Fristam Pump 30MM
Description

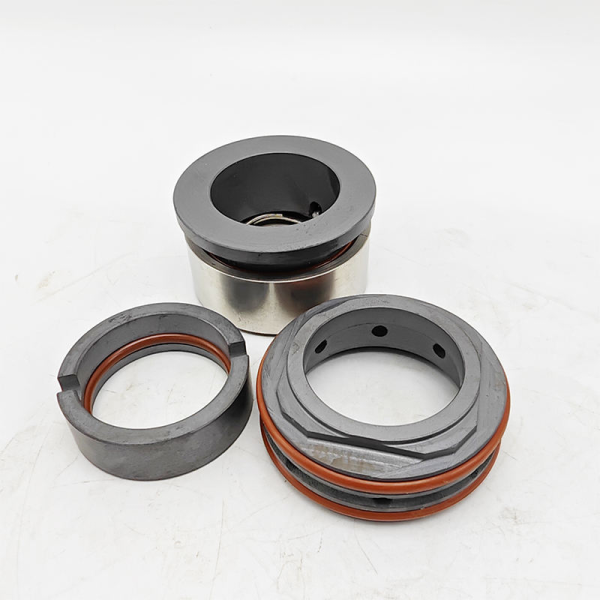

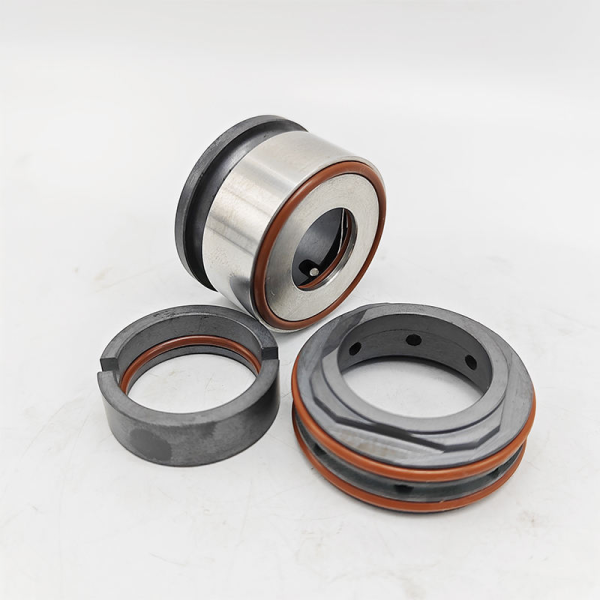

757D Double Seal Kit for Fristam Pump

Operational Conditions:

  • Suit for FRISTAM Pumps
    Temperature:-20℃ to +180℃
    Pressure:≤ 1.0Mpa
    Speed:≤ 15m/s
    Material: B,A1,Q1,Q2,U2,P,E,N,V,F, G,Alfa

Materials:

  • Seal face: Carbon graphite antimony impregnated (A),
  • Carbon graphite resin impregnated (B)
  • Seat Silicon carbide (Q1)
  • Standards and approvals
  • Fristam Pump Mechanical Seals


Performance Capabilities

Fristam Pump Mechanical Seals
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer

30MM
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Part:SS304 SS316

50418806 1802600845 757D Double Seal Kit for Fristam Pump50418806 1802600845 757D Double Seal Kit for Fristam Pump50418806 1802600845 757D Double Seal Kit for Fristam Pump

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
