Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal
Specifications
Model Number :
KB
Function :
Double Mechanical Seal Pump Mechanical Seals
MOQ :
5PC
Delivery Time :
20-30DAYS
Certificate :
ISO9001 CE
Product name :
HIDROSTAL PUMPS seals
Payment Terms :
T/T, Western Union, L/C
Standard :
industrial pump slurry pump Standard
Supply Ability :
100000PC/Month
Style :
Mechanical Seal
Leadtime :
5-10DAYS
Certification :
ISO9001
HS Code :
848420090
Place of Origin :
MADE IN CHINA
Specification Size :
2.500″ / 3.000″ / 95MM / 100MM
Price :
Negotiated
Type :
Equivalent with HIDROSTAL PUMPS seals
Brand Name :
JR
Material :
Carbon, SIC, TC
Packaging Details :
box as requirement
Produce OEM :
Elastomer Mechanical Seal Kb
Description

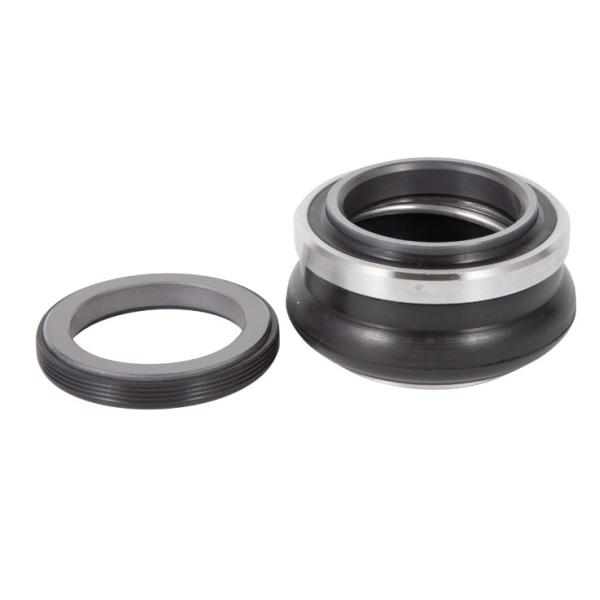

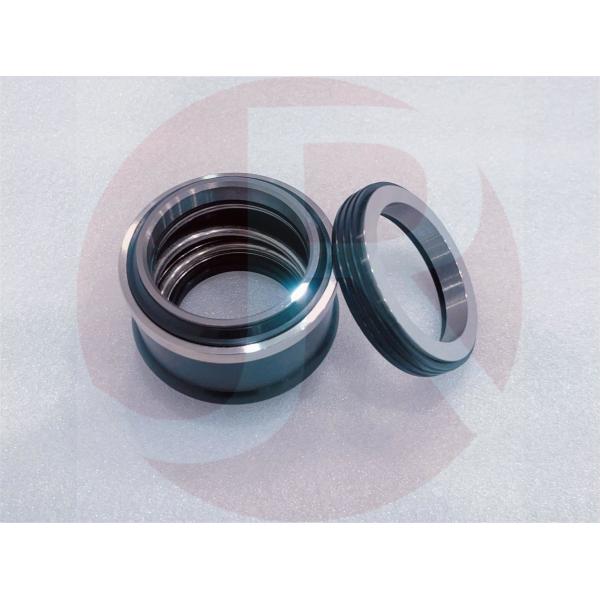

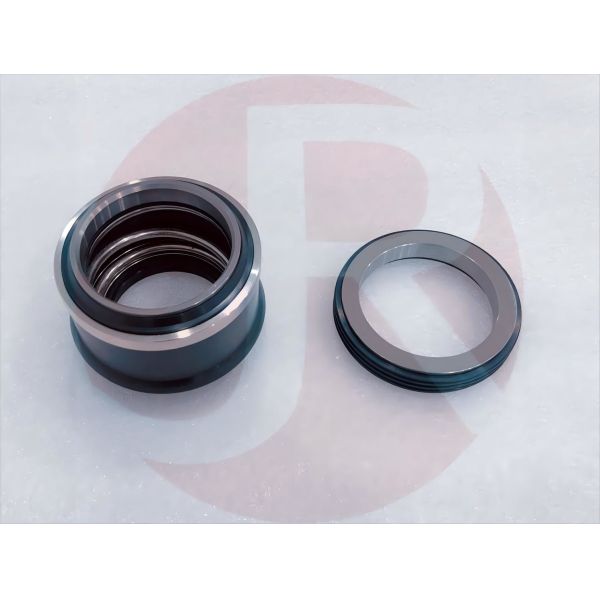

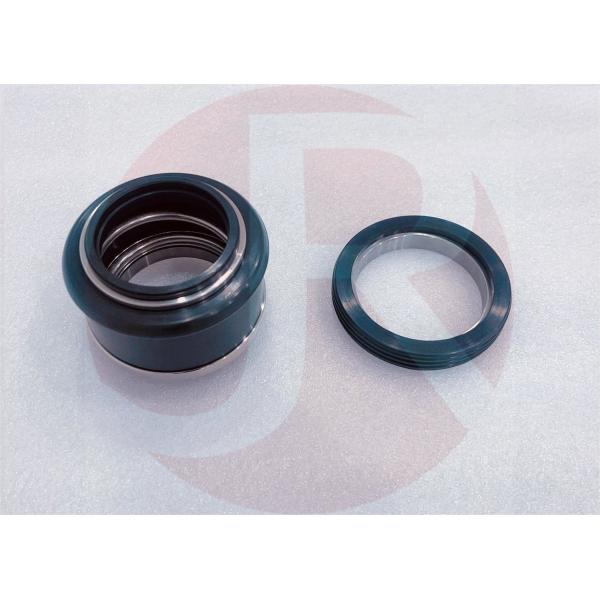

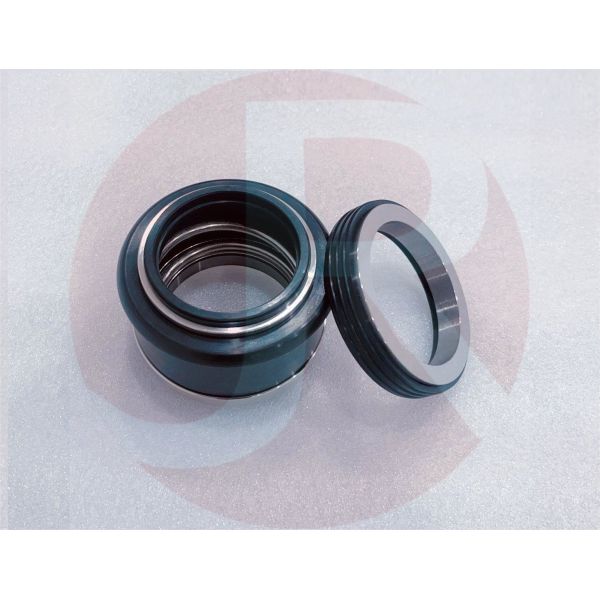

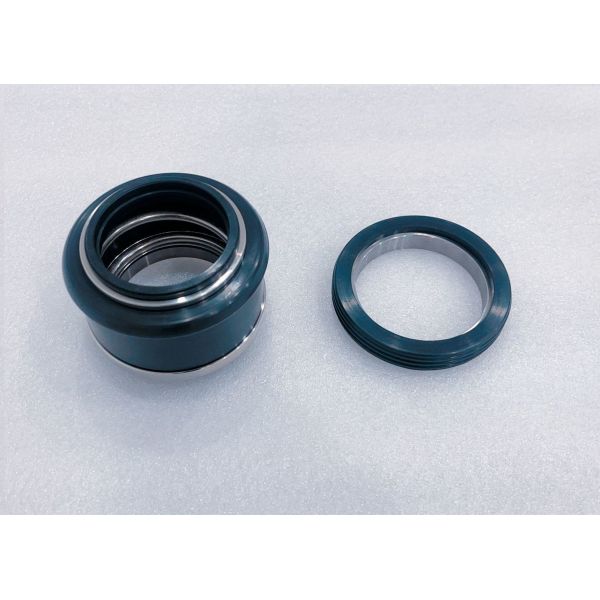

Wemco Hidrostal KB Mechanical Seal Rubber Bellows Seal

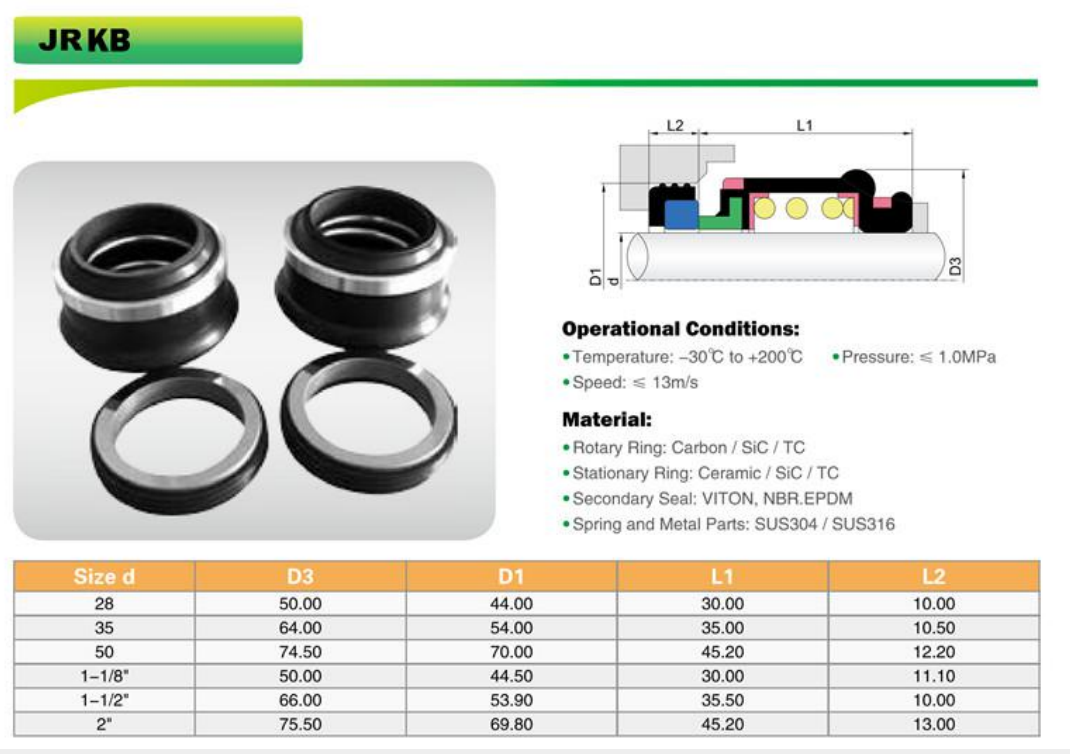

Operational Conditions:

  1. Mechanical Pump Mechanical Seals for Hidrostal Pump Seals

  2. Wave sprung grub screwed 'Thin Cross Section' short working length mechanical seal.

    Available in Food Grade materials as standard (with FDA compliant materials).

  3. Elastomer Mechanical Seal Kb for Hidrostal Pumps Tungsten Carbide Pump Seal Wave spring mechanical seal

  4. Mediums: Water, oil, weak acid, weak alkali, etc.
  5. Temperature: -20°C~200°C
  6. Pressure: ≤0.8MPa
  7. Speed: ≤ 15m/Sec

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel

Performance Capabilities

  • Pump Mechanical Seals F04K-MH /F06K-S/F10K-MD F06K-H /F06K-S H05K-MH /F06K-H
    F04K-MH/ F04K-S F04K-MH /F06K-M F10K-HD
    F10K-MD F10K-HD F10K-SS
    OEM# DESCRIPTION SIZE SAF SEALS#
    157261 LOWER SEAL 1-1/8″ 'M'
    157257 UPPER SEAL 1-1/8″ 'C'
    157262 LOWER SEAL 1-1/2″ 'M'
    157258 UPPER SEAL 1-1/2″ 'C'
    157263 LOWER SEAL 2.000″ 'M'
    157259 UPPER SEAL 2.000″ 'C'
    TYPE 'X' SEALS ALSO AVAILABLE IN THE FOLLOWING SIZES:
    2.500″ / 3.000″ / 95MM / 100MM
    Pump Mechanical Seals compatible for WEMCO-Hidrostal® pumps.
    Type M and Type G and X seals are available.
    Possibility of supplying these special designs for different shaft diameters in inches.
    Equivalent with HIDROSTAL PUMPS seals
    Shaft size:5/8 inch, 1 1/8 inch, 1 1/2 inch,2 inch, 28mm, 35mm and 50mm .

Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal

Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump SealMechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump SealMechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Pump Mechanical Seals Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
