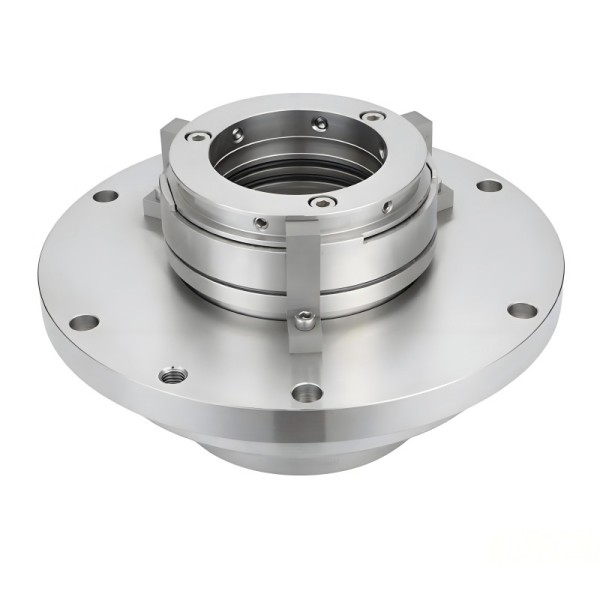

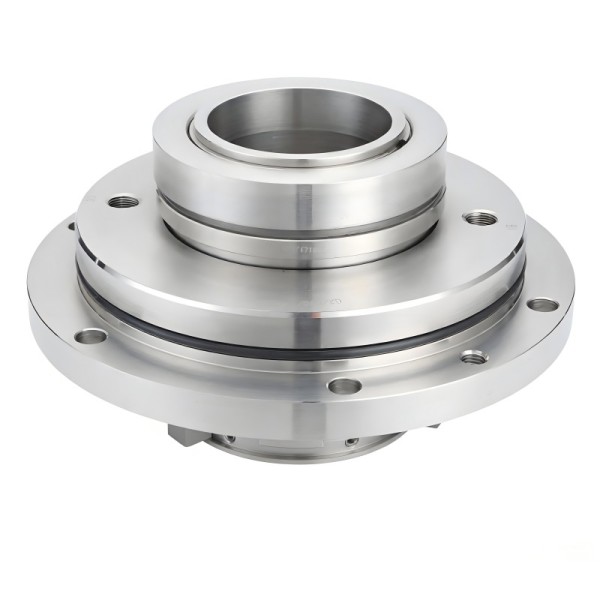

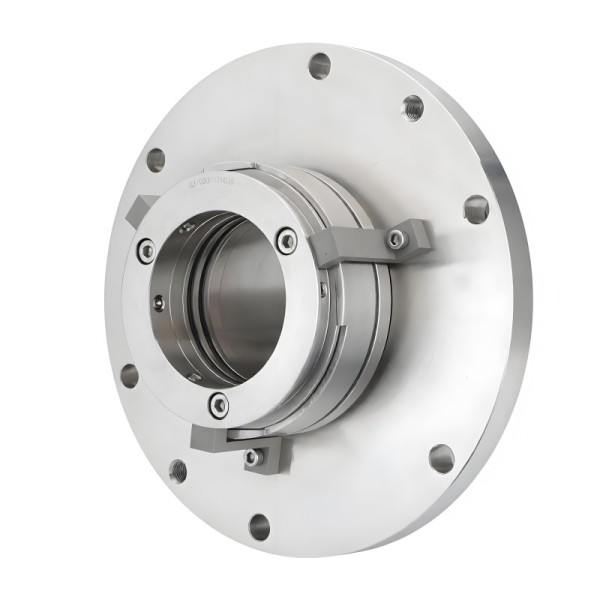

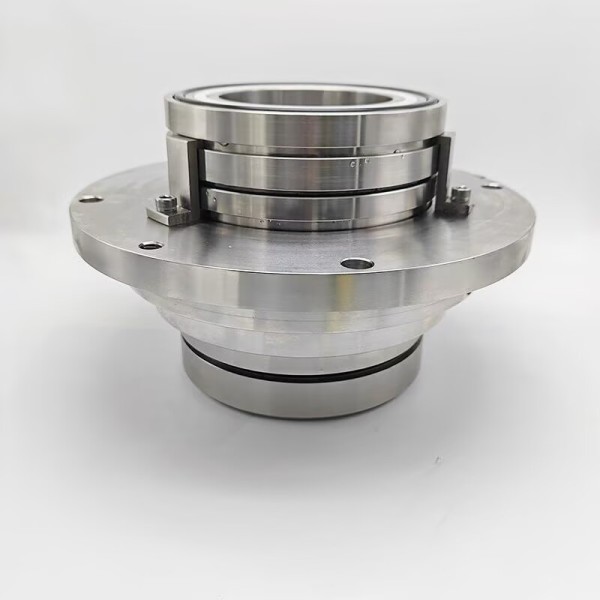

Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Specifications
Payment Terms :
T/T, Western Union, L/C
HS Code :
848420090
Transport Package :
box
Certificate :
ISO9001 CE
Certification :
ISO9001
Supply Ability :
1000PC/Month
Material :
SIC SIC SIC SIC FKM
Function :
for Oil Pump, Water Pump
Model Number :
SAF
Standard or Nonstand :
Standard
MOQ :
100PC
Delivery Time :
20-30DAYS
Specification :
SAF Cartridge Mechanical Seal
Place of Origin :
MADE IN CHINA
Product name :
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane
Price :
Negotiated
Type :
Cartridge Mechanical Seals SAF double mechanical seal
Packaging Details :
box as requirement
Brand Name :
JR
Application :
Double Cartridge Seal
Description
Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane

Operations Conditions:

  1. High-Performance Industrial Cartridge Mechanical Seals Technical Specification
    Operating Parameters
    Applicable Pressure Range: 0 ~ 1.5 MPa
    Working Temperature Range: -40 ~ 180 ºC
    Maximum Allowable Linear Speed: ≤ 20 m/s
    Cooling Water Requirement: The pressure of cooling water shall be 25% higher than the operating pressure of the process medium, which fundamentally prevents medium leakage into the cooling circuit and continuously ensures stable cooling effect on the seal faces
    Maximum Allowable Solid Content: ≤ 15%, enabling stable operation under complex working conditions with particle impurities
    Full Range of Material Configurations
    Cartridge Mechanical SealsCore Friction Pair Faces
    Rotary Ring Face: Both the medium side and the sealing water side are made of SiC (Silicon Carbide) or TC (Tungsten Carbide), featuring ultra-high hardness and excellent wear resistance
    Stationary Ring Face: SiC/TC is selected on the medium side to guarantee corrosion and wear resistance, while resin-impregnated Carbon/SiC/TC can be flexibly matched on the sealing water side, taking into account self-lubricating properties and adaptability to different scenarios​

Materials:

  • Face: Carbon, SiC, TC
  • Seat: SiC, TC
  • rings: NBR, EPDM, FKM, Aflas, FEP, Kalrez, Chemraz etc.
  • Spring: SS316, hastelloy C
  • Metal parts: SS316

  • The type seal can replace with AES type CURC cartridge seal.

Performance Capabilities:

Cartridge Mechanical Seals

Temperature
-20℃ to 150℃, dependent on the elastomer
Pressure
Up to 28 bar
Speed
Up to 25m/s
Performance Capabilities Temperature:-40°C to 220°C, depends on o-ring material
Pressure: Up to 28bar
Speed: Up to 35m/s
End play/axial float allowance: ±1mm
Size
 Sizes: 30mm, 50mm, 55mm,60mm, 65mm, 70mm, 90mm, 110mm, 130mm, 150mm
Brand
JR
Face
Face: Carbon, SiC, TC
Seat: SiC, TC
O-rings:NBR,EPDM,FKM,Aflas,FEP,Kalrez,Chemraz etc
Spring:SS304, SS316
Other Metal Parts : SS304, SS316
Seat
Elastomer
FKM, EPDM, Kalrez
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
Elastic and Metal Structural Components
Cartridge Mechanical Seals Elastomers: Multiple options including Viton fluoroelastomer, EPDM (Ethylene Propylene Diene Monomer), PTFE (Polytetrafluoroethylene) and Aflas (Tetrafluoroethylene Propylene Rubber) are provided, covering different temperature ranges and various corrosive media
Springs: Made of SS316 stainless steel or HC276 Hastelloy, with outstanding corrosion resistance and fatigue resistance
Metal Parts: Optional materials include SS304/SS316/SS316L low-carbon stainless steel, as well as 2507/2205 duplex steel, meeting different strength grades and corrosion resistance requirements
Applicable Medium Scenarios
It can stably adapt to oil products, clean water, sulphite lyes, paper pulp, various acids, alkalis and other industrial solvents, and is widely used in rotating equipment such as pumps in industries including papermaking, fine chemicals and municipal sewage treatment.

Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane​

Double Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John CraneDouble Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John CraneDouble Cartridge Seal O-Ring Pusher Mechanical Seal Type SAF John Crane

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
