Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30
Specifications
Model Number :
Vulcan 1632
Function :
for Oil Pump, Water Pump
MOQ :
1PC
Delivery Time :
20-30DAYS
Specification :
Lidering AB-30 mechanical seal
Payment Terms :
T/T, Western Union, L/C
HS Code :
848420090
Type :
Burgmann MS30/MS32, Lidering AB-30 seal pump
Price :
Negotiated
Package :
White Cartoon Box
Supply Ability :
1000PC/Month
Material :
CAR SS VITON
Size :
20,48,65,80,90,100MM
Brand Name :
JR
Standard :
Standard
Packaging Details :
box as requirement
Certification :
ISO9001
Certificate :
ISO9001 ce
Place of Origin :
MADE IN CHINA
Name :
Vulcan 1632 Water Pump Seal
Description

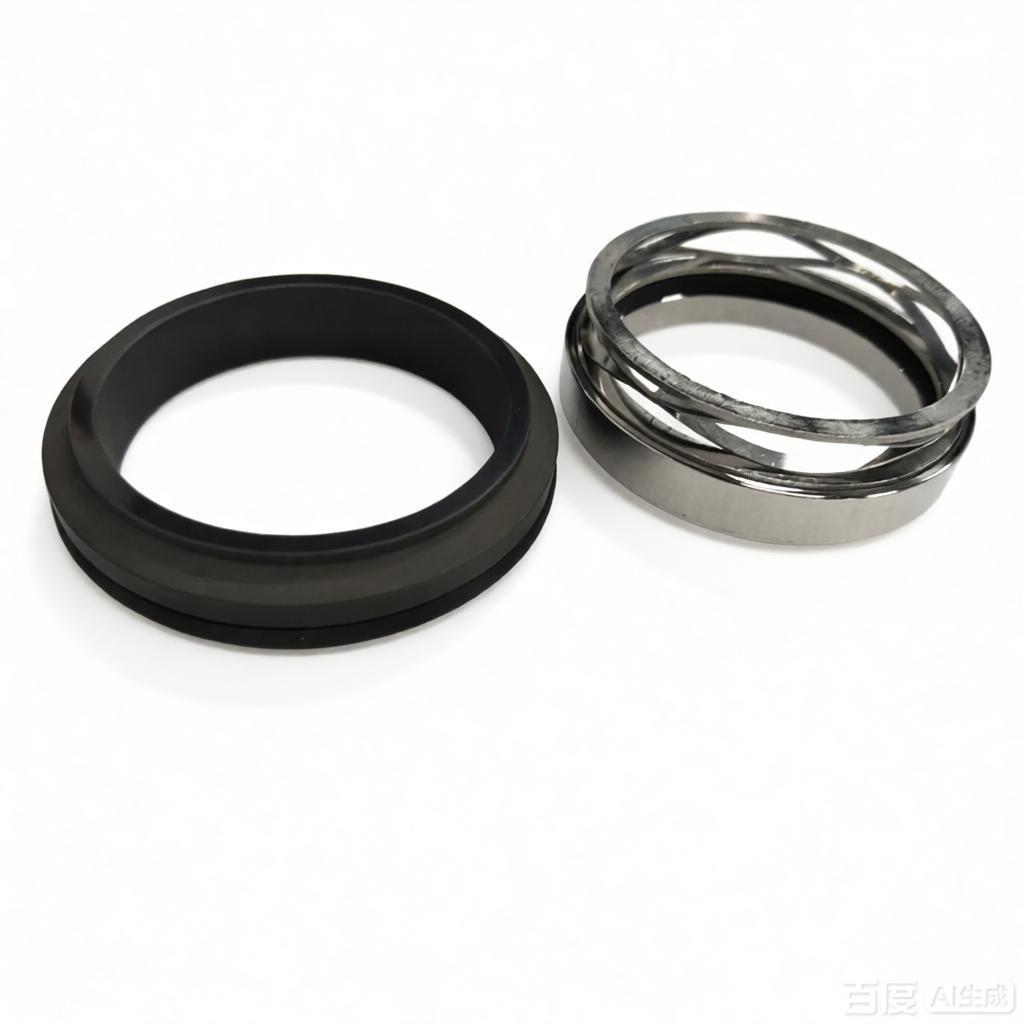

Mechanical Seals Vulcan 1632 AES W14 Burgmann MS30/MS32 Seal Suit For ABS AFP-Series Submersible Pumps

Description:

  1. Type:Suit ABS AFP-Series submersible pumps
  2. Replacement:Vulcan 1632,AES W14,Burgmann MS30/MS32, Lidering AB-30
  3. Temperature:-20℃ to +140℃
  4. Pressure:≤1.2Mpa
  5. Speed:≤15m/s​

2. Materials:

Stationary Ring Material Options‌:Ceramic, Silicon Carbide, TC (Tungsten Carbide)

‌Rotary Ring Material Options‌:Carbon, Silicon Carbide

‌Secondary Seal Material Options‌:NBR, EPDM, FKM, PTFE

‌Spring & All Metal Components Material‌:High-strength Steel

‌Seat Type‌:Customizable to match your specific seal structure requirements, including balanced/unbalanced, single-end/double-end configurations

‌Typical Working Applications‌:Clean water, sewage water, mineral oil, and other moderately corrosive industrial fluids


Performance Capabilities:

Temperature
-20℃ to 180℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
25mm 35mm 55mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Type Vulcan 1632 Mechanical Seal for ABS Afp Pumps

20mm-11100066

48mm-11100058

65mm-11100059

80mm-11100053

90mm-11100055

100mm-11100052

Mechanical Seal Vulcan 1632 ABS Afp Pump Seal Replace AES W14,Burgmann MS30/MS32, Lidering AB-30

d

(mm)
D1
D3
L1
L2

O.E.M.Part

Number
20
52
31
13.5
6.0
11100066
48
67
62
15.8
14.5
11100058
65
86
79
17.8
15.3
11100059
80
104
98
19.5
16.3
11100053
90
114
105
19.5
16.3
11100055
100
123
116
21.0
17.1
11100052

We are a China-based industrial mechanical seal manufacturer headquartered in Ningbo, specializing in the full-cycle supply of high-performance sealing solutions — covering in-house R&D, precision manufacturing, on-site installation, global export and bulk wholesale.

Our comprehensive product portfolio spans the full spectrum of sealing types: Industrial Seals, Single Spring Seals, Balanced & Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals, Cartridge Balanced Seals, Multiple Spring Balanced Seals, Dry Running Reverse Balanced Seals, Agitator Double Acting Unbalanced Seals, Single Conical Helical Springs, Rubber Bellow Seals, Multi Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals, Air Condition Compressor Seals, Auto Cooling Seals and Metallic Bellow Seals.

We also deliver 100% compatible full-series replacement mechanical seals for global mainstream pump brands, including Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang and many more.

Beyond standard catalog products, we offer flexible custom manufacturing services: we can produce precision seals strictly in line with your provided physical samples, technical drawings, or tailor-made design requirements to perfectly match your unique working conditions.

  1. ‌Q: Are you a factory or a trading company?‌
    A: We are a professional manufacturing factory based in Ningbo, China, with our dedicated in-house trade team to provide you with full-chain export and wholesale services.

  2. ‌Q: Can I get a sample before placing a formal order?‌
    A: Absolutely. We offer free samples for most of our standard mechanical seal products, you only need to cover the corresponding shipping cost.

  3. ‌Q: Where is your factory located? How can I arrange a visit?‌
    A: Our factory is situated in Ningbo, Zhejiang, China. You can fly directly to Ningbo Lishe International Airport, or take a 1.5-hour high-speed rail ride from Shanghai Hongqiao Airport to Ningbo. All global clients are warmly welcomed to visit our production workshop at any time.

  4. ‌Q: What is your factory's quality control system?‌
    A: Quality is always our top priority. We implement full-process quality inspection from raw material incoming check, semi-finished product testing to finished product pressure test, and our factory has been certified with ISO9001 quality management system.

  5. ‌Q: What is your usual lead time?‌
    A: For standard products, the delivery time is 10-20 days after we receive your prepayment. For customized OEM/ODM products, we will confirm the exact schedule with you separately.

  6. ‌Q: What payment terms do you support?‌
    A: For small sample shipping fees, both PayPal and T/T are acceptable. For bulk formal orders, we support T/T at sight as the main payment term.

  7. ‌Q: Do you support OEM and ODM services?‌
    A: Yes, we provide full-range OEM and ODM services. We can produce seals strictly according to your provided samples, drawings, or customized design requirements.

  8. ‌Q: Can I purchase complete pumps or other pump spare parts from you?‌
    A: Sure, besides mechanical seals, we also supply a full series of pumps and related pump parts, including lobe pumps, compound homogeneous pumps, homogeneous emulsification pumps, and other matching accessories.
