Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Specifications
Place of Origin :
Henan, China
Brand Name :
FRP tube antenna
Model Number :
fiberglass antenna tube
Application :
insulated antenna tube
Surface Treatment :
smooth
Technique :
pultrusion
Processing Service :
Cutting
Material :
FRP
Length :
1m to 11.6m
color :
as requirement
MOQ :
1000 meters
Price :
$2.50/meters >=1000 meters
Description
Product Description

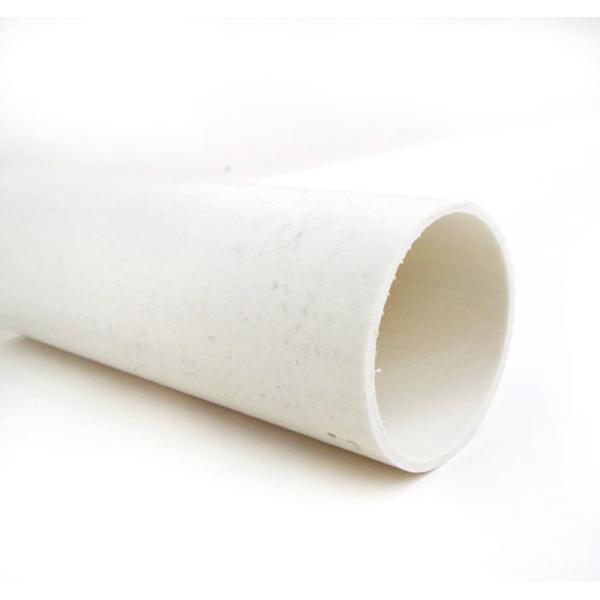

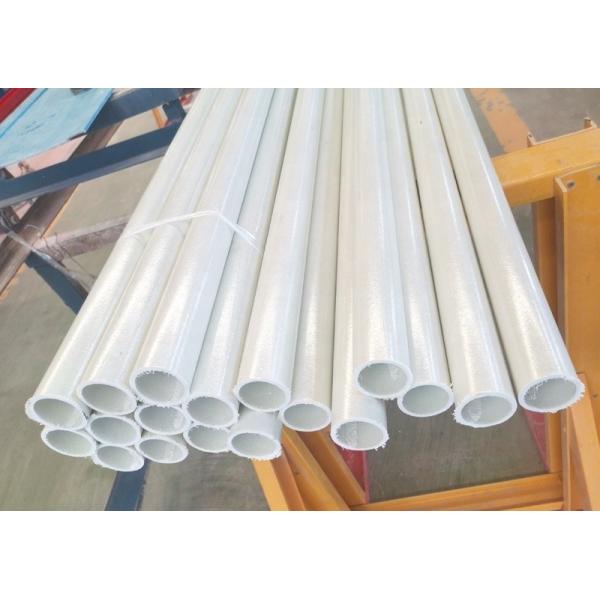

FRP (Fiber Reinforced Plastic) antenna tubes are antenna support structures made of fiber-reinforced plastic. They are used to support and install antenna equipment.

l Raw Materials: o-type resin, ISO resin, vinyl resin.

l Process: Pultrusion, assembly

l Color: no limitation

l Length: no limitation

l Thickness: from 2mm to 50mm

l Diameter: 2mm ~ 50mm & Custom

Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique

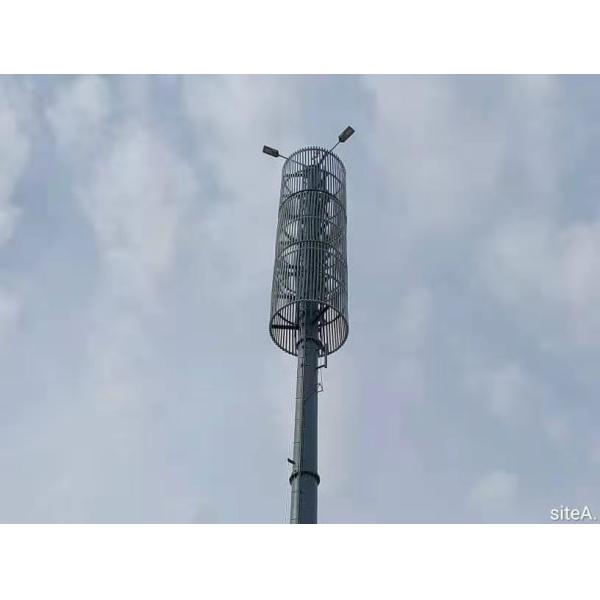

FRP antenna tubes, with their lightweight, durability, corrosion resistance, and electromagnetic transparency, have become essential materials widely used in antenna support structures, providing reliable support and installation solutions for the telecommunications and communications industries.

Except FRP round tube, FRP channel also could used for antenna covering

Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion TechniqueLightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique

Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique

FRP profiles as antenna covering adantages

  1. 1. Lightweight and Durable:

  2. lighter than metal counterparts but still offer sufficient strength and durability to support antenna equipment and withstand environmental factors.

  3. 2. Corrosion Resistance:

  4. Compared to metal, FRP materials are resistant to corrosion, ensuring structural integrity even in humid and rainy conditions, thus prolonging their lifespan.

  5. 3. Electromagnetic Transparency:

  6. FRP materials have good electromagnetic transparency, meaning they do not interfere with signal transmission, thereby enhancing antenna performance and reception.

  7. 4. Ease of Processing:

  8. FRP antenna tubes are easily processed, allowing for cutting and connection according to antenna equipment requirements, facilitating installation and adjustment.

Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique

other FRP channel specification list
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique

FRP Channel(mm)
18x10x2.5 20×15 50x32x5 50x25x2.5
55x25x3.5 55x28x4 50x26x3.3 50x32x5
63x30x3 70x26x3.5 70x30x3.8 70x30x4.5
76.2x25.4x6.35 79x28.5x3 80x25x3 80x30x3.5
80x30x3*5 80x30x4.5 84x30x4 84×30×3.8×4.5
84x30x3.5x5 88x35x5 94.5x20x2.8 100×65×4.6
110×30×4.6 180x50x6 180x50x8 200×100×4.6
210×30×4.6 300×150×5.6 312×50×5.6
FRP channel profiles Applications:
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.

2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.

3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion resistance.

4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc.

5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.

6. Marine Engineering: Suitable for marine platforms, ship components, etc.

7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc.
FRP channel profiles materials and production
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Packing and Shipping
Packing way: FRP profiles generally take use woven bag packing, pallet, cartons, iron frame, etc.
Shipping way: express (length not over 2.5m), air shipping, sea shipping, land shipping, railway, etc.
Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
FAQ

Other names

FRP antenna cover, fiberglass antenna cover, insulated antenna radome, antenna tower profiles.

Resin type

Ortho-type resin, ISO resin, Vinyl resin and Phenolic resin, advise us the tube application or work environment, we will recommend proper raw materials to customer

Colors

white, grey, yellow, red and orange are popular, could make as requirement

Lengths

0.2m to 11.6m, made as customer's requirement

MOQ

1000 meters or 1000kgs.

Lead time

if order smaller than 5000 meters, lead time is 7 to 15 days

Processing

Cutting, drilling, log painting, etc

Samples

Small quantity samples are free, customer need afford sample shipping cost

Goods warranty

1 to 2 years, different product warranty is not total same.

Shipping

FRP profiles max length for 20' container is 5.85m and 11.6 for 40' container, could contact us for shipping cost checking
