Specifications
Brand Name :
NANYA
Model Number :
YC042Z
Certification :
CE
Place of Origin :
Guangdong China(Mainland)
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T or western Union or L/C
Supply Ability :
50 sets per month
Delivery Time :
Normally 120 days
Packaging Details :
Export Standard Packing
Product Name :
Tableware Forming Machine
Machine Type :
Pulp Molding Machine
Automation :
Automated
Forming Type :
Dry and Cut in Mold
Raw Material :
Sugarcane Pulp/ Clean Paper Pulp
Warranty :
12 Months
Installation :
Engineer Available Abroad Service
Heating Fuel :
Electricity or Thermo Conduction Oil
Production :
Disposible tableware, paper plate,food box
Dimension(L*W*H) :
Depends on final production line
Description

Sustainable Tableware Sugarcane Automated Pulp Molding Machine

Brief Introduction of this Production Line:

The Z series pulp molding production line is the first fully servo-controlled automatic pulp molding product production equipment developed by our company. It integrates the forming, drying and shaping, trimming, and stacking processes into a single production line. Qualified pulp is sent into the machine, and the finished products can be automatically produced. The equipment has a high degree of automation and high production efficiency.


This machine is suitable for producing pulp molded tableware (various fast food boxes, dishes, bowls, etc.) and high-quality wet-pressed pulp mold products (such as fine packaging, decorative materials, handicrafts, etc.)

Main Parameters:

Model Type

YC042Z
Forming Machine Quantity 1 set

Mold plate size

1300×1100mm, one forming postion and two hot pressing positions.

Maximum product height

80mm
Raw Material Sugarcane pulp/clean paper pulp

Electrical control method

international brand PLC, touch screen

Maximum working pressure

 100tons

Cycle time

 40-90s

Forming Type

Vacuum suction

Drying Method

Drying in mould

Main Features:

Automation Full automatic pulp molding tableware production line(forming/drying/pressing/trimming integrative machine)

Control

All the operations of this equipment are achieved through pneumatic control system and electrical control system for automatic control. The product thickness, weight, moisture content and other indicators can be adjusted as needed. It can meet the production requirements of various different thickness products.
Fuel Consumption Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler.
Environment Impact No waste water or waste air will be discharge during running.
Final Products Food grade and 100% biodegradable and environmental friendly.

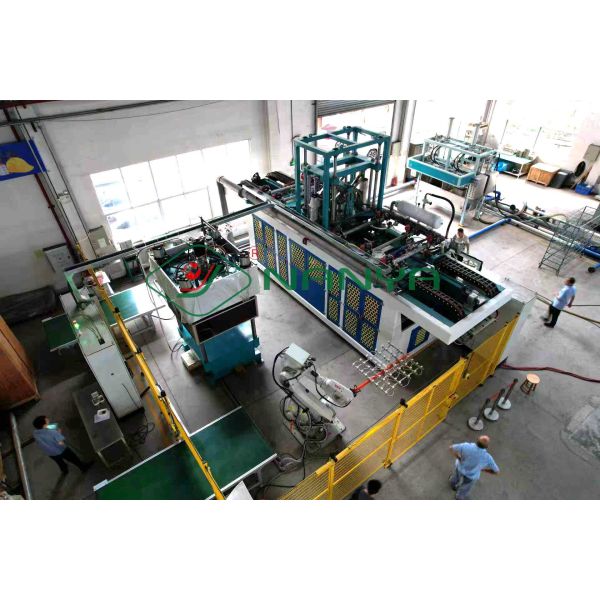

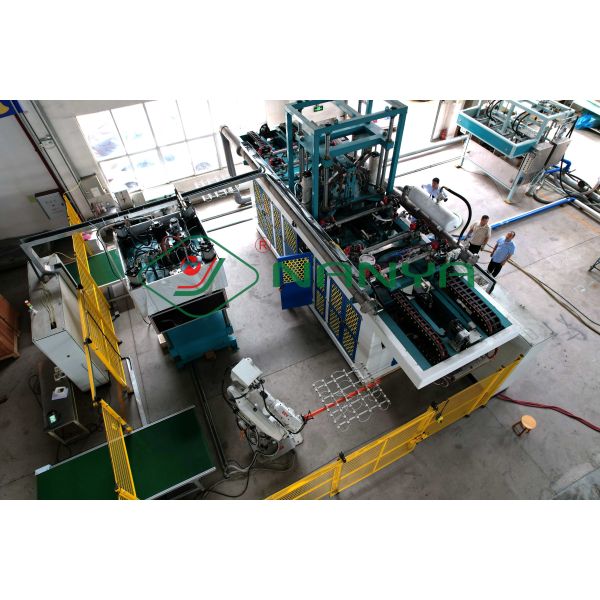

Main Machine Picture:

Sustainable Tableware Sugarcane Automated Pulp Molding Machine

Flow Chart Explanation:

Pulping System: Clean virgin paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.

Forming And Hot-Pressing System (with the function of forming, drying, hot pressing): The pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; finally products will be transferred for trimming.

Vacuum System: Supply vacuum for forming machine.

Air Compressor System: Supply compressed air for forming machine.

Cementing Machine & Laminating Machine: Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines.

Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.(Optional for automatic forming machine)

Disinfect System: UV or microwave disfect, then go to package.

Finished Products:

By changing moulds, the same machine can make different products
Tableware Products tableware, catering ware, pulp molded plate, paper bowl, food containers, saucers, cups,food containers and etc
High-end quality packages Mobile phone package, camera package, makeup box,

Sustainable Tableware Sugarcane Automated Pulp Molding MachineSustainable Tableware Sugarcane Automated Pulp Molding Machine

Business terms:

NO.

ITEM

DESCRIPTION

1

Delivery Port

Guangzhou or Shenzhen, China.

2

Delivery Time

Normally 120 days

3

Packages

Export standard packing

4

Installation

Appoint 1or 2 engineers to instruct buyer for installation, test-run and training.

5

Warranty

Life-long service, one year warranty( three year warranty for main machines)
