High Efficiency Pulp Molding Machinery for Industrial package
High Efficiency Pulp Molding Machinery for Industrial package
High Efficiency Pulp Molding Machinery for Industrial package
High Efficiency Pulp Molding Machinery for Industrial package
High Efficiency Pulp Molding Machinery for Industrial package
High Efficiency Pulp Molding Machinery for Industrial package
Specifications
Brand Name :
Nanya
Model Number :
CY010
Certification :
CE/TUV/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Cash or western Union
Supply Ability :
20 Sets Per Month
Delivery Time :
45-75 Days
Packaging Details :
Export Standard Packing
Product Name :
Pulp Molding Machine
Capacity :
100-150kgs / H
Processing Material :
Waste Paper / Wood pulp / bagasse pulp / Bamboo pulp / Straw pulp
Forming Type :
Vacuum Suction
After-sales Service Provided :
Engineers Available to Service Overseas
Standard :
CE/TUV/SGS/ISO9001
Applicationa :
Industrial package
Voltage :
220 V - 450 V
Description

High Efficiency Pulp Molding Machinery for Cup Holder



Specifications:

Model Type

CY010

Capacity

 100-150kgs/h

Hydrapulper

1.5m3

Forming Machine

Plate Size 800*600mm*2

Workshop Requirement

 Length≥30m Width≥15m

Power installation

115kw

Power consumption

70-80kw

1. For different capacity, customized allocation can be made according to the clients’ requirement.
2. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.


The Items Must Be Prepared before Installation

1

Workshop, foundation of the machine, Drain ditch in the workshop.

2

Raw Material supply system; include Pools or tanks for pulp making system (3 x 4M3).

3

Power supply, water supply.

4

Tools and consumable materials needed during the installation.

5

The quotation does not including drying machine.

The customer should prepare halftones and trolleys for air-cure the product.


Descriptions:

  • This is a semi-automatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
  • The production line can be applied to making coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
  • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • Electrical control parts, Pneumatic control parts.
  • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
  • The formed products can be dried by drying product line, drying house or under the sunshine directly.
  • There are diversified devices allocations for different specifications.


Production Information and Our Warranty:

  • Status: Brand New
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: CY010
  • Voltage: 220V - 450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas

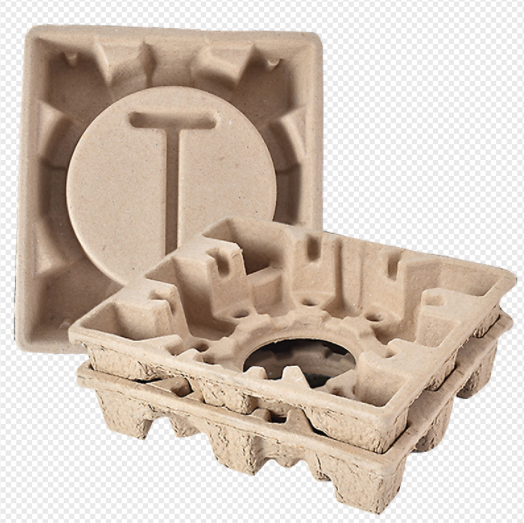

Applications:

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

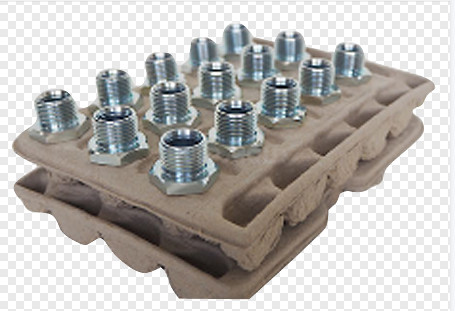

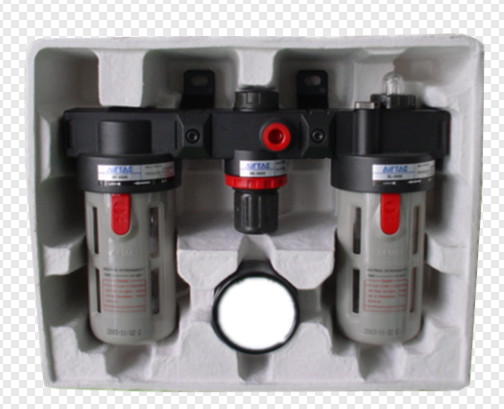

packages

Shoe tree, industrial package…
High Efficiency Pulp Molding Machinery for Industrial package


Competitive Advantages:

  • Semi-antomatic production line
  • Servo motor is applied
  • Energy saving and labor utilization
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 30 years experience in this field, Chinese reliable supplier, supported by the government and university
  • The standing director of Chinese packaging association


Business Terms

NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD150/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service
  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date

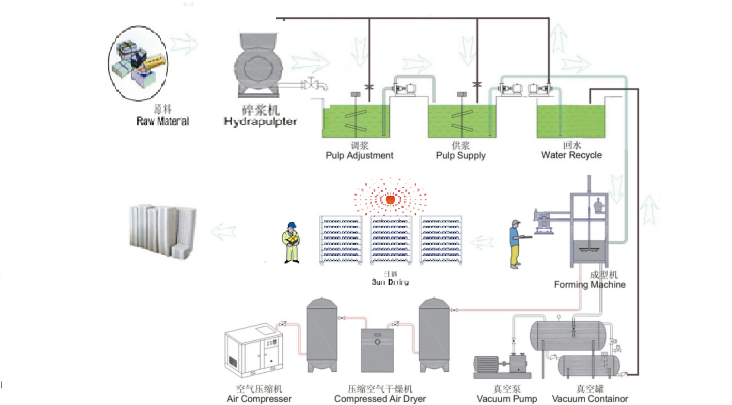

Work Flow:
High Efficiency Pulp Molding Machinery for Industrial package
