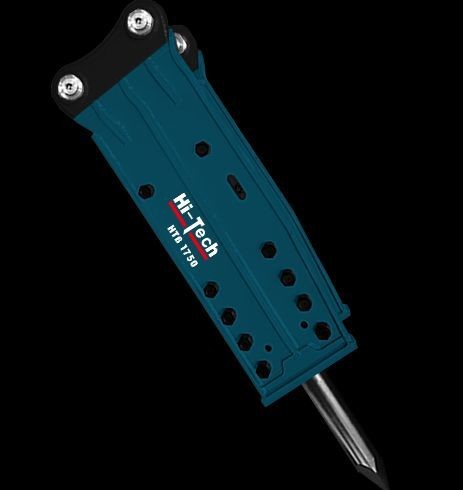

Top Type Breaker HTB1750
Top Type Breaker HTB1750
Specifications
Description

Top Type Breaker HTB1750

INTRODUCTION

Suitable for any construction site, high quality and durable

1. Adopt the shortest piston oil channel to reduce recoil

2. Adjust the strike energy according to the hardness of the material

3. Low noise and low failure rate



Top Type Breaker HTB1750

VIDEO GALLERY

ENGINEERING CASE

Top Type Breaker HTB1750
Top Type Breaker HTB1750
Top Type Breaker HTB1750

SPECIFICATIONS

PARAMETERPARAMETER VALUE
WEIGHT（kg）4132
LENGTH（mm）3410
DRIVING OIL PRESSURE（kg/cm²）160～180
DRIVING OIL QUANTITY（l/min）210～290
BEAT FREQUENCY（bmp）200～350
DRILL ROD DIAMETER（mm）175
EQUIPPED VEHICLE WEIGHT（ton）40～55
