Specifications
Brand Name :
D&T
Model Number :
DTC-F1212
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1set
Price :
USD15000-80000/SET
Payment Terms :
T/T,L/C,Paypal
Supply Ability :
20 Sets Per Month
Delivery Time :
30days
Packaging Details :
PVC and wood package
Item :
automatic fast wire foam cutter
Type :
DTC-F1212K
Product Size :
3000*1200*1200mm
Cutting Line Diameter :
1.0-1.5mm
Control System :
Industrial Computer
Precision :
±0.5mm
Weight :
1200kgs
Overall Dimension :
6200*2400*2380mm
Colour :
customized
Description

Rigid Pu Foam Cutting Machine Fast Wire Foam Cutter For Cutting PIR PUR 2D Or 3D Shapes


Specification


Ideal Materials: Rigid and flexible PU, rock wool (mineral wool), phenolic foam, EVA, PIR, PUR, foam glass fireproof panels, EPS, PVC, and other rigid foam materials.

Key Benefits:

Full Computer Control: All cutting movements are precisely computer-controlled, significantly reducing labor requirements and boosting production efficiency.

Resource Efficient: Minimizes power and material consumption.

Optimized Cutting: Utilizes CAD drawing input and automatic nesting software to maximize material savings.

User-Friendly: Simple to operate and learn.

Reduced Downtime: Features automatic wire breakage protection to prevent unexpected cutting interruptions.

Low Maintenance: Minimal vulnerable parts and cost-effective upkeep.

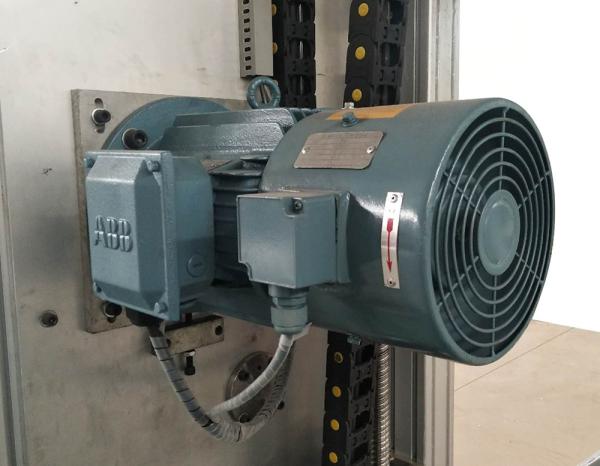

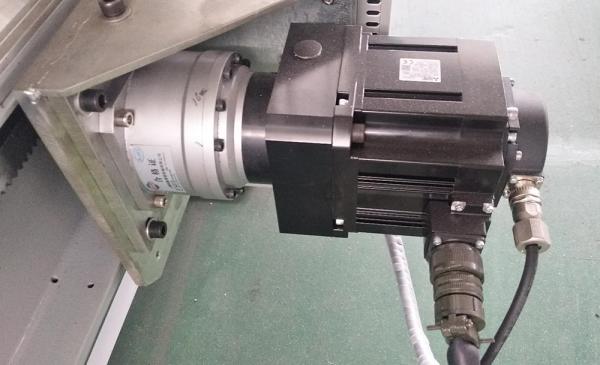

Premium Components: Equipped with imported main motor, servo motors, and pneumatic parts to ensure high quality and reliability.

Adjustable Height: Cutting height is easily adaptable to accommodate different product dimensions.


Technical Data


Type DTC-F1212k DTC-F2012K
Max. Product Size 2500*1200*1000(mm) 2500*2000*1200(mm)
Cutting Line 1.3~1.5mm 1.3~1.5mm
Control System Industrial Computer Industrial Computer
Software D&T Profiler D&T Profiler
Cutting Speed 0~10m/min 0~10m/min
Precision ±0.5mm ±0.5mm
Power <5.5kw <6.5kw
Vacuum De-dust Included Included
Overall Weight 1200kg 1500kg
Overall Dimension 4800*2400*2380mm 4800*3200*2800mm

Rigid PU Foam Cutting Machine for PIR PUR 2D 3D Shapes
Our Services


1. Our engineers can go abroad to coordinate installation, commissioning and training.

Airfare and suitable accommodation plus USD 60 per person per day

Additional charges.


2. Free maintenance for life.


3. Our factory provides free training courses.


4. 24 hours online service, free technical support.


5. The machine has been adjusted and tested before leaving the factory.



FAQ


1. Q: Are you a factory?


A: Yes, we are a manufacturer and have been producing foam machines since 2006.


2. Q: What drawing software do you use?


Answer: Automatic CAD.


3. Q: Can your engineer come to our factory to install the machine?


A: Yes, of course.


4. Q: Can I import DXF files from other sources?


Answer: Yes. Any DXF file is acceptable.


5. Q: Another express machine has a dust filter. Does this machine also have a vacuum function?


A: Yes, it is included.


6. Q: Which countries do you sell to?


A: Canada, Mexico, Brazil, Australia, Singapore, Malaysia, United Arab Emirates, Yemen, Qatar, Algeria, etc.


7. Q: What security controls are on the machine?


A: There are emergency stop devices on the control box and the machine to prevent unexpected shutdown.


There are two fences around the cutting frame and the machine will stop when you open the fences.
