Specifications
Conductor Material :
Tinned Copper
Insulation Material :
ETFE Insulated
Rated voltage :
600V
Model Number :
FF40-1
Brand Name :
Sanco cable
Place of Origin :
Hunan, China
Application :
For Electrical equipment, For Electrical appliance
Conductor Type :
Stranded
Type :
Insulated
Product name :
Tin Coated 10 AWG ETFE Electric Wire Manufacturer
Wire gauge :
10 AWG etc.
Temperature resistance :
-65~+150℃
Conductor materials :
Tin coated
Insulation :
ETFE insulation
Feature :
Radiation resistance
Color :
9 colors
Sample :
Freely Sample
Service :
Accept OEM/ODM
MOQ :
100
Description

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Product Description

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Application for ETFE electric wire

1. Aviation Wiring
2. Aerospace Wiring
3. Nuclear Cables
4. Electronics Wiring
5. Medical Wiring
6. Appliance Wiring

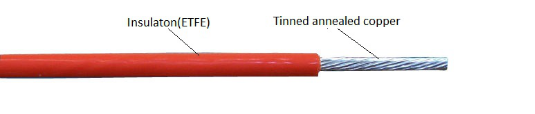

What is ETFE electric wire

ETFE wire is fluorine plastic insulaiton wire with xcellent mechanical strength and toughness;Good resistance to heat and chemicals;High specific dielectric strength and Oil, flame, and radiation resistance

Properties of Tefzel Wire

Nominal Voltage: AC 600V
Temperature Range: -65ºC to 150ºC
Conductor: Tinned copper
Insulation: Tefzel ETFE Insulation
O.D.Tolerance :±0.05mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-transparent.ect

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Wire gauge Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Reference OD
(mm)
Max. Conductor resistance at 20℃
(Ω/Km)
Reference weight
kg/km
FF40 FF40P11-1 FF40 FF40P11-1
26awg 0.14mm2 19/0.1 1.02 1.52 136 2.66 6.64
24awg 0.2mm2 19/0.12 1.14 1.64 90.4 3.82 8.17
22awg 0.4/0.3mm2 19/0.16 1.32 1.85 53.1 5.48 10.4
20awg 0.6/0.5mm2 19/0.2 1.52 2.02 32.4 7.98 13.5
- 0.75mm2 19/0.23 1.7 2.2 24.6 9.99 16.1
18awg 1mm2 19/0.26 1.8 2.3 20.4 11.7 18.1
16awg 1.2mm2 19/0.28 2.01 2.51 16.6 14.8 21.8
- 1.5mm2 19/0.32 2.25 2.75 12.7 18.2 25.9
14awg 2mm2 19/0.36 2.36 2.86 10 22.2 30.3
- 2.5mm2 37/0.37 2.78 3.31 7.43 30.4 39.9
12awg 3mm2 37/0.32 2.9 3.43 6.63 33.6 43.4
- 4mm2 37/0.37 3.38 3.91 4.88 45.4 56.7
10awg 5mm2 37/0.4 3.53 4.06 4.13 52.2 64
- 6mm2 37/0.45 4.05 4.58 3.3 65.6 79

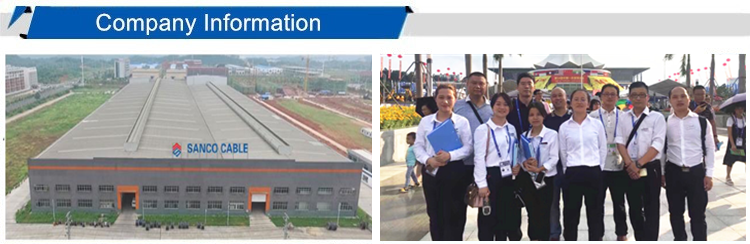

Company Informations

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Factory

Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products:

1.High temperature wires,PTFE wire,ETFE wire,PFA wire,FEP wire

2.Robot cable,TPE cable,PUR cable,TPU cable

3.Hook up wire,electronic wire

4.Control cable,power cable and so on

Team

To meet customer's demand,we have:

1.Advanced R&D staff

2.Professional transport team

3.High-quality engineering installtion team

4.Professional talented technicians group

5.International sales department:6 person

6.Domestic sales:15 person

7.QC team

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Workshop

1.Production line:9 line

2.Month production capacity:90000m

3.Production workers:about 250 persons

3.Annual production capacity:RMB20million

4.Advanced electrical,chemical and mechanical properties test equipment

Warehouse

More than 600 square meters finished product warehouse.T

The cable materials produced by ourselves.

1.Low smoke zero halogen compounds

2.Xlpe compound

3.Soft PVC compound for cable insulation or sheath

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Product test

We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.

Our Customer

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Why Choose us

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Awards and Merits

We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:

No.

Item

Faulty Products

Our products

1.

Length

Insufficient length

Sufficient

2.

Wire drawing

thick at both ends and thin in the middle

Same from beginning to end

3.

Conductor

copper clad aluminum ,Copper clad brass

99.999% pure copper

4.

Insulation

Recycled compound

Virgin compound

If you want to know how to identify,welcome click here

Our Service

1. Free technical consultation service before, during, and after sales,help customers to choose right product

2. Free sample and design services

3. Fee service for any special monitor and conduct detection during manufacture process

4. Provide 100% free insurance for internal transportation;

5. Accept OEM/ODM

6. Small MOQ

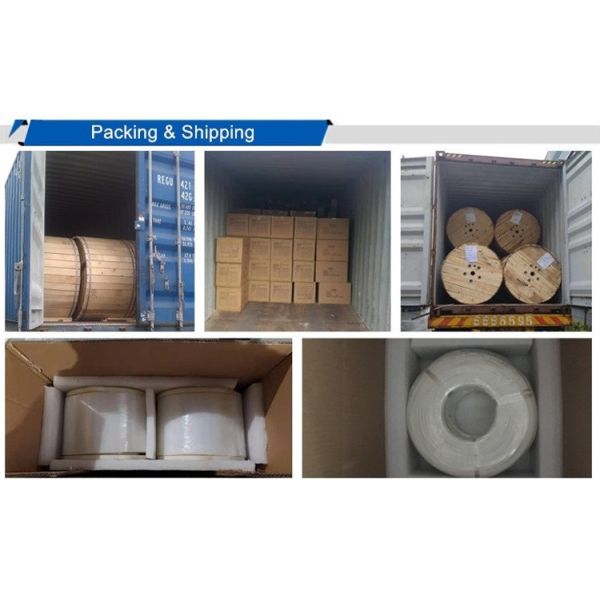

Packing & Shipping

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

Packaging of Tin Coated 10 AWG ETFE Electric Wire Manufacturer

1• Plyethylene film winding in roll with non-woven bag or carton box

2• Packing in carton box with plastic tray

3• Wooden drums,fumigated wooden drums,Wooden iron drums

• We can supply fumigation package and certificate.
• Shipping by air, train, express or upon clients' demands.
FAQ

Tin Coated 10 AWG ETFE Electric Wire Manufacturer

1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience in special wire field,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
